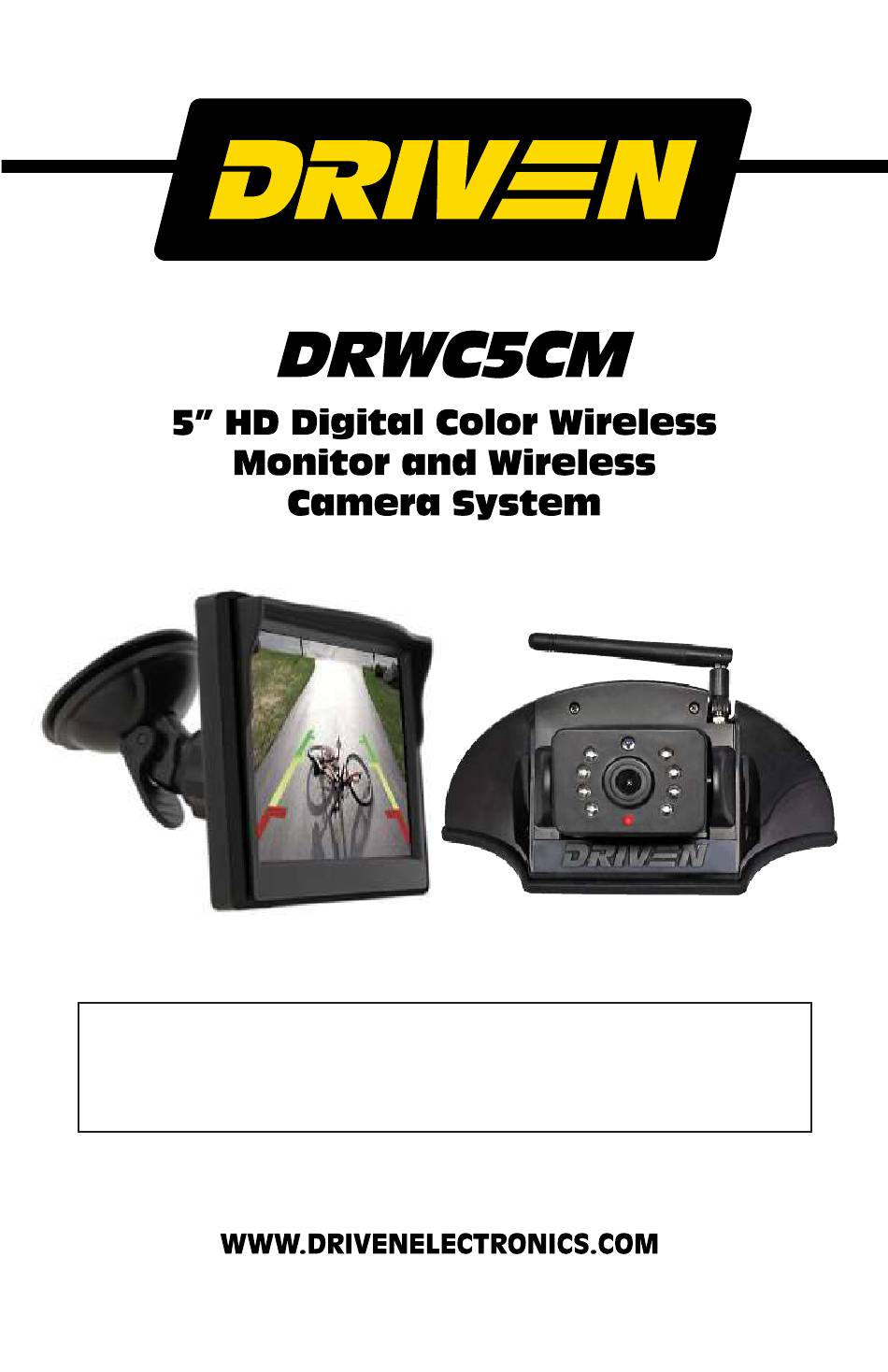

- Page 1 Installation Instructions | Owners Manual Due to continuous improvement of the product, specifications are subject to change without notice.
- Page 2 Congratulations on purchasing the Driven™ DRWC5CM wireless reverse camera system. This system uses the latest technology available to ensure that it is durable, reliable and can provide a clear image of the view behind your vehicle while reversing. This product uses the latest digital technology to ensure durability and simple DIY installation.
- Page 3 Please familiarize yourself with these instructions before starting your installation. MONITOR INSTALLATION 1) Find a suitable location on your dashboard or window screen for your monitor. Please ensure it is in a location where it is easily viewable and does not disturb your vision of the road while driving. 2) Clean the location that you have decided to place the monitor to ensure that it is dust and grease free ( it is recommended to use alcohol wipes to do this)
- Page 4 ADJUSTMENT AND CAMERA PAIRING SETTINGS After camera and monitor has been successfully paired, hold the K3 button for 3 seconds to toggle reversing lines on the screen. This is shown in the picture: K1: In Menu Mode use K1 as UP function, when not in Menu Mode K1 will Turn on/off Scale Lines.
- Page 5 PICTURE: In Menu Mode select Picture and hold K2 for 3 seconds to confirm Picture Image Adjusting. MIR-FLIP: In Menu Mode select MIR-FLIP and hold K2 for 3 seconds to confirm Image Reverse Mode.
- Page 6 Once the camera is powered up, follow the pairing instructions provided with the DRIVEN DRWC5CM wireless monitor. Align the camera and test the angle of the view. Make sure to adjust the angle several times to check your options. Once you have chosen the specific angle for the camera you are good to go.
- Page 7 NOTES...
- Page 8 In Driven’s judgment, products that show evidence of having been altered, modi ed or serviced without Driven’s authorization, will be ineligible under this warranty. To Obtain warranty service please contact your retailer or visit our website at www.drivenelectronics.com...
