Summary of Contents for ADX XBOX AXBOXCS22

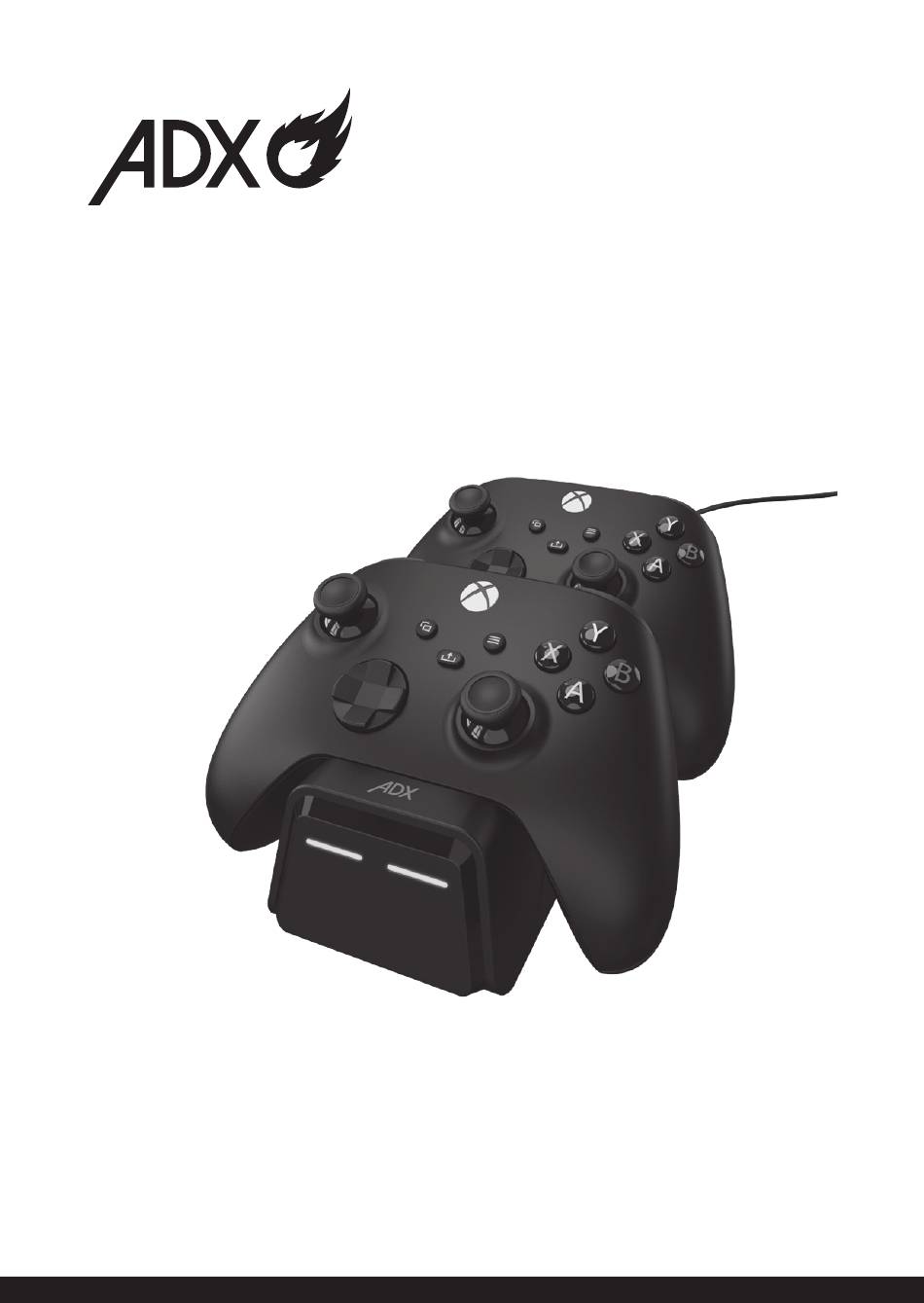

- Page 1 ® XBOX DUAL DOCKING STATION INSTRUCTION MANUAL AXBOXCS22 NOT INCLUDED Xbox® One / X / S Controller...
-
Page 3: Table Of Contents
Contents Safety Warnings ....................3 Unpacking ....................... 7 Product Overview ................... 8 Top View ..........................8 Side View ..........................8 Charging the Controller(s) ................9 Charging Indicator ..................11 Maintenance ....................11 Hints and Tips....................12 Specifications ....................12 Charging Station......................12 Battery ..........................13... -
Page 4: Safety Warnings
Safety Warnings • Do not drop the product or • Read all the instructions carefully subject it to undue shock. before using the unit and keep them for future reference. • This product contains small parts. Keep out of reach of children. •... - Page 5 Battery Pack While in use • The battery pack will generate • Unwind the cable to its full heat when charging. Always length. charge in a well ventilated area. • Never wrap the cable around the Do not charge under pillows, unit, or coil it together or leave blankets or on flammable it tangled.
- Page 6 work temporarily, even when the This unit is designed for battery is fully charged. Battery indoor use only. performance is particularly This equipment is a Class limited in temperatures well II or double insulated below freezing. electrical appliance. It • If you plan to store your device for has been designed in longer than six months, charge such a way that it does...
-
Page 7: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 8: Product Overview
Product Overview Top View LED Charging Indicators (Charging Dock A) LED Charging Indicators (Charging Dock B) Charging Connector Connecting Cable Side View Charging Dock A Charging Dock B... -
Page 9: Charging The Controllers
Charging the Controllers 1. Connect the Charging Station to your Xbox® console (not included) or USB charging device (not included). The indicators show green and then red light Charging Station Xbox® console USB Charging Device (not included) (not included) Use a standard USB adaptor (5V, 1A or above) for charging. 2. - Page 10 3. Place the Battery Compartment Cover (Xbox one or Xbox X / S) on the battery compartment. Battery Compartment Cover Battery Compartment Cover (for Xbox one controller) (for Xbox X / S controller) Xbox one controller Xbox X / S controller (not included) (not included) 4.
-
Page 11: Charging Indicator
Charging Indicator Charging indicator Status Light up red Charging Light up green Fully charged Fast flash in red Charging over current • Remove the Controller(s) from the charging dock and unplug the USB cable from input and then re-connect. • It takes 6-7 hours (approximately) to fully charge an official Xbox®... -
Page 12: Hints And Tips
Hints and Tips Problem Solution Charging does not work. • Make sure the connecting cable is fully plugged into a USB port and the game console, or try to use a different USB port. • Make sure that the controller is correctly placed onto the charging dock. -
Page 13: Battery
Battery Battery Pack Model AXBOXCS22 Battery Pack Battery Type Ni-MH Battery Rating 2.4V 1200 mAh Designation Code 2HRMU14/44 Manufacturer GT-COUPE ELECTRONIC CO. LTD. Dimension (L × W × H) 54.5 mm × 29.06 mm × 15.95 mm Net Weight 42.7 g Battery Cell Model SAA 1200mAh... - Page 14 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. Notes for battery disposal The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations.
