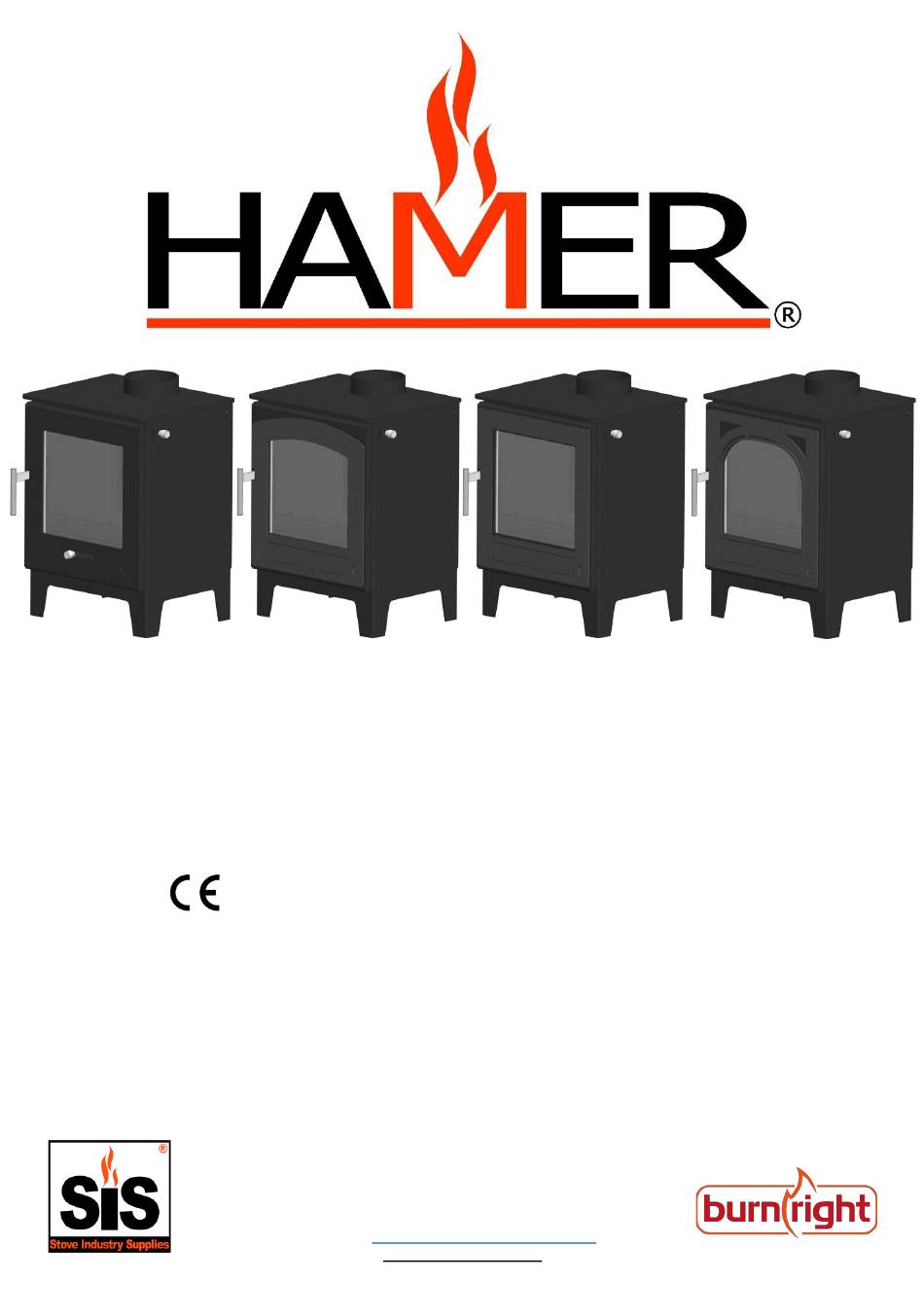

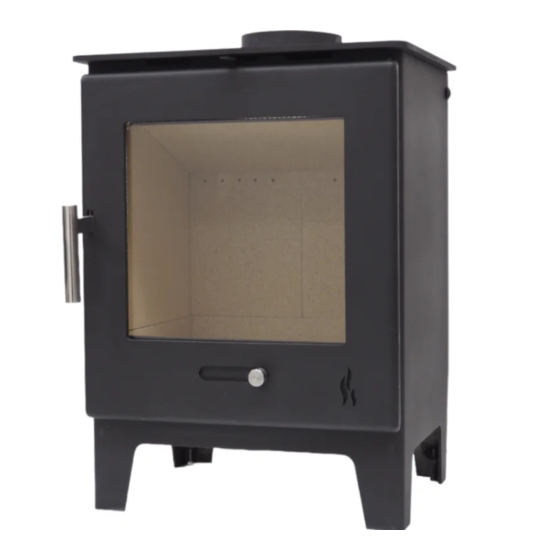

HD5 Freestanding British
Manufactured Stove Range
ECO 2022 Ready
4.8kW Nominal Output
Installation and Operating Instructions
Please hand these instructions to the stove user when the installation is complete.
Leave the stove ready for operation and instruct the user in the correct use of the appliance
and operation of controls.
*The installer must fill out the Installation and commissioning check list*
Hamer Stoves Manufactured By Stove Industry Supplies Ltd
103-105 Mowbray Drive, Blackpool, Lancashire, FY3 7UN
Tel: 01253 397200
Email: sales@stoveindustrysupplies.com
Web:
www.stoveindustrysupplies.com
Technical Specification
Advertisement
Summary of Contents for Stove industry HAMER HD5
- Page 1 Leave the stove ready for operation and instruct the user in the correct use of the appliance and operation of controls. *The installer must fill out the Installation and commissioning check list* Hamer Stoves Manufactured By Stove Industry Supplies Ltd 103-105 Mowbray Drive, Blackpool, Lancashire, FY3 7UN Tel: 01253 397200 Email: sales@stoveindustrysupplies.com...
- Page 2 Nominal Heat Output Wood 4.8kW Efficiency 80.0% Mean CO (@13% O₂) 0.18 % Appliance Mass 84kg Seasoned Wood (less Recommended Fuels Wood than 20% moisture content) Log Length 300mm Mean Flue Gas Temperature Flue Gas Mass Flow Flue Outlet Size Ø125mm Where leakage is greater than 5m³/hour/m²...
- Page 3 ECO HD5 Singleton ECO HD5 ECO HD5 Poulton ECO HD5 Hambleton...
- Page 4 Dimensions...
- Page 5 General Guidance It is important that your stove is correctly installed and operated as Stove Industry Supplies cannot accept responsibility for any fault arising through incorrect installation, use, maintenance or servicing. These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions.
- Page 6 Health and Safety Precautions Special care must be taken when installing the stove such that the requirements of the Health and Safety at Work Act are met. Handling This appliance is very heavy. Adequate facilities must be available for loading, unloading and site handling. Fire Cement Some types of fire cement are caustic and should not be allowed to come into contact with the skin.
- Page 7 Connection To The Chimney This appliance is not suitable for use in a shared flue. Using a liner a Ø125mm flexible flue liner is permitted be used on the HD5 range of stoves providing that they only burn smokeless fuel or seasoned wood logs. An existing fireplace opening can be bricked up or sealed with a register plate.
- Page 8 Warn the customer that using excessive air (having the air controls open too wide for too long) can over-fire and irreparably damage the stove. Damage caused by over firing is NOT covered by any warranty. On completion of the installation and commissioning, check all parts of the appliance are correctly fitted and ensure that the operating instructions and operating tools (including gloves) for the stove are left with the customer.
- Page 9 Customer Operating Instructions Lighting the stove Before lighting the stove for the first time please ensure all firebrick linings and other internal components are in position and that all packaging has been removed. When lighting your stove for the first time it should not be stoked excessively as all materials must be given time to adapt to the effects of heat.
- Page 10 Fires can be dangerous – Always use a fireguard to BS 8423:2002 Fireguards for use with solid fuel appliances in the presence of children, the elderly or the infirm. DO NOT perform modifications to the appliance as this could seriously compromise safety in operation. Running Temperature Thermometers are available that attach to the flue pipe directly above the stove and provide an aid to running the stove at the correct temperature.
- Page 11 Cleaning and Chimney Sweeping It’s important to have your chimney swept at least twice a year when burning wood and at least once a year when burning smokeless fuels. The best times to have your chimney swept are just before the start of the heating season and after your stove has not been used over a prolonged period.
- Page 12 Installation and commissioning Check list Purchase Information Dealer/ Retailer Name Address Contact number Date Purchased Installer Information Installer Name Address Contact number Date installed Commissioning Check (complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading: Has this appliance passed the smoke test?
- Page 13 Service Record Service Date of Service Servicing Any Parts Replaced / Recommendations Company/ Engineer Contact number Signature Service Date of Service Servicing Any Parts Replaced / Recommendations Company/ Engineer Contact number Signature Service Date of Service Servicing Any Parts Replaced / Recommendations Company/ Engineer Contact...
- Page 14 Service Date of Service Servicing Any Parts Replaced / Recommendations Company/ Engineer Contact number Signature Service Date of Service Servicing Any Parts Replaced / Recommendations Company/ Engineer Contact number Signature Service Date of Service Servicing Any Parts Replaced / Recommendations Company/ Engineer Contact...
- Page 15 This is needed in the event of a claim during the warranty period. 4. Only genuine Stove Industry Supplies spare parts or consumables can be used in the servicing and maintenance of the appliance during any standard or extended warranty period. These can be sourced from your authorised supplier directly or through our website www.stoveindustrysupplies.com...
- Page 16 7. Cost associated with the removal and re-installation of an appliance subject to a warranty claim. Stove Industry Supplies total liability will only extend to the total purchase price paid for the goods in any warranty claim. Stove Industry Supplies reserve the right to replace, repair or refund to value of goods purchased.
- Page 18 Stove Industry Supplies Ltd 103-105 Mowbray Drive, Blackpool, Lancashire, FY3 7UN Tel: 01253 397200 Email: sales@stoveindustrysupplies.com Web: www.stoveindustrysupplies.com...
