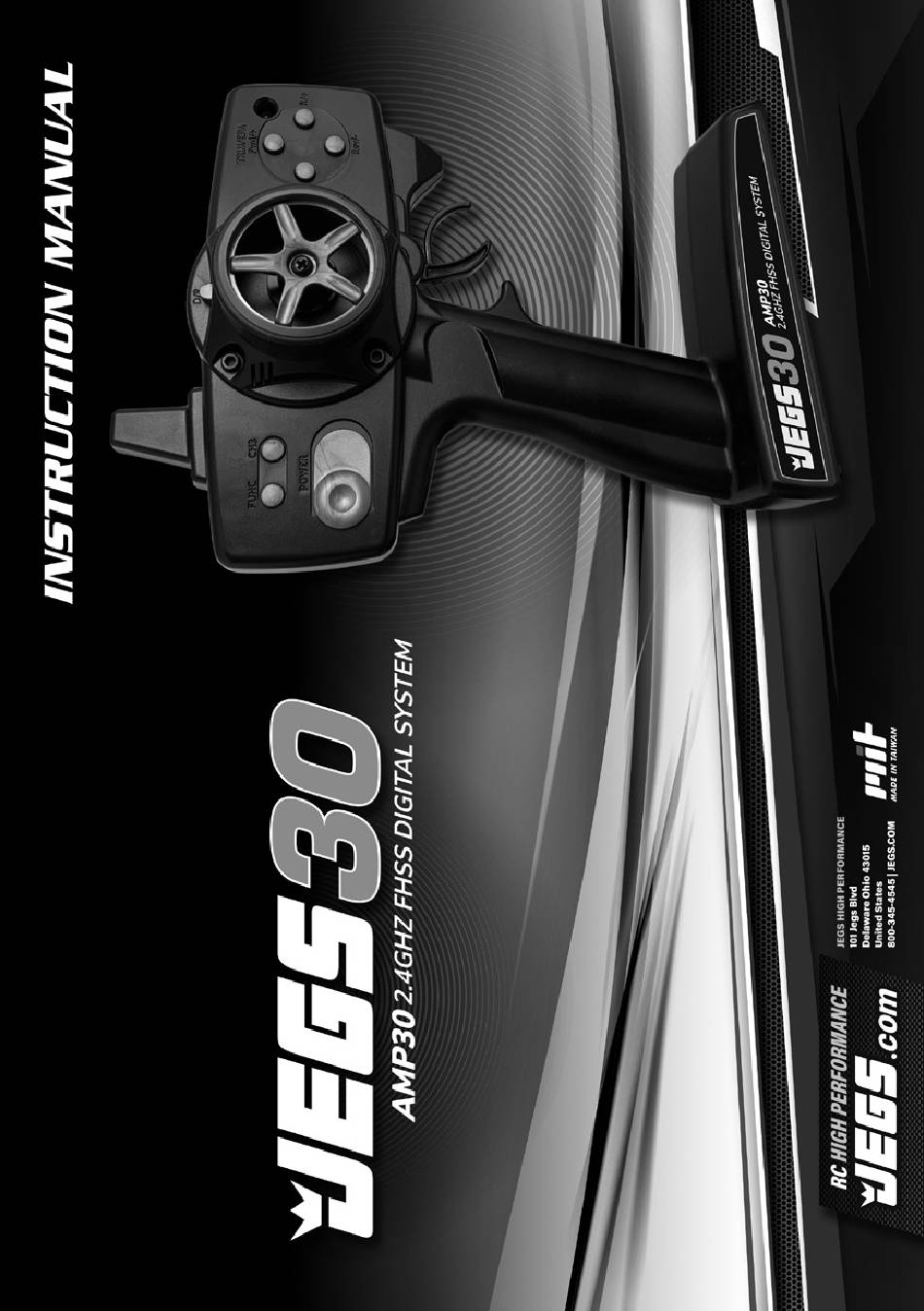

Summary of Contents for Jegs JEGS 30
-
Page 2: Table Of Contents
Table of Contents 1. Transmitter Feature Diagram ............2 2. Installing Batteries ................3 3. Basic Operation ................. 3 4. Binding Transmitter ................. 4 5. Lock/Unlock Key Button ..............4 6. Steering Adjustment ................. 4 • Reversing Servo ..................4 •... -
Page 3: Transmitter Feature Diagram
1 — Transmitter Feature Diagram [ 2 ]... -
Page 4: Installing Batteries
2 — Installing Batteries 1. Remove the battery cover from the transmitter. 2. Insert 4 AA alkaline dry cell batteries according to their polarity. 3. Replace the battery cover. 3 — Basic Operation [ 3 ]... -
Page 5: Binding Transmitter
4 — Binding Transmitter 1. Each transmitter is assigned a random unique ID number. In order to begin using the transmitter system, you will have to bind the receiver to the transmitter. 2. Follow the receiver binding instructions on page 10. 5 —... -
Page 6: Steering End Point Adjustment
Steering End Point Adjustment Left Steering End Point Adjustment 1. Turn the steering wheel (ST) fully to the left. 2. Once the value reaches the limit, a long steady “beep” will sound. • Decrease value: Turn the steering wheel fully to left and press ST L-key button •... -
Page 7: Dual Rate Steering Adjustment
Dual Rate Steering Adjustment • Decrease: Push the D/R button to the left • Increase: Push the D/R button to the right 1. Once the value reaches the limit, a long steady "beep" will sound. 2. Dual-rate Steering allows on-the fly travel adjustment to both sides (left and right) of the steering servo. -
Page 8: Throttle End Point Adjustment
Throttle End Point Adjustment Throttle (Accelerate) 1. Pull and hold the throttle trigger (TH) fully to the Forward-side. 2. Once the value reaches the limit, a long steady “beep” will sound. • Decrease: While holding the throttle trigger, press TH Rev/- button •... -
Page 9: Throttle Digital Trimming Adjustment
Throttle Digital Trimming Adjustment When the vehicle is not moving, this function allows you to adjust the throttle to the neutral position. 1. Once the value reaches the limit, a long steady “beep” will sound. 2. Two short “beep” sounds indicate confirmation. -
Page 10: On/Off Ch3 Switch Setting
On/Off CH3 Switch Setting This function allow you to turn On/Off the CH3 key-button. 1. Two quick presses of the CH3 key button. • Turn-On: Two short beep sounds • Turn-Off: One short beep sound 9 — Factory Reset Factory Default Setting 1. -
Page 11: Receiver
11 — Receiver Receiver Binding 1. Turn the transmitter switch ON. 2. Press and hold the “binding button” (B) on the receiver. 3. While holding the binding button, turn the vehicle power switch to on. 4. The LED of the receiver will blink indicating that it is searching for a transmitter to bind with. -
Page 12: Certification
13 — Certification 1. Doc Declaration Hereby, [GTI Modelsport Co. Ltd.] declares that the radio equipment type [AMP30] complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.cenracingusa.com 2. FCC Statement This device complies with Part 15 of the FCC Rules. -
Page 13: Specifications
Radiation Exposure Statement This product complies with the FCC portable RF exposure limit set forth for an uncontrolled environment and is safe for intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or if the device is set to lower output power if such function is available.
