Q U I C K S T A R T
Carefully unpack box.
1
START HERE

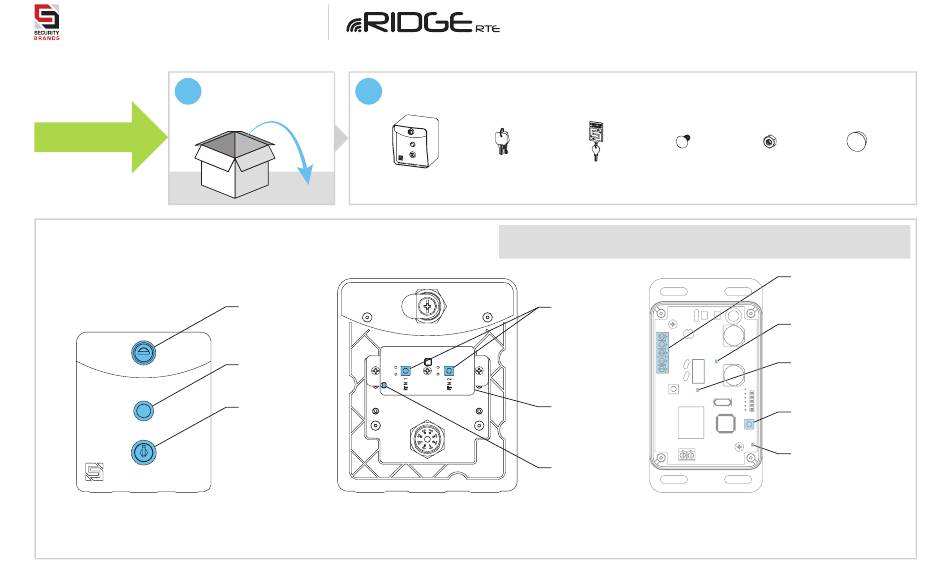

What's what?
Important components labeled
RTE Unit Front Panel
(Front)
G U I D E
Make sure you have all items shown here. (Screwdriver not shown)
2
RTE Unit
(includes battery)
Lock
For securing interior
of RTE unit
Exit Button
Triggers gate/door
to open
Key Switch
For enabling and
disabling unit
(Unit is disabled as
shown)
RTE Unit Front Panel
Internal wiring not shown for clarity.
Key Switch Keys Lock Key
(may look different)
You MUST have the Ridge Transceiver (14-REC20) for this RTE unit to work. It is bundled
with the Ridge 2.0 (14-500), Ridge RTE (14-RTE433), and can be purchased separately as well.
Pairing Buttons
For pairing RTE unit
with transceiver
CR2032 Battery
On underside of
circuit board
Status LED
Indicates
transmitting status
Transceiver (Not Included)
(Back)
Internal wiring not shown for clarity.
Model
Carriage Bolt Hex Nut
( 4x ) ( 4x )
Connection Terminals
For wiring to compatible
AC/DC power source and
gate operator or door opener
Power LED
Indicates whether or
not unit has power
Relay Status LED
Indicates whether relay is
active or inactive
(Relay is active when lit)
Programming Button
For pairing transceiver
with RTE unit
Programming LED
Indicates status of
pairing process
Shown with cover removed.
1 of 4
14-RTE433T
Hole Plug
