Summary of Contents for Wildwood 282QBXL

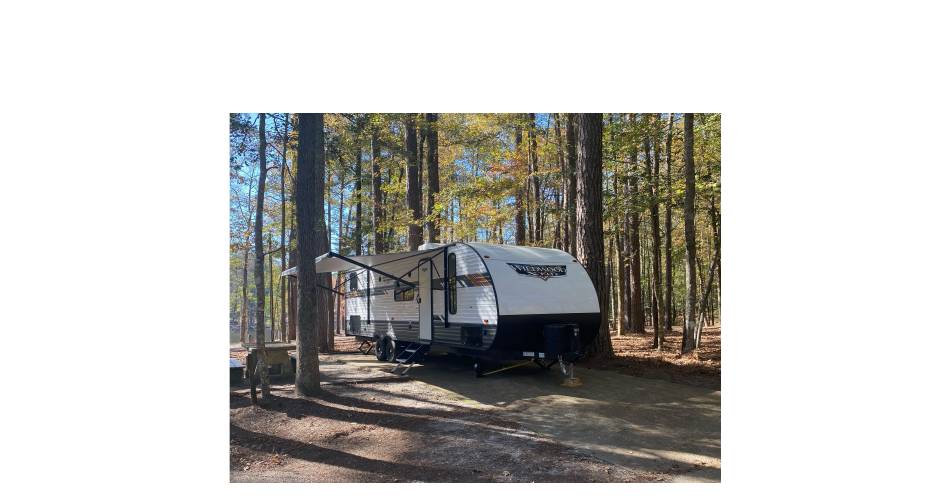

- Page 1 Mobile Bay Camper Rentals 2021 Forest River Wildwood 282QBXL...
- Page 2 Awning Usage • DO NOT LET THIS HAPPEN TO YOU à à à • Awning is for SHADE ONLY and not for rain • Roll in during ANY rain conditions, light or heavy. • Roll in during windy conditions • DO NOT leave rolled out unattended •...
- Page 3 Bathtub and Sink backing up??? • If the bathtub and/or sink happen to back up do not fear! All you need to do is go outside and open up the GREY WATER valve. • The grey water tanks hold approximately 32 gallons of liquid and will fill up fast! Usually 3 showers and one round of dishes will fill it up.
- Page 4 Toilet Paper • ONLY use RV/Marine grade toilet paper inside camper toilet. • DO NOT put anything in the toilet except waste and toilet paper. • NO wipes or feminine products allowed in the toilets please!
-
Page 5: Light Switches
Light Switches • The main light switch by the door only turns on 2 lights by the entryway. • Every other light in the camper is a push button and on its own circuit. Push the button in the middle of the light itself to turn on/off. - Page 6 Hooking to Tow Vehicle Connect camper coupler to hitch ball. Raise jack up to take pressure off tow vehicle. Connect load leveling bars by inserting into hitch and connecting pins. Raise jack up far enough so the bars sit on the “L” bracket on the tongue.
- Page 8 Setting up After camper is safely removed from tow vehicle, proceed by following these steps. 1) Level camper front to back by placing provided level on the floor inside cabin and then raising/lowering camper until the bubble is in the middle. Make the camper just a little bit unlevel to the back so the condensation from the AC will drain towards the back of the camper.
-
Page 9: Power Hookup
Power Hookup Pull out 30amp cable out of it’s compartment on the side of the camper. Plug male end of plug into campsite power box. Use the 30amp outlet. Make sure breaker on power box is turned... - Page 10 Water Hookups • Connect one end of the water hose to the “City Water” connection and the other end to the spigot at the campsite. Turn water on. Connecting to water this way will create enough pressure to use the sink/shower without needing to use the water pump.
- Page 11 Sewer Hookups Connect one end of the sewer hose to the twist lock connection under the camper. Connect 90 degree fitting to other end of hose and insert it to sewer connection at campsite or tank disposal site.
- Page 12 Black/Grey Tank Instructions 1) Connect end of hose to to tank valves and 90 degree fitting at other end of the hose to the sewer connection in the ground. If camper was delivered, this is already set up for you. 2) Pull both black handles on the left to empty toilet waste.
- Page 13 Black Tank Flush Instructions After the end of your trip, flush the black tank by following these steps. Hook water hose up to black tank flush connection on the back of the camper. Make sure waste hose is connected to camper and to sewer connection at campsite.
- Page 14 Water Pump/Heater Switches • DO NOT turn on the water pump switch unless you are NOT connected to city water. If connected to city water, then the pressure will be sufficient to operate all systems. • Water heater is powered by Propane. Make sure propane is on before turning on switch.
-
Page 15: Outside Kitchen
Outside Kitchen • The griddle outside runs on propane and will need to be plugged into the propane line underneath the camper to operate. • Propane female connection is located under back bumper. -
Page 16: Breaker Box
Breaker Box • If power goes out, check the outside breakers first. Box is located in the bunk room. • If outside breakers are good, then check the inside breakers. • Flip the breaker switches off, then on to reset power. •... -
Page 17: Additional Information
Additional Information ONLY use the RV GRADE TOILET PAPER provided. Regular toilet paper will create a clog in the drain pipes. • AWNING can be extended/retracted by pushing the awning button by the door. Make sure the door is not in the way of the awning arm. DO NOT leave the awning out with the •... -
Page 18: Cleaning Checklist
Cleaning Checklist All bedding/laundry stripped and left on Main Bed All dishes cleaned and stored properly Toilet cleaned & sanitized (around base also) Shower/Tub cleaned & sanitized Sinks cleaned & sanitized Refrigerator/Freezer emptied, cleaned & sanitized Stove cleaned & sanitized. Remove grating and clean them also Stove glass top sanitized &... -
Page 19: Contact Information
Contact Information • Eddie Tarkany • 251-802-9130 • Storage Address: 10870 County Road 64, Daphne, AL 36526...
