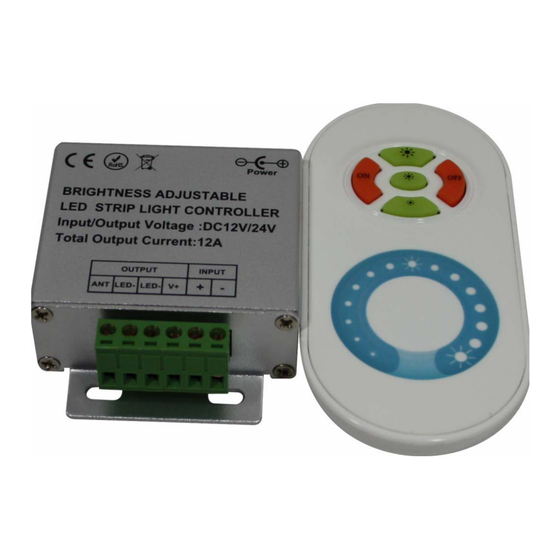

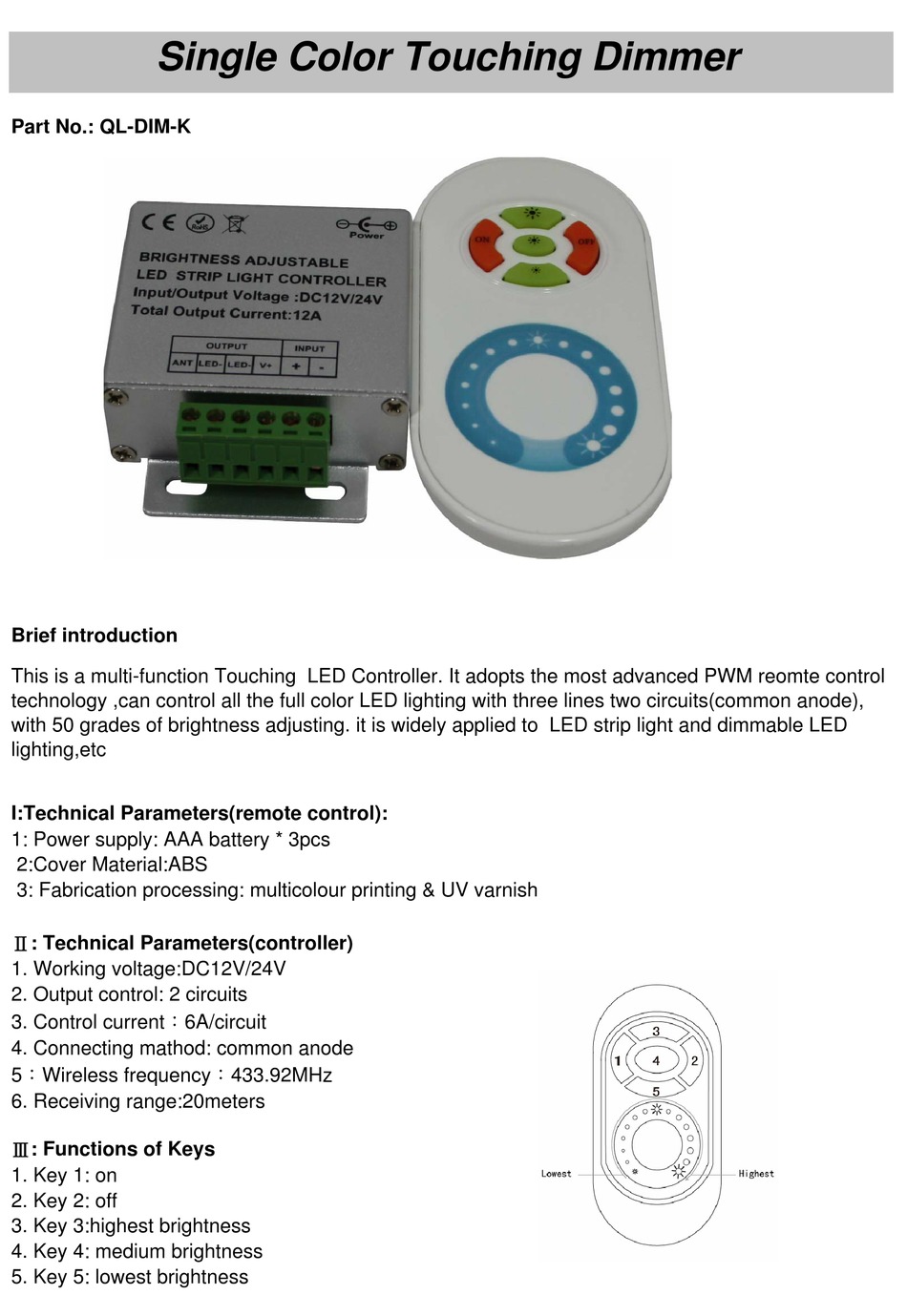

Single Color Touching Dimmer
Part No.: QL-DIM-K
Brief introduction
This is a multi-function Touching LED Controller. It adopts the most advanced PWM reomte control
technology ,can control all the full color LED lighting with three lines two circuits(common anode),
with 50 grades of brightness adjusting. it is widely applied to LED strip light and dimmable LED
lighting,etc
I:Technical Parameters(remote control):
1: Power supply: AAA battery * 3pcs
2:Cover Material:ABS
3: Fabrication processing: multicolour printing & UV varnish
Ⅱ: Technical Parameters(controller)
1. Working voltage:DC12V/24V
2. Output control: 2 circuits
3. Control current：6A/circuit
4. Connecting mathod: common anode
5：Wireless frequency：433.92MHz
6. Receiving range:20meters
Ⅲ: Functions of Keys
1. Key 1: on
2. Key 2: off
3. Key 3:highest brightness
4. Key 4: medium brightness
5. Key 5: lowest brightness
