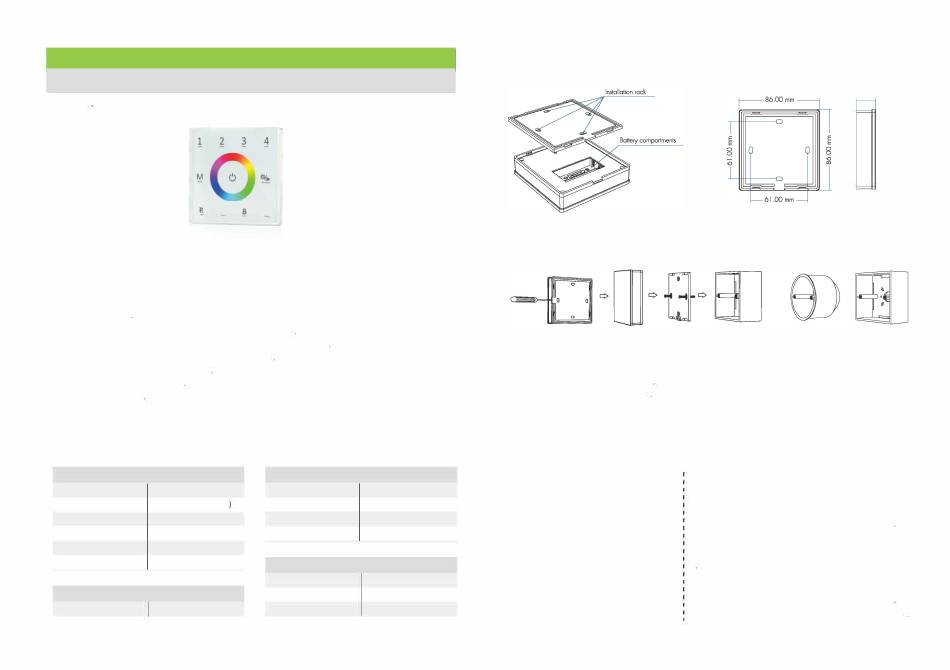

Nedlands Group FLS-RC-W Installation Manual

Wall Mounted Touch Panel
FLS-RC-W
Model No.:
4 Zone/ 1-4 color/Glass touch panel/Color wheel/Wireless remote 30m distance/ MA x 2 battery
G
FLS-RC-W
4 Zone RGB/RGBW
Features
• Touch panel 4 zone 1-4 color RF remote.
• Each zone can remote control multiple Skydance's 2.4G LED controllers
• Ultra sensitive high strength glass touch panel with touch color wheel in the middle
• Smooth and accurate color adjustment by touching the color slide
• Touch keys with chord tones and LED indicator
• Free installation, no wiring, removable
• AAA x 2 battery powered
• White & Black glass panel available.
Technical Parameters
Input and Output
I
RF2,4GHz
Output signal
3VDCA;\A x 2
Working voltage
Working current <5mA
<20pA
Standby current
Standby time 1 year
30m
Remote distance
Warranty
5 years
Warranty
User Manual Ver l .0.3
W
CE RoHS � LVD RED
Safety and EMC
EMC standard (EMC) EN30l 489,EN 62479
Safety standardlLVDI
EN60950
Radio Equipment(RED) EN300 328
Certification CE,EMC,LVD,RED
Environment
° °
Operation temperature To: -30 C- +55 C
Case temperature [iV\ax.) °
T c:+65 C
IP rating IP20
Mechanical Structures and Installations
Installation diagram:
Touch panel Baseplate
Uninstall
To fix the panel, two options are offered for selection:
Option l: fix it on the wall with lvvo screws
Option 2: adhere it to the wall with paster
Match Remote Cont rol (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press zone
key of the touch panel.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all match.
The LED indicator fast flash a few limes
means all matched remotes were deleted.
FLS-RC-W
Wall Mounted Touch Panel
20.50 mm
Typical base as below:
European style
Base 86 size
Use Power Restart
Match:
Switch off the power of the receiver, then switch on power again,
immediately short press zone key 3 times on the touch panel
The light blinks 3 times means match is successful.
Delete:
Switch off the power of the receiver, then switch on power again,
immediately short press zone key 5 times on the touch panel
The light blinks 5 times means all matched remotes were deleted
