Kozyard KZL527 Assembly Instructions Manual

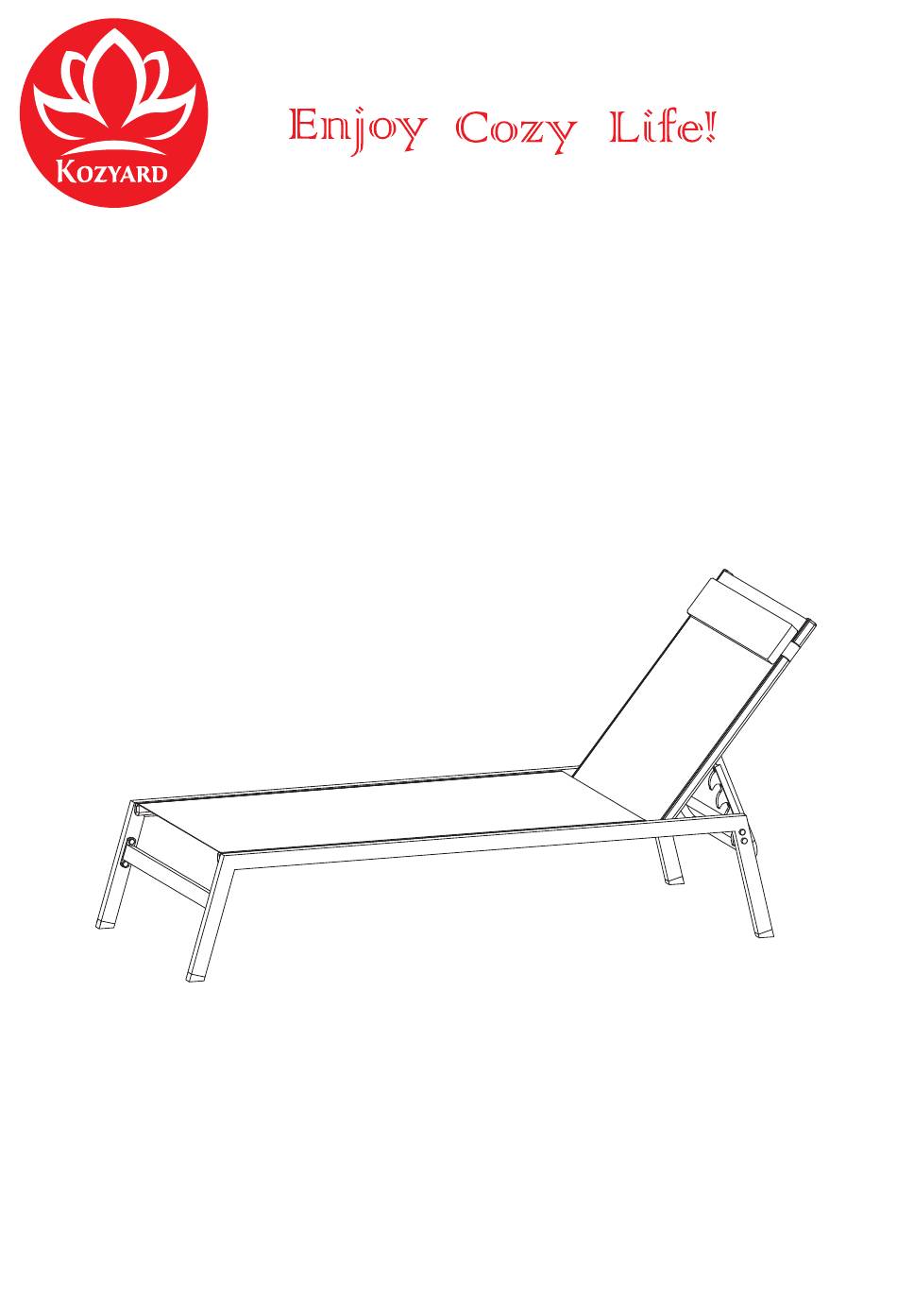

Outdoor patio steel lounge chair

Outdoor Patio Steel Lounge Chair

Assembly Instructions

Kozyard LLC Products

www.kozyard.com

Table of Contents

Need help?

Do you have a question about the KZL527 and is the answer not in the manual?

Page 2 Never use power tools or excessive force during assembly and tightening of bolts. Should you experience any difficulty during assembly, or if any of the parts are missing or damaged, contact our customer service by email: info@kozyard.com or call toll free: 866-355-0018.
Page 3 Part list Back Main Seat Frame Left Leg Right Leg Support Bar Support Column Head Cushion Bolts M6X30 4X+1X Bolts Bolts M6X30 M6X16 8X+2X 4X+1X Plastic Bolts Allen Wrench Screwdriver Cylinder M6X35 4X+1X 24X+4X...
Page 4 STEP -1 Connect 2 Legs (Parts C & D ) using Support Column (Part F), and Bolt (H) and Bolt (G) as shown in diagram. STEP -2 Connect 2 Legs (Parts C & D ) using Support Bar (Part E) and Bolt (I) as shown in diagram.
Page 5 STEP -3 Attach Main Seat Frame (Part B) to Legs (Part C & Part D) using Bolt (J) as shown in diagram. STEP -4 Link Back (Part A) to Legs (Part C & Part D) using Bolt(J) as shown in diagram..
Page 6 STEP-5 Check to make sure all screws are fixed tightly before use. STEP-6 Put the Head Cushion (Part M) on the Back as shown in diagram.
Page 7 Toll free: 1-8660355-0018 www.kozyard.com email: support@kozyard.com Follow us on Instagram www.instagram.com/kozyard 10808 6th ST, Unit 100, Rancho Cucamonga, CA 91730...
