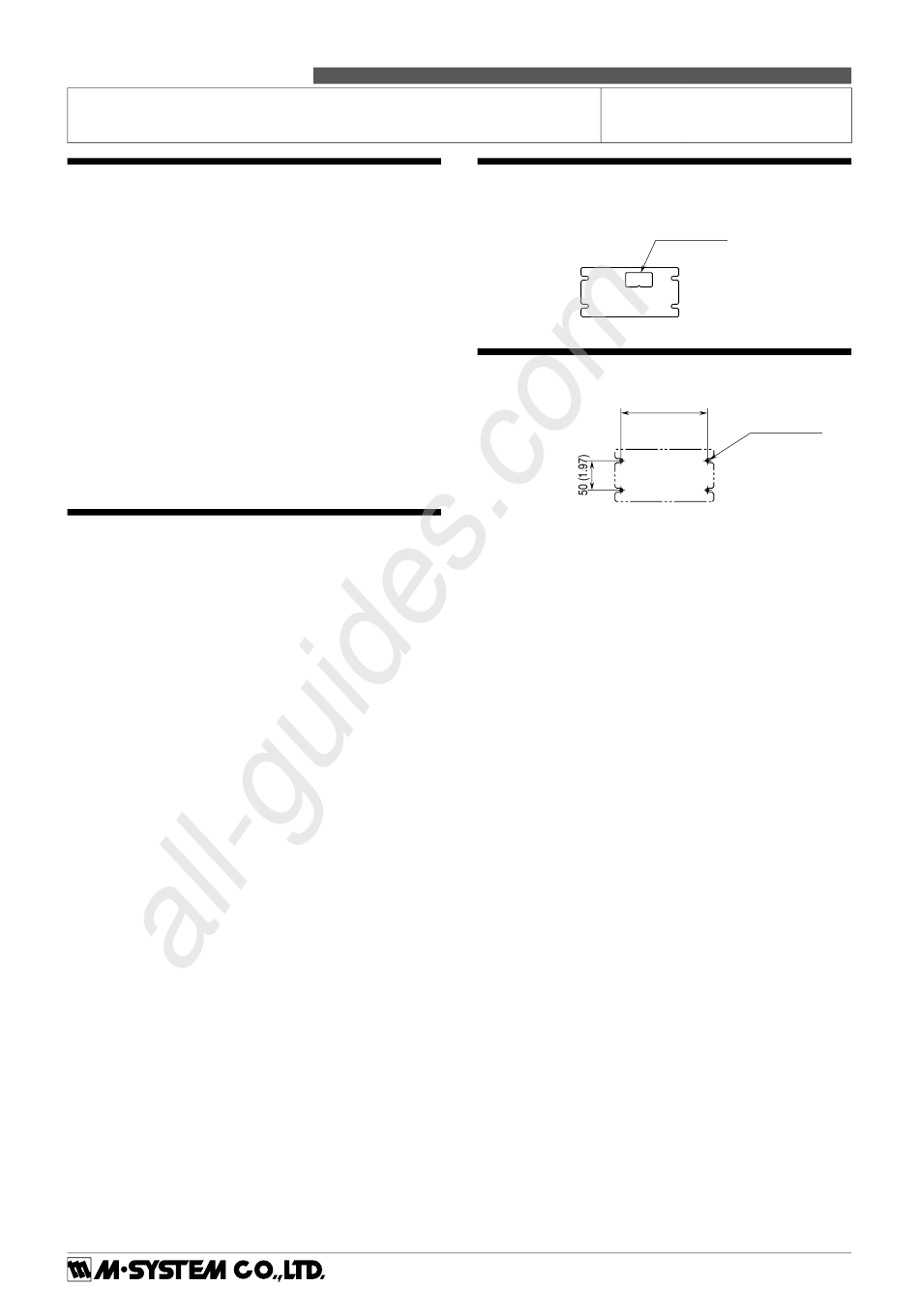

INSTRUCTION MANUAL
INSTALLATION BASE
(4 positions, M3.5 screw terminal / M3.5 screw terminal)
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
package you received as below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Installation base ..................................................................(1)
■ MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ POWER INPUT RATINGS
Operational range & power consumption: Check the power
rating for the unit on the specification label.
• Rating 85 – 132V AC: 85 – 132V, 47 – 63 Hz, ≥130VA
• Rating 170 – 264V AC: 170 – 264V, 47 – 63 Hz, ≥130VA
• Rating 24V DC: Rating ±10%, ≥0.7A
■ GENERAL PRECAUTIONS
Before you remove the unit from its base socket or mount it,
turn off the power supply and input signal for safety.
■ ENVIRONMENT
• When heavy dust or metal particles are present in the
air, install the installation base inside proper housing and
ventilate it.
• Do not install the base where it is subjected to continuous
vibration. Do not apply physical impact to the unit.
• Environmental temperature must be within 0 to 55°C or
32 to 131°F (0 to 50°C or 32 to 122°F for AC power) with
relative humidity within 30 to 90% RH in order to ensure
adequate life span and operation.
• Be sure that the ventilation slits are not covered with ca-
bles, etc.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for sat-
isfying complete performance described in the data sheet.
All manuals and user guides at all-guides.com
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: + 81 ( 6 ) 6659-8201 Fax: + 81 ( 6 ) 6659-8510 E-mail: info@m-system.co.jp
MODEL

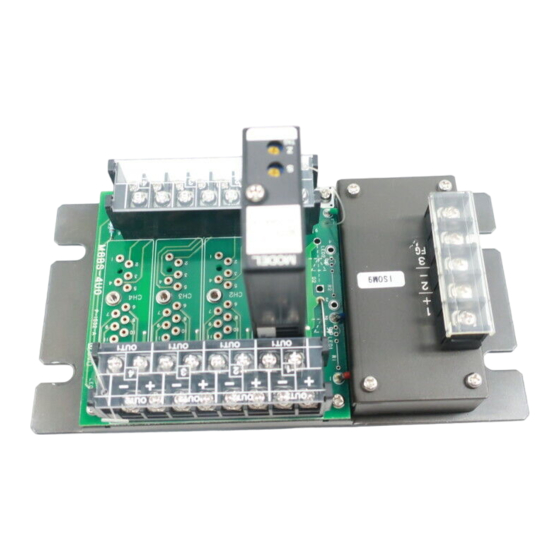

COMPONENT IDENTIFICATION
■ REAR VIEW
MOUNTING REQUIREMENTS
160 (6.30)
M8BS-4U0
M8BS-4U0
Specifications
mm (inch)
4–M5 SCREW
EM-5492-U0 Rev.5 P. 1 / 3
