Energy Cost Meter
Installation and operating instructions
IMPORTANT! PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE
CONNECTING THIS METER TO ELECTRICAL APPLIANCES
IMPORTANT
Don't plug in an appliance where the load
exceeds 10 Amps. Always ensure the plug of any
appliance is fully inserted into the meter outlet.
If cleaning of the metre is required, remove from
mains power and wipe meter with a dry cloth.

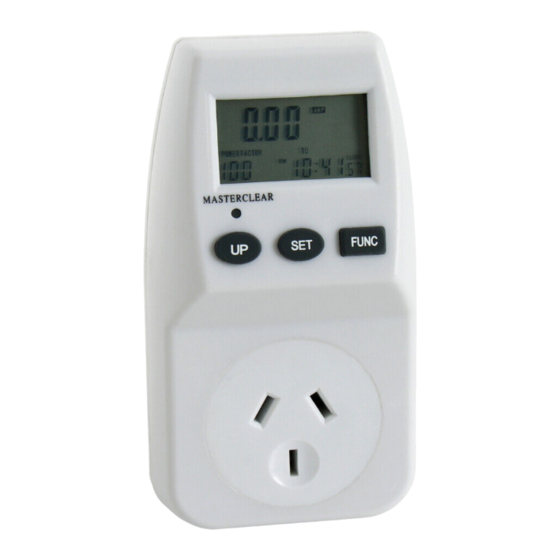

KEYBOARD DEFINITION
1. Master Clear: Clear all data in memory
including current time and all programs.
2. UP: Set current time, price, price programs,
max. overload current combined with buttons
SET; 12-24 hour mode during clock display
state.
3. SET: Set current time, price, price programs,
max. overload combined with buttons UP.
4. FUNC: Set current time, price, price programs,
max. overload combined with buttons UP.
GENERAL FEATURES
1. Display current clock.
2. Display line voltage.
3. Display line current.
4. Display line power.
5. Display peak line power.
6. Display accumulative total electric quantity.
7. Display total on time and total electric charge.
8. Display total on time and total electric charge
of price1.
9. Display total on time and total electric charge
of price2.
10. Display the frequency.
11. Display power factor.
12. Adjustable max, overload current, max,
overload warning.
13. Adjustable price / kWh
11. Combinations of day or blocks of days
available as follows:
MO
TU
WE
TH
FR
SA
SU
MO,TU,WE,TH,FRI
MO,TU,WE,TH,FR,SA
SA, SU
MO,TU,WE,TH,FR,SA,SU
REPLACING BATTERY
Insert the 2pcs battery(LR44/AG13) according to
the correct direction indication, replace battery
cover.
NOTE
1. The cover and the screw must be in place
before use.
2. The battery must be taken out if not use for
an extended period of time.
THE DATA DISPLAY
Press FUNC. Button and the data displays as
follows:
VOLTac AMP WATT MAX WATT KWh
ON TIME PRICE1 PRICE2
1. The meter will display current clock and line
voltage and frequency.
2. Press FUNC. button once and release, the
meter will display current clock and line
current, power factor.
3. Press FUNC. button once again and release,
the meter will display current clock and real
power, power factor.
PC222
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Arlec PC222
- Page 1 Energy Cost Meter Installation and operating instructions PC222 IMPORTANT! PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE CONNECTING THIS METER TO ELECTRICAL APPLIANCES 13. Adjustable price / kWh IMPORTANT Don’t plug in an appliance where the load 11. Combinations of day or blocks of days available as follows: exceeds 10 Amps.
- Page 2 4. Press FUNC. button once again and release, weekday flash, press UP bottom to set it. the meter will display max, line power and the g. Press SET button once again and release, time of max, line power, power factor. Press the hour of ON TIME flash, press UP button to and hold FUNC.
- Page 3 9. Press UP button during the CLOCK display state, to change 12-24 hour mode. To reset incorrect time, repeat above steps. After finishing set up, plug the meter into a regular power outlet. Plug in an appliance that you want to use and turn the mains power on. The meter will now measure the consumption of the appliance.
- Page 4 Arlec in rela- tion to the product. Arlec will at its own option make good, replace with the similar product, or provide credit for any product manufactured or supplied by it, which proves to be defective...
