- Page 1 USER GUIDE HH130V1...
-
Page 2: Table Of Contents
Table of contents Table of contents Safety and use ............................... 4 1.1 Conditions of use:...........................4 1.2 Adapters: ..............................5 Radio waves .............................5 1.4 General information ..........................6 Disclaimer ..............................7 Overview ................................8 2.1 System requirements ..........................8 2.2 Device description ..........................8 Getting.started.with.your.device ........................10 Insert a SIM card ..........................10 Connect the power adapter ...................... - Page 3 Table of contents 5.5.8 DMZ ............................22 5.5.9 UPnP ............................23 5.5.10 Port forwarding ........................23 5.5.11 NTP server ........................... 23 5.5.12 Parental control ........................23 System ................................... 24 6.1 Device information..........................24 Log in password ........................... 24 6.3 System time ............................24 6.4 Backup & restore ..........................
-
Page 4: Safety And Use
Always handle your device with care and keep it in a clean and dust-free place. Do not allow your device to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer’s recommended operating temperature range is -20°C (-4°F) to +45°C (113°F). Do not open, dismantle, or attempt to repair your device yourself. Do not drop, throw, or bend your device. Do not paint it. Use only chargers and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your device model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers. Please note your device is a unibody device, the back cover is not removable. Observe the following precautions: - D o not attempt to open the back cover; - D o not puncture the back cover of your device; - D o not burn or dispose of your device in household rubbish or store it at temperature above 60°C (140°F ). -
Page 5: Adapters
All products with this sign must be brought to these collection points. In.non-European.Union.jurisdictions: Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled. 1.2 Adapters: Mains powered adapters will operate within the temperature range of: 0°C (32°F) to 40°C (104°F ). The adapters designed for your device meet the standard for safety of information technology equipment and office equipment use. They are also compliant with the ecodesign directive 2009/125/EC. Due to different applicable electrical specifications, an adapter you purchased in one jurisdiction may not work in another jurisdiction. They should be used for this purpose only. Manufacturer’s name and address: TCL Communication Ltd., 5/F Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong Model: CYCA18-120150E Input voltage: 100~240V Input AC frequency: 50/60Hz Output voltage: 12.0V Output current: 1.5A Output power: 18W Average active efficiency: 85% No-load power consumption: 0.075W 1.3 Radio waves y Proof of compliance with international standards (ICNIRP) or with European Directive 2014/53/ EU (RED) is required of all device models before they can be put on the market. The protection... -
Page 6: General Information
its suppliers in regard to the Product expires (including any indemnification in regard to infringement IPR). 1.4 General.information Internet.address:.www.tcl.com/global Hot.Line.Number:.see «SERVICES» leaflet or go to our website. Address:.5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong This radio equipment operates with the following frequency bands and maximum radio-frequency power: GSM 900MHz: 33.5 dBm GSM 1800MHz: 31 dBm UMTS Band 1/3/8 (2100/1800/900MHz): 24 dBm LTE FDD Band 1/3/7/8/20/28(2100/1800/2600/900/800/700MHz): 24 dBm LTE TDD Band 38 (2600MHz): 24 dBm 802.11 b/g/n 2.4GHz band: 18.97 dBm 802.11 a/n/ac 5.0GHz band: 20.75 dBm Regulatory.Compliance y Hereby, TCL Communication Ltd. declares that the radio equipment type device is in compliance with Directive 2014/53/EU. y The full text of the EU declaration of conformity is available at the following internet address: www.tcl.com/global/en/service-support-mobile/eu-doc.html... -
Page 7: Disclaimer
Safety and use 1.5 Disclaimer There may be certain differences between the user manual description and the device’s operation, depending on the software release of your device or specific operator services. TCL Communication Ltd. shall not be held legally responsible for such differences, if any, nor for their potential consequences, which responsibility shall be borne by the operator exclusively. This device may contain materials, including applications and software in executable or source code form, which is submitted by third parties for inclusion in this device ("Third Party Materials"). All Third Party Materials in this device are provided "as is", without warranty of any kind, whether express or implied. The purchaser undertakes that TCL Communication Ltd. has complied with all quality obligations incumbent upon it as a manufacturer of mobile devices and devices in complying with Intellectual Property rights. TCL Communication Ltd. will at no stage be responsible for the inability or failure of the Third Party Materials to operate on this device or in interaction with any other device. To the maximum extent permitted by law, TCL Communication Ltd. disclaims all liability for any claims, demands, suits or actions, and more specifically – but not limited to – tort law actions, under any theory of liability, arising out of the use, by whatever means, or attempts to use, such Third Party Materials. Moreover, the present Third Party Materials, which are provided free of charge by TCL Communication Ltd., may be subject to paid updates and upgrades in the future; TCL Communication Ltd. waives any responsibility regarding such additional costs, which shall be borne exclusively by the purchaser. TCL Communication Ltd. shall not be held responsible for the lack of availability of any application, as its availability depends on the country and the operator of the purchaser. TCL Communication Ltd. reserves the right at any time to add or remove Third Party Materials from its devices without prior notice; in no event shall TCL Communication... -
Page 8: Overview

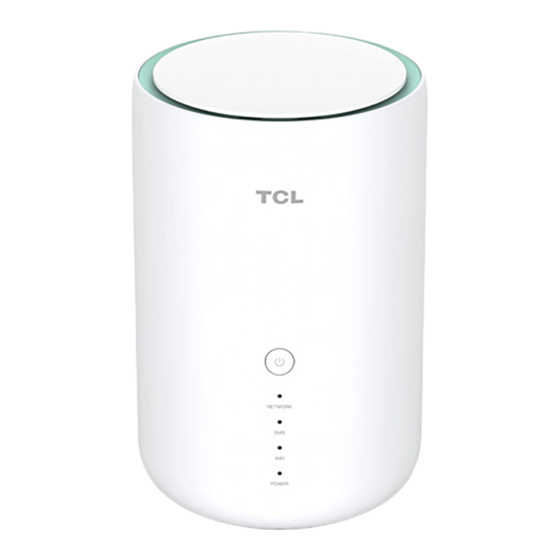

Overview 2. Overview This device allows you to share a secure mobile broadband internet connection using Wi-Fi or LAN. It provides wired and wireless access for mulitple devices, e.g., PCs, mobile gaming devices, smartphones, and tablets, etc. 2.1 System requirements This device is compatible with Wi-Fi devices which support 2.4GHz (802.11b/g/n) or 5GHz (802.11a/n/ac) and works with browsers, including Firefox, Safari, Internet Explorer (9.0 or later), Microsoft Edge, Opera, and Google Chrome. 2.2 Device.description Power button Signal indicator Network indicator SIGNAL Wi-Fi indicator Power indicator WPS button Antenna port LAN / WAN ports... - Page 9 Overview LAN/WAN.port. Used to connect to an internet source or wired devices such as computers or switches. Reset.button Use a paperclip or blunt pin to gently press and hold the reset button for 3 seconds. The power indicator will start to flash and turn solid blue once the reset is completed. You can also reset the device via the Web UI. Tel port The TEL port is used to connect your fixed-line phone using a telephone cable. Indicator Guide Indicator Description • Solid blue:Strong signal. • Solid yellow:Middle signal. Signal indicator • Solid red:Weak signal. • Off:No SIM/Invalid SIM/No service. • Solid yellow: Connected to 2G. • Solid green: Connected to 3G. • Solid blue: Connected to LTE/4G. • Solid Purple: Connected to a Ethernet network. Network indicator • Solid Red: No SIM available or the device is not registered to the network.
-
Page 10: Getting.started.with.your.device
Getting started with your device 3. Getting.started.with.your.device 3.1 Insert a SIM card WAN / LAN1 Nano SIM / Reset LAN2 To insert a SIM card into your device, do the following: 1. Open the SIM slot cover. 2. Insert the SIM card into the slot following the SIM direction icon marked beside the SIM slot. 3. Close the SIM slot cover. Note: Don’t remove the SIM card when your CPE is in use, otherwise your device may lose connectivity to the internet. -
Page 11: Optional: Install The External Antennae
Getting started with your device 3.3 Optional:.Install.the.external.antennae In areas with poor signal reception, connect external antennae to the two ports labelled "MAIN and DIV" to improve signal reception. Step.1:.Power off your device and disconnect it from the power outlet. Step.2:.Open the ‘MAIN’ and ‘DIV’ cover on the back side. Step.3:.Screw external antennae fully into the antennae port and keep external antennae pointed upwards to get a better signal. Step.4:.Connect to the power adapter and power on your device. WAN / LAN1 LAN2 POWER WAN / LAN1 WAN / LAN1 LAN2 LAN2 POWER POWER 3.4 Use.the.Telephone.function. Your CPE supports the telephone function. To use this function, connect your CPE to a telephone using a telephone cable as illustrated below. Note: Make sure that your SIM card supports VoLTE or VoIP service. -
Page 12: Access Wireless Network
Getting started with your device 3.5 Access wireless network 3.5.1 Access.wireless.network.via.Wi-Fi. To establish a wireless network connection: Step.1:.Enable Wi-Fi on your device. When the Wi-Fi indicator is solid blue, Wi-Fi is enabled. Step.2:.Record the Wi-Fi name or SSID and Wi-Fi password. The default SSID and Wi-Fi password can be found on the bottom label of your device. To prevent unauthorised parties from accessing your Wi-Fi network, it is recommended that you change the SSID and Wi-Fi password from time to time. For more information, refer to “5. Settings”. Step.3: Set up a Wi-Fi connection. y Set up a Wi-Fi connection manually: 1) Scan for wireless networks from your Wi-Fi enabled client. 2) Connect to the network name that matches the SSID found on the device label. 3) When prompted for a password, enter the Wi-Fi password found on the device label (this is case sensitive). Your client will notify you when it is connected. y Set up a Wi-Fi connection through WPS. For details, see “3.4.2 Connect in WPS mode”. 3.5.2 Connect.in.WPS.mode Your client must support WPS. There are 3 ways to set up a WPS connection. Option.1:.WPS button 1) Press and hold the WPS button for 3 seconds. The Wi-Fi indicator will begin to flash blue. 2) Enable WPS on your personal device within 2 minutes. -
Page 13: Accessing.web.ui
Accessing Web UI 4. Accessing.Web.UI. The Web User Interface is compatible with the following browsers: y Mozilla Firefox y Safari 13 or later y Internet Explorer 11 or later y Microsoft Edge y Google Chrome 4.1 How.to.log.in.to.the.Home.page 1. Open your web browser. 2. Go to http://192.168.1.1 to enter the login page and follow the on-screen instructions to complete the login process. 3. -
Page 14: Status
Accessing Web UI Status This tab allows you to view your device information including internet, LAN, Wi-Fi, WAN and Diagnostics. You can connect, disconnect, or change the SSID of the device here. Connected devices This tab allows you to manage internet access for connected devices, and block or unblock devices. 4.4 Services Navigate to Services and click the tab to display the information you want or change SMS settings as desired. Refer to the following table for the description of each folder under this tab. Inbox Incoming messages are stored in this folder. Outbox Outgoing messages are stored in this folder. Draft Unsent messages are stored in this folder. New message Write a new message in this folder. -
Page 15: Settings
Settings 1. T ick the first checkbox of the checkbox column to select all messages. Delete all messages 2. Click Delete. Enable SMS delivery reports Click SMS.Settings, then enable SMS report. Click SMS.Settings, then disable SMS report. Disable SMS delivery reports 5. Settings This section allows you to configure the network connection, connection mode, manage WAN, LAN and Wi-Fi settings, and more. 5.1 Quick setup SIM.settings You can change basic connection settings here and enable or disable data roaming. Wi-Fi.settings You can change the 2.4 and 5GHz Wireless network name (SSID), SSID broadcast function or disable the Wi-Fi. -
Page 16: Setup
Settings 5.2 Setup Network.connection This tab allows you to configure connection mode, data roaming and IP mode. Profile.management This tab allows you to set up a new APN profile, edit or delete existing profiles. y To add a new profile: 1) Click New. 2) Input the correct parameters for your Network Operator. Profile.Name / Dial number / APN are required as a minimum. 3) Click Save. y To edit a profile: 1) Select the profile from the Profile management list. 2) Click Edit to change the parameters. 3) Click Save. y To delete a profile: 1) Select the profile from the Profile management list. 2) Click Delete. Note: The default profile cannot be deleted. -
Page 17: Wi-Fi Settings
Settings Note: Once the new profile has been set as default, (Default) will be added next to the profile name. Network.Selection: You can set the Network.search.mode to either Auto (4G/3G/2G) or 4G only. Ensure that you click Apply after making any changes. 5.3 Wi-Fi.Settings 5.3.1 Basic Configure basic Wi-Fi settings in this option. y Wireless.network.name.(SSID):.This is the name of the wireless network and is used to identify your wireless network. The SSID can be between 1 and 32 characters long. y SSID.Broadcast:.This is enabled by default. Note: If you do choose to disable this, the SSID will no longer be displayed and will need to be entered manually. y Security: You can choose the security mode, available options are WPA2, WPA/WPA2, WPA2/ WPA3,.WPA3 or Disabled. y Encryption: This is set to AES by default, and the available options are AES or Auto..Note: If security mode is set to WPA3 or WPA2/WPA3, encryption mode can be set to AES only. -
Page 18: Advanced
Settings 5.3.2 Advanced Configure advanced Wi-Fi settings in this option. y Max..connected.devices: you can set the maximum number of devices that can be connected to your device from the drop-down menu. This is set to 32 by default. y Wi-Fi.mode: you can select from the available options via the drop-down menu. This is set to 802.11ac by default. y AP.isolation:.The AP isolation function enables you to create a separate virtual network for each wireless client device that is connected to your network. When this function is enabled, all wireless devices in the network will not be able to communicate with each other. y Channel.bandwidth: you can select from the available options via the drop-down menu. It is set to 20MHz by default for 2.4 GHz and set to Auto for 5GHz. y Channel: select Auto and the device will select the best channel for you to use automatically, or you can select a Wi-Fi channel manually. 5.3.3 Guest network The guest network is a temporary wireless network assigned for guest users. You can set a duration you want the network to transmit. Devices connected to the guest network will not be able to communicate with each other, but will have full access to the Internet. y Wireless.network.name.(SSID): this is the name of the guest network and is used to identify your guest network. The SSID can be between 1 and 32 characters long. y Duration:.you can set the length of time of the guest network that clients can use. The default value is 1 day. y Security: you can choose the security mode, available options are WPA2, WPA/WPA2, WPA2/ WPA3, WPA3 or Disabled. y Wi-Fi.password:.set the Wi-Fi password for the guest network. -
Page 19: Wps
Settings y Time.remaining: this is the time remaining for the guest network to continue to transmit. Click Extend.by.4.hours to add time to the guest network. 5.3.4 WPS WPS (Wi-Fi Protected Setup) allows you to connect WPS compatible clients to the your device via push-button or PIN modes. WPS is enabled by default, but can be disabled on this page. See section 3.4.2 for more information on connecting devices using WPS. 5.4 Security.(SIM.PIN.management) y To enable a SIM PIN: 1) When SIM PIN is disabled, click 2) Enter a SIM PIN that is 4-8 digits long. 3) Click Apply. y To disable a SIM PIN: 1) When SIM PIN is enabled, click 2) Enter the current SIM PIN. 3) Click Apply. y To change a SIM PIN: 1) When SIM PIN is enabled, click Change.SIM.PIN. 2) Enter the old SIM PIN and confirm the new SIM PIN. 3) Click Apply. Note: When a SIM PIN is entered incorrectly 3 times, a PUK code is required. -
Page 20: Advanced Settings
Settings 5.5 Advanced.settings. 5.5.1 WAN.port Basic Set up the WAN connection mode and parameters in this option. You can set the connection mode to DHCP, PPPoE or Static IP. y DHCP: Dynamic Host Configuration Protocol (DHCP) is a client /server protocol that automatically provides you with an internet Protocol (IP) host. The IP address and related configuration settings such as subnet mask and default gateway are all automatically assigned. Select DHCP and click Apply. y PPPoE: PPPoE stands for Point-to-Point Protocol over Ethernet. This is a network protocol that is mainly used for DSL services where individual users connect to a modem using an Ethernet connection. Enter the username and password provided by your network service provider and click Apply. -
Page 21: Lan
Settings 5.5.2 LAN Local area network (LAN) parameters are displayed here. The default Gateway address is 192.168.1.1. The default Subnet Mask is 255.255.255.0. DHCP Server will automatically assign IP addresses to devices in the network, it is enabled by default. 5.5.3 QoS Quality of Service (QoS) is an advanced feature that prioritizes internet traffic for applications, online gaming, Ethernet LAN ports, or specified MAC addresses to minimize the impact of busy bandwidth. To access this function, navigate to QoS and enable this function, then configure uplink and downlink bandwidth, and click Apply. 5.5.4 WAN.ping For improved security, your device will not respond to ping commands when this function is disabled. -
Page 22: Upnp
Settings 5.5.9 UPnP Universal Plug and Play (UPnP) is a set of networking protocols that allows connected devices to detect each other and establish functional network services for data sharing, communications, and entertainment. 5.5.10 Port.forwarding Port forwarding allows external users to access applications within the local network (LAN). Click to create a new Port forwarding rule, and specify the LAN IP address, LAN ports, WAN ports and Protocol types for traffic to be forwarded. 5.5.11 NTP server Set NTP servers in this option. 5.5.12 Parental control This function enables the administrator to only allow specific devices to access the internet at particular times and days of the week. Website URLs can also be blocked by adding them to Website.restrictions. Note:.Blocking a URL may not block the associated app. For example, adding www.facebook.com may not block the specified device from using the Facebook mobile app. -
Page 23: System
System 6. System 6.1 Device.information You can view information for your device here such as IMEI, software version and MAC address. 6.2 Log.in.password Click on Show to display the password and click on Hide to hide it. You can enter a new password and click Apply to apply. The length of your login password should be 8 characters, and must contain letters and numbers, including 0-9, a-z, A-Z, "-+!@$#^&*"%/:=;. Note: You can find your default Wi-Fi password and also Web-UI password printed on label located on the bottom of your device. 6.3 System.time You can select the correct time zone here. Daylight saving time will be set automatically but can be overridden by changing the settings. 6.4 Backup & restore y How to save the configuration: Click Backup to backup current device configuration. On both Windows and macOS, this is saved to your 'Downloads' folder. -
Page 24: Restart And Reset
This warranty shall not apply to defects to your device and/or accessory due to (without any limitation): - N on-compliance with the instructions for use or installation, or with technical and safety standards applicable in the geographical area where your device is used; - C onnection to any equipment not recommended in the TCL user manual; - M odification or repair performed by individuals not authorised by TCL Communication Ltd. or its affiliates or your vendor; - M odification, adjustment or alteration of software or hardware performed by individuals not authorised by TCL Communication Ltd.;... - Page 25 Warranty Your device will not be repaired in case labels or serial numbers (IMEI) have been removed or altered. There are no express warranties, whether written, oral or implied, other than this printed limited warranty or the mandatory warranty provided by your country or jurisdiction. In no event shall TCL Communication Ltd. or any of its affiliates be liable for indirect, incidental or consequential damages of any nature whatsoever, including but not limited to commercial or financial loss or damage, loss of data or loss of image to the full extent those damages can be disclaimed by law. Some countries/states do not allow the exclusion or limitation of indirect, incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you.
