BA1
快速入门指南
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the BA1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shanling BA1

  • Page 1 快速入门指南 Quick Start Guide...
  • Page 2 简体中文 安全指示 1. 不可自行开启本机进行维修、拆卸或改造。 2. 请不要在特别热、冷、多尘或潮湿的环境中使用本产品, 也不 要放在有液体的地方。 3. 请调节适当音量欣赏音乐,以免损伤您的听觉和音响系统,在 插入耳机前,请先将音量调小,不要长时间使用耳机。 4. 不要使用化学剂或清洁剂清洁本产品,这样会损伤产品表面。 5. 使用电源适配器,应购买获得CCC认证并满足标准要求。 执行标准: GB8898-2011; GB/T13837-2012...
  • Page 3 部件名称 POWER 电源拨动开关 显示屏 3.5mm耳机插口 ANALOG OPTICAL USB/DAC 模拟左右音频输出接口 Type-C USB数据接口 数字光纤输出接口...
  • Page 4 操作说明 开机/关机 1. 开机: 关机状态下向上拨动开关到"ON"开机,显示屏显示开机 界面。 2. 关机: 开机状态下向下拨动开关到"OFF"关机,显示屏熄灭。 配对模式 接收器在开机后或者断开所有蓝牙连接后自动进入配对状态。 1. 未启用USB DAC功能,显示屏显示"PAIRING"字符并闪烁。 2. 已启用USB DAC功能,显示屏蓝牙图标闪烁。 回连模式 1. 接收器 失去连接后,重新接收到蓝牙信号可成功回连,否侧重 新进入配对状态。 2. 接收器重新开机后会自动回连上一次连接设备。 连接成功 接收器在配对状态下,手机打开蓝牙搜索接收器 ( Shanling BA1) 并连接,连接成功后显示屏上的蓝牙图标显示已连接状态。...
  • Page 5 连接断开 断开所有手机蓝牙连接,回到配对状态。 同时连接两个蓝牙设备 接收器在没有连接任何蓝牙设备情况下,方可配对连接蓝牙设 备。 2. 接收器在已配对蓝牙设备情况下,最多可以连接两个蓝牙设备。 音量控制 CA模拟音频输出口默认LINE OUT输出,需将手机音量调 到最 大。 2. .5mm耳机输出口在蓝牙连接时或耳机插入时会限制不超 过保 护音量。 开启蓝牙绝对音量 3. 为了获取更大的音量,推荐 。 4. USB DAC模式下调节音量是由软件或系统的音量控制。 注意: a. 使用RCA音频输出口时,先把后端连接的放大器音量 调小,避免音量过大。 b. 苹果手机默认开启蓝牙绝对音量。 c. 安卓手机开启蓝牙绝对音量方式(各品牌手机描述有 所不同):开发者选项 蓝牙绝对音量...
  • Page 6 使用方法 开机工作状态下,用音频线或数字光纤线将接收器与有源音箱、 功放、组合音响的信号输入口相连接,或将耳机从正面插入到 接收器耳机输出口(用于立体身耳机输出)。 注意: 当音频线连接到RCA模拟输出口时,模拟L/R音频有输出; 光纤线连接到数字光纤输出口时,数字光纤信号有输出; 当耳机插入到正面耳机输出口时,数字光纤信号同时有输出, RCA模拟L/R音频没有输出。 2. 用手机、平板电脑或其他带有蓝牙功能的终端搜索 蓝牙 接收器 ( Shanling BA1) 的蓝牙设备。 USB DAC功能 当BA1作为USB DAC使用时,首先要使USB线材连接BA1与电脑, 打开BA1会自动进入USB DAC模式,电脑将会自动安装所需的驱 动软件。打开声音设置,在设备列表中把"扬声器 Shanling BA1" 设置为您的默认声音输出设备即可。 固件升级 请登录官网 www.shanling.com 进入BA1产品页进行相关下载,并 按操作说明进行升级。也可通过"山灵播控"APP进行OTA升级。...
  • Page 7 OLED显示屏 编码方式工作OLED屏显示(在播放状态) 显示屏 状态 aptX/aptX Low Latency APTX APTX LL aptX HD APTX HD LDAC LDAC USB DAC...
  • Page 8 常见问题 1. 推荐使用DC5V 1A适配器,使用适配器电压过高可能会损坏机器。 2. 无法输出,请尝试更换音频连接线,并确保输出正常。 随机附件 快速入门指南:1份 USB A转Type-C线:1根 保修卡:1份...

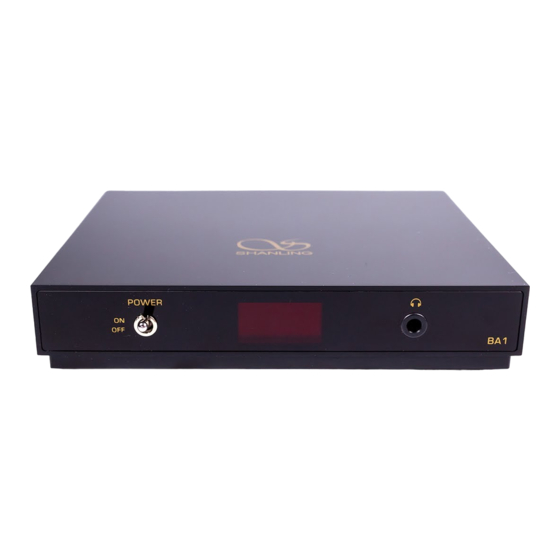

  • Page 9 ENGLISH Names of Parts POWER Power Switch Status Display 3.5mm Jack ANALOG OPTICAL USB/DAC Analog RCA Output Type-C USB Optical Digital Output...
  • Page 10 Operation Instructions Power On / Off 1. Connect the BA1 to a DC5V 1A USB charger or to a USB port on a computer. 2. Power on: Flip the power switch up into "ON" position. Display will light up. 3. Power Off: Flip the power switch down into "OFF" position. Display will turn off.
  • Page 11 BA1. Now both devices are simultaneously connected to the BA1. Volume control 1. Analog RCA output - Output volume of the BA1 is set at a fixed line-out level, please use the volume control on the connected analog device. Please set volume on your smartphone/tablet to 100%.
  • Page 12 Using BA1 1. Analog connection – Use a pair of RCA cables to connect the BA1 to an analog input of a pre-amplifier or integrated amplifier. 2. Digital connection - Use an optical cable to connect the BA1 to a digital input of a standalone DAC or receiver.
  • Page 13: Firmware Update

    Firmware update Visit the official website at en.shanling.com and go to the Downloads section to download the latest firmware update for the BA1. Follow the included instructions to update the BA1. Alternatively, an over-the-air update is available through the "Shanling Controller"...
  • Page 14: Status Display

    Status display When used as a Bluetooth receiver, the status display will show currently used Bluetooth codec. When used as a USB DAC, the status display will show current sampling rate. Status Display aptX/aptX Low Latency APTX APTX LL aptX HD APTX HD LDAC LDAC...
  • Page 15: Common Problems

    Common Problems 1. It is recommended to use DC5V 1A charger. Using a charger with higher voltage may damage the Shanling BA1. 2. When there is no sound, try to use different pair of headphones or different cable and make sure the system volume is set correctly.
  • Page 16 山 灵 微 信 山 灵 微 博 微 信 公 众 号 微 博 公 众 号 公司名称/Company: 深圳山灵数码科技发展有限公司 Shenzhen Shanling Digital Technology Development Co.,Ltd. 公司地址/Address : 深圳市南山区蛇口赤湾一路10号 No.10, Chiwan 1 Road, Shekou Nanshan District of Shenzhen City, China.
