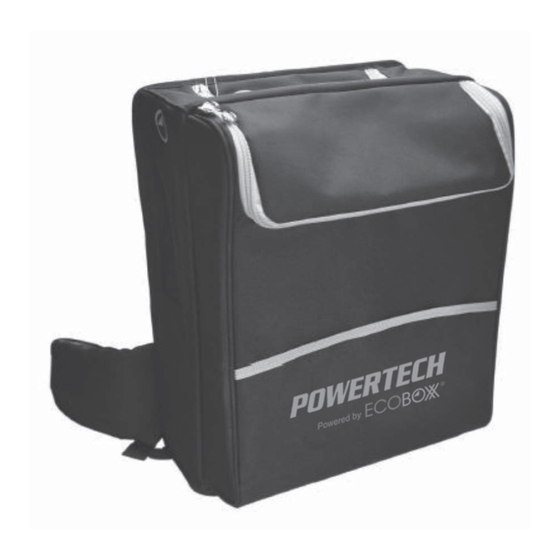

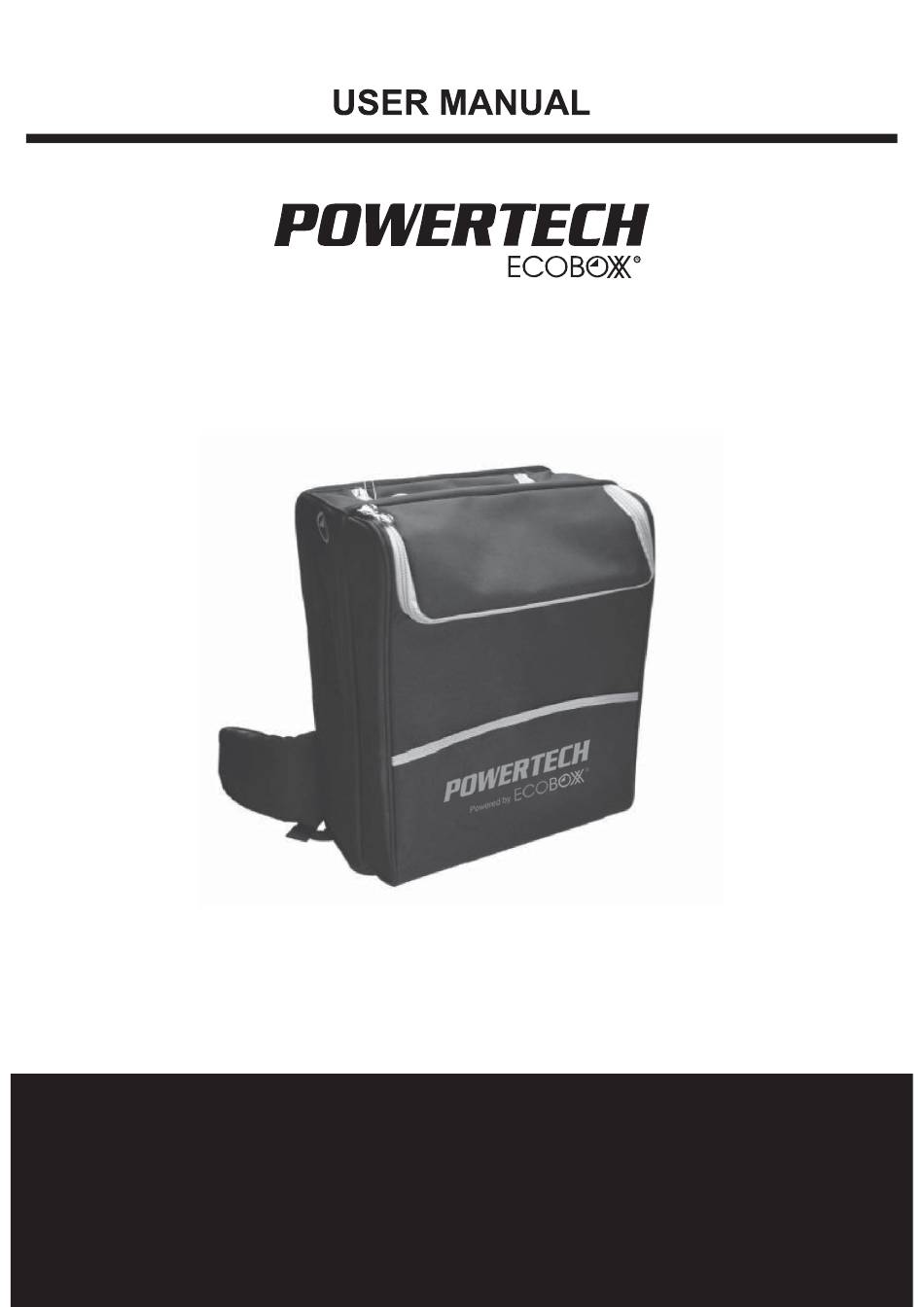

- Page 1 Powered by Solar Portable Generator MB3742...
-
Page 2: Table Of Contents
Powered by Contents 1.0 Important Maintenance Notes 2.0 General lnformation 2.1 Overview 2.2 Control Panel 2.3 Parts / Accessories 3.0 Charging MB3742 3.1 Charge from AC/DC Adaptor 3.2 Charge from Solar Panel 4.0 Power Output 4.1 USB Socket 4.2 5.5mm DC Jack Socket 4.3 Cigarette Lighter Socket 4.4 AC Socket 5.0 LED Indications... -
Page 3: Important Maintenance Notes
Powered by 1.0 Important Maintenance Notes CAUTION! BEFORE USING MB3742 FOR THE FIRST TIME, PLEASE ENSURE YOU FULLY CHARGE THE UNIT EITHER BY USING THE AC CHARGER PROVIDED FOR AT LEAST 6 HOURS OR VIA SOLAR PANELS PROVIDED FOR 12 HOURS. PLEASE CHARGE MB3742 EVERY THREE MONTHS TO MAINTAIN THE... -
Page 4: General Lnformation
Powered by 2.0 General lnformation 2.1 Overview MB3742 is a solar portable generator with both AC and DC outlets and provides power to different devices. MB3742 stores energy in its built in battery either via solar panel charging or via an AC charger. The kit is ideal for home use, recreational ,outdoor, office and emergency back up power. -
Page 5: Parts / Accessories
Powered by Please always turn the Master Switch ON to enable the power output function. Please always turn the Master Switch OFF after use and to extend the battery running time. The unit can be not be charged if the master switch is turned OFF. 2.3 Parts / Accessories Item Description... - Page 6 Powered by Storage AC OUTPUT CHARGING INPUT 12V-26V Operation panel OUTPUT 12V DC Adaptor Solar panels...
-
Page 7: Charging Mb3742
Powered by 3.0 Charging MB3742 Solar panels Solar or AC/DC adaptor input port AC OUTPUT CHARGING INPUT 12V-26V OUTPUT 12V DC Adaptor 3.1 Charge from AC/DC Adaptor Plug the AC/DC Adaptor provided into both the wall and the DC charging port on the unit. -
Page 8: Power Output
Powered by CAUTION! Please charge the unit when the red LED battery level indicator is flashing, otherwise the unit will be in low voltage protection and all the outputs will be cut off automatically. 4.0 . Power Output 4.1 USB Socket MB3742 provides two sockets for 5VDC USB power output, it supports the maximum current of 2.1A. -
Page 9: Led Indications
Powered by 5.0 LED Indications 5.1 Charging and Battery Level indication The Battery Level Indicator presented in 4 different levels to identify the battery’s capacity. - - 75%~100% --50%~75% --25%~50 --0%~25% (flashing—0%, and automatically shut down when Battery Voltage is lower than 9V) If the Battery Level Indicator flashing this means that charging is underway. -
Page 10: Dc Output Indication
Powered by 5.2 DC Output Indication Press the DC output switch to activate the DC power of 12V DC and 5V USB output, LED will turn to Green and power output is now ready. When the output is in overcurrent mode, the LED will flash in red. CHARGING INPUT 12V-26V... -
Page 11: Technical Specifications
Powered by 6.0 Technical Specifications Description Specification Unit Solar input range 16-26 Max input current Adaptor input 15.3V,3A V, A Battery specifications (12V,lead acid) Standby current Min. charging voltage Max. charging voltage 14.4 Low battery protection 10.5 Recovery battery voltage 10.5 DC 5.5mm socket X 2 output 12V, 4A Max. - Page 12 Powered by Specifications are subject to change without prior notice Distributed by: Techbrands by Electus Distribution Pty. Ltd. 320 Victoria Road, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com...
