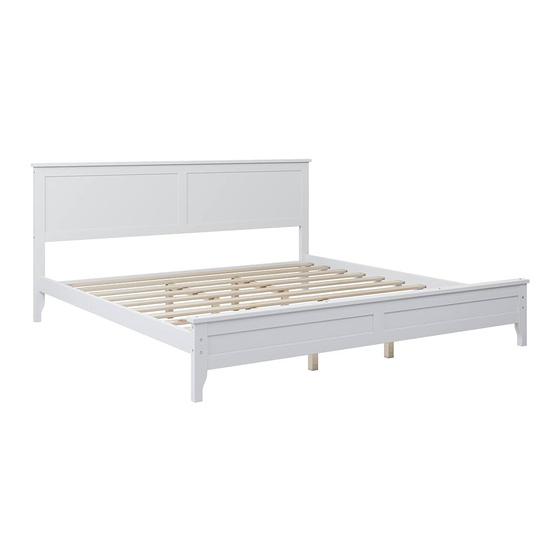

- Page 2 Hawthorne Queen Bed 48"H SKU # 6086400130 - Dark Cherry SKU # 6086400420 - White SKU # 6086400560 - Oak SKU # 6086400217 - Black 30 Min. BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL PARTS AND HARDWARE ARE ACCOUNTED FOR. IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED.
- Page 3 Part# Description Sizes(wxdxh) 65” X 48” X 2 5/8” HEADBOARD FOOTBOARD 65” X 24” X 2 5/8” RAILS 80 4/8” X 5 4/8” X 1 7/8” 81 3/4” X 2 3/4” X 3/4” SLATS SUPPORT FEET 7 3/4” X 2 3/4” X 3/4” SLATS 301/4”...
-
Page 4: Hardware Pack
STEP HARDWARE PACK STEP Insert wood dowels(C) into the ends of the side rails. Position the slat support(4) on it's edge as shown. Insert dowels(I) into the ends as shown. Next attach the feet(5) to the slat support using screws(J). -
Page 5: First Step
STEP Attach the side rails(3) to the headboard(1) and footboard(2): First, insert the half moon hardware(D) exactly as shown to each hole provided in the side rail. Once the hole of the hardware aligns with the hole on the headboard insert screw(A) from the back of the headboard and connect to the siderail. - Page 6 STEP Insert the wood slat support(4) to the brackets as shown. Also insert the wood plugs(H). You may need to gently tap these in with a RUBBER mallet. STEP Evenly space out the cross slat supports(6) as shown and attach to the side rails using screws(B).
