eurostream GE469155 Installation Procedure

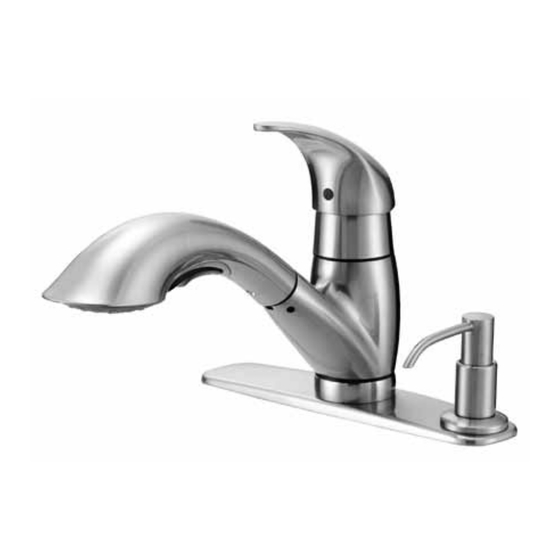

Single handle pull-out kitchen faucet

Hide thumbs

page of 8

/ 8
Bookmarks

Quick Links

Download this manual

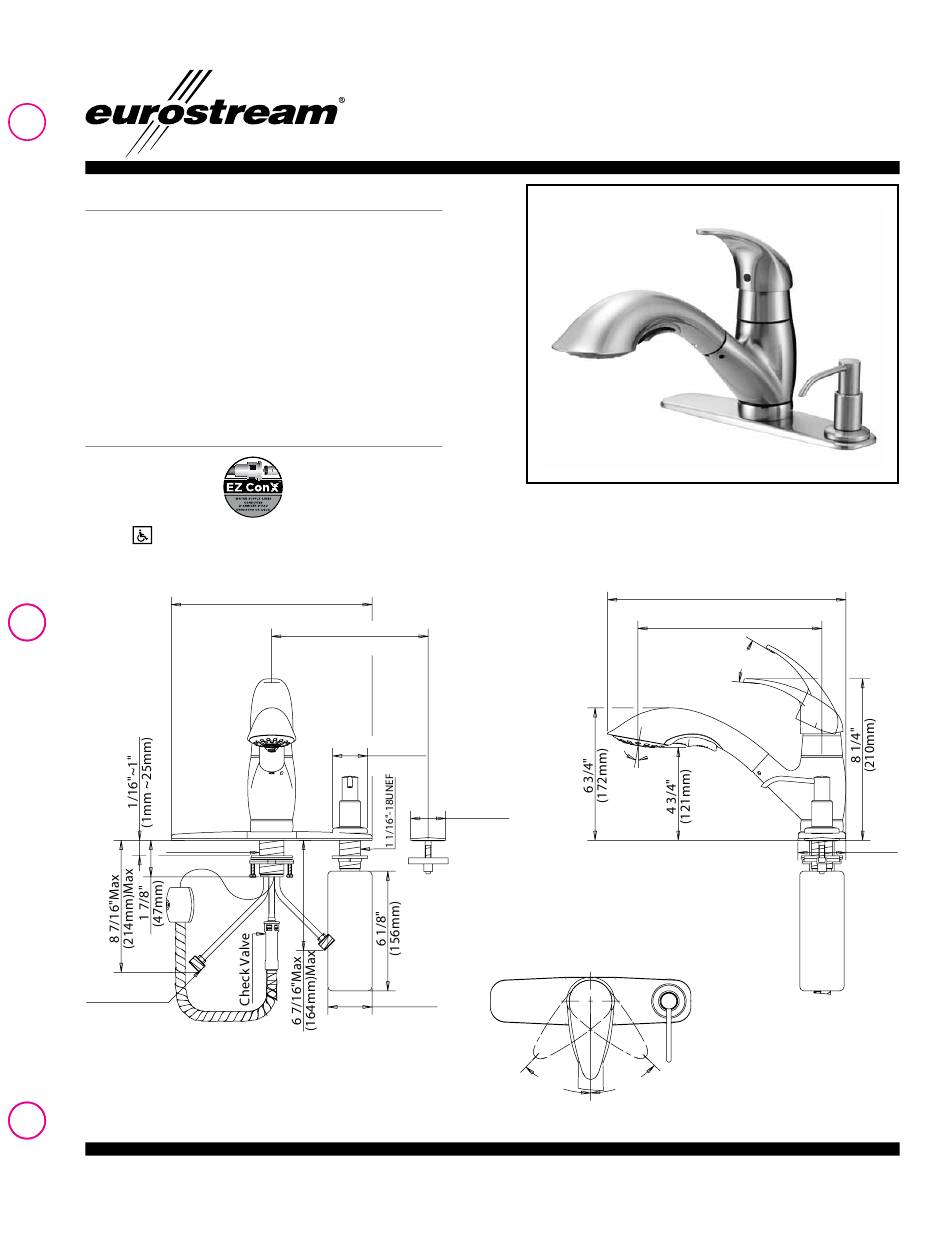

Features / Caractéristiques :

• Fits 1, 2 or 3 hole sinks with 8" center

• Single metal lever handle

• Ceramic disc cartridge

• Pour éviers 1, 2 ou 3 trous, entraxe 8 po (20,3 cm)

• Manette simple style levier en métal

• Cartouche en céramique

Certifications:

• NSF 61-9

• CSA

• cUPC

• AB-1953

• ADA

1 1/4"-18UNF

1/2"-14NPSM

Globe Union Canada Inc.

Technical Support: 1-800-487-8372

10 1/4"

(261mm)

(203mm)

Ø1 3/4"

(Ø45mm)

Ø1 13/16"

(Ø46mm)

Ø2 5/16"

(Ø58mm)

www.eurostream.ca

Single Handle Pull-Out Kitchen Faucet

Robinet de cuisine avec douchette rétractable à une manette

Available Finishes / Finis disponibles

GE457817 = Chrome / Chrome

GE457817BN = Brushed Nickel / Nickel brossé

12 3/16"

(309mm)

(239mm)

10°

45°

GE457817

9 7/16"

25°

2 7/16"

(62mm)

GE457817/11-07.01

Need help?

Do you have a question about the GE469155 and is the answer not in the manual?

Questions and answers

Summary of Contents for eurostream GE469155

Page 1 • ADA 12 3/16" 10 1/4" (309mm) (261mm) 9 7/16" 8" (239mm) (203mm) 25° Ø1 3/4" 10° (Ø45mm) Ø1 13/16" (Ø46mm) 2 7/16" 1 1/4"-18UNF (62mm) 1/2"-14NPSM Ø2 5/16" (Ø58mm) 45° 45° Globe Union Canada Inc. www.eurostream.ca GE457817/11-07.01 Technical Support: 1-800-487-8372...
Page 2 V ou en L. Ne pas utiliser si le tuyau est fendu ou déformé. Model/Modèle Need Help? Please call our toll-free Technical Support line at 1-800-487-8372 for additional assistance or service. GE469155 Besoin d’aide? Veuillez communiquer avec notre ligne de soutien technique sans frais à 1-800-487-8372...
Page 3: Maintenance
Faucet Installation Procedure Procédure d’installation du robinet Shut off main water supply before installation. Couper l’alimentation d’eau principale avant l’installation. Remove preassembled mounting hardware from faucet. Retirez les fixations préalablement assemblées au robinet. Apply plumber putty beneath the putty Attach rubber seal, metal washer, The cover plate is optional, you may determine plate and install faucet through center and lock nut on mounting body.
Page 4 Plastic SealCover Aapuchon de plastique Attach metal weight to the proper height of the hose for Remove the plastic seal cover from the outlet port prior to better retraction. pushing the hose adapter onto the same port, you will hear a "click"...
Page 5: Entretien
Soap dispenser installation: Installation du distributeur de savon: Remove the pump nozzle and plastic For faucet installation without the cover For faucet installation with cover plate: pump tube from soap dispenser plate: attach base trim ring to the base, then install install the base without trim ring through the soap assembly.
Page 6 Trouble - Shooting / Dépannage If you've followed the instructions carefully and your faucet still does not work properly, take these corrective steps. Si vous avez suivi attentivement les instructions et que votre robinet ne fonctionne toujours pas correctement, apporter les correctifs suivants.
Page 7 Replacement Parts/Pièces de rechange Keep this manual for ordering replacement parts. Conserver ce manuel pour commander les pièces de rechange. Metal Handle Assembly / Assemblage de manette en métal Handle Cap / Capuchon de la manette Trim Cap / Capuchon de garniture Locking Nut / Écrou de blocage Ceramic Disc Cartridge / Cartouche à...
Page 8 à votre représentant local de eurostream. Como ordenar partes de reemplazo: Para ordenar partes de reemplazo llame a nuestra linea gratuita de servicio al consumidor al 1-800-487-8372 o a su representante de eurostream local. Part Name Finish Part Number Nom de la pièce...
