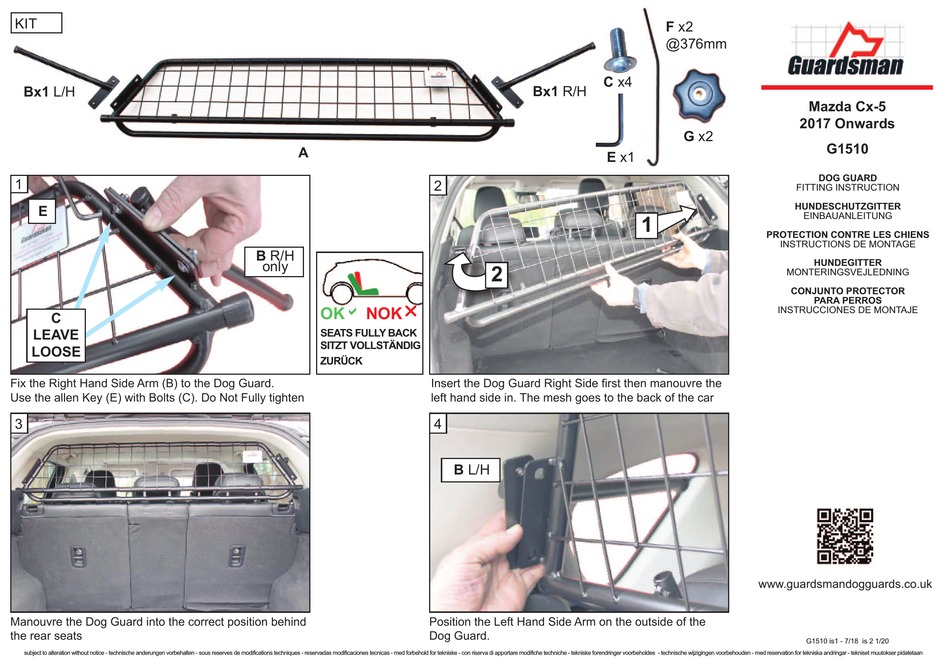

Guardsman G1510 Fitting Instruction

KIT
Bx1 L/H
1
E
C
LEAVE
LOOSE
Fix the Right Hand Side Arm (B) to the Dog Guard.
Use the allen Key (E) with Bolts (C). Do Not Fully tighten
3
Manouvre the Dog Guard into the correct position behind
the rear seats
subject to alteration without notice - technische anderungen vorbehalten - sous reserves de modifications techniques - reservadas modificaciones tecnicas - med forbehold for tekniske - con riserva di apportare modifiche techniche - tekniske forendringer voorbeholdes - technische wijzigingen voorbehouden - med reservation for tekniska andringar - tekniset muutokser pidatetaan
A
2
B R/H
only
OKa NOKr
SEATS FULLY BACK
SITZT VOLLSTÄNDIG
ZURÜCK
Insert the Dog Guard Right Side first then manouvre the
left hand side in. The mesh goes to the back of the car
4
Position the Left Hand Side Arm on the outside of the
Dog Guard.
C x4
Bx1 R/H
E x1
2
B L/H
F x2
@376mm
Mazda Cx-5
2017 Onwards
G x2
DOG GUARD
FITTING INSTRUCTION
HUNDESCHUTZGITTER
EINBAUANLEITUNG
1
PROTECTION CONTRE LES CHIENS
INSTRUCTIONS DE MONTAGE
HUNDEGITTER
MONTERINGSVEJLEDNING
CONJUNTO PROTECTOR
PARA PERROS
INSTRUCCIONES DE MONTAJE
www.guardsmandogguards.co.uk
G1510 is1 - 7/18 is 2 1/20
G1510
