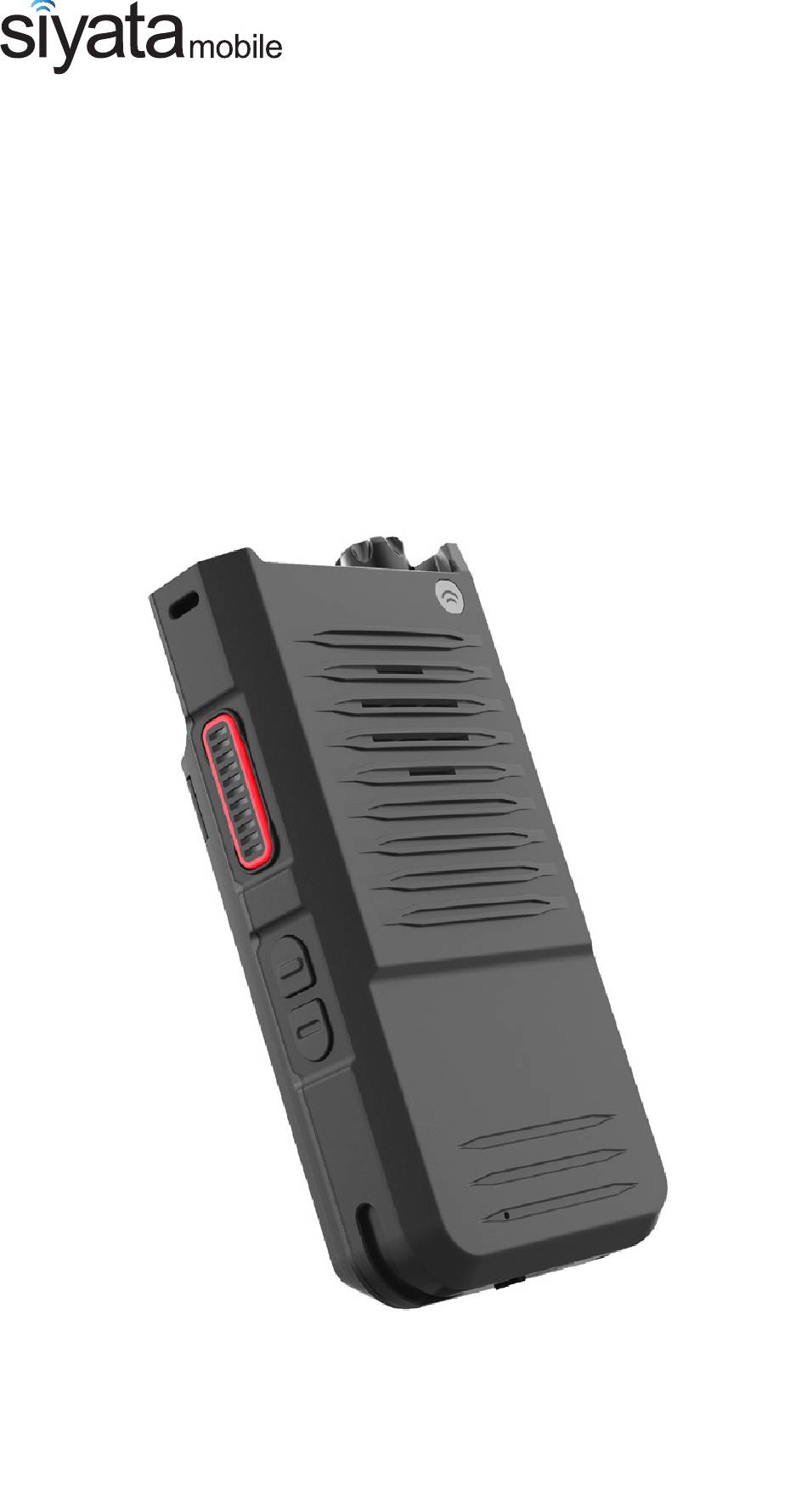

Page 1 User Guide...

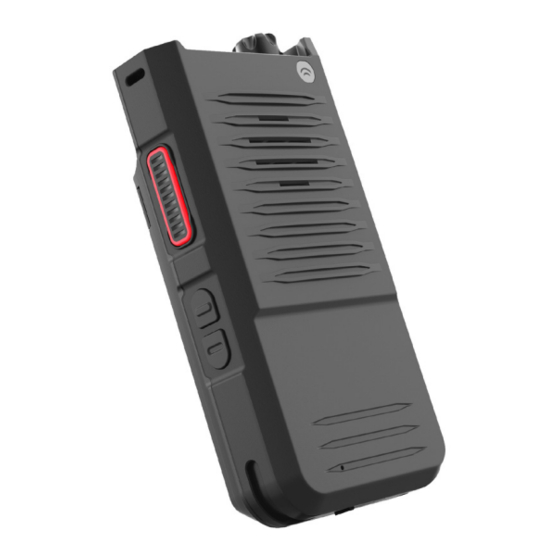

Page 2 4G LTE Rugged, Simple and Highly Functional MCPTT Device DEDICATED PTT BUTTON Comfortable Rotary knob for channel selection 2.5 Watt LOUD SPEAKER ENSURES EXCELLENT SOUND QUALITY Qualcomm SDM660 Octa-core ARM Cortex-A53 64-Bit, 1.8GHz Siyata customized Android 9.0 IP68 Rugged IP68 rated design * Additional Accessories Available Mission Critical Push-to-Talk (MCPTT) Push-to-Talk (PTT)
Page 3 Thank you for purchasing SD7 The SD7 is an LTE rugged device. This powerful device is based on a Qualcomm chipset supporting 4G LTE. This IP68 device boasts 4G speed, crystal clear cellular call quality via a loud speaker, dedicated PTT and SOS buttons, multifunction rotary knob button and more.
Page 4: Table Of Contents
Table Of Contents Keys and Connectors .......... 6 Getting started ..........8 2.1 Set-up ..............8 2.2 Power on/Power off the device ......9 2.3 Rotary knob ............10 2.4 Display ..............11 2.5 S.O.S button settings ........... 12 2.6 Edit text ............... 12 Troubleshooting ..........
Page 5 Box Content Your purchased SD7 kit includes the following original items:  SD7 Device  Battery  Power adapter  USB Type-C cable  User Guide Note: We have made every effort to ensure that the product arrives complete and in working order. If you discover any problems with this product, please contact the point of sale immediately.
Page 6: Keys And Connectors
1 Keys and Connectors...
Page 8: Getting Started
2 Getting started 2.1 Set-up Removing the battery Pushing both sides of Battery Latches, pull out the battery. Inserting and Removing the Nano SIM cards Power off your device before inserting or removing the SIM cards. Slide up the SIM tray holder in order to open it and place the SIM cards with the gold contacts facing down.
Page 9: Power On/Power Off The Device
Installing and removing the microSD card Push the microSD tray holder left to open it and place the card with the gold contacts facing down. Make sure that it is correctly inserted. Close and lock the tray holder over the microSD card. To remove the card, release the tray holder to open and remove the microSD card.
Page 10: Rotary Knob
2.3 Rotary knob The SD7 rotary knob can be used by rotating left and right to select channels or scroll through the menus. By pressing down the rotary knob it acts as selection and menu. In addition, the rotary knob can also be used by pressing and rotating at once for additional functions (default is set to volume up and down).
Page 11: Display
2.4 Display The SD7 display screen shows basic information and simple device menu display. Your home screen shows date, time, battery and signal information. From the home screen, press the rotary knob to enter the device menu and navigate through the menu using the rotary knob.
Page 12: Button Settings
2.5 S.O.S button settings To use the SOS button, you must set it for the first time. Go to device menu > SOS > Mode. Press SOS button action and select an option: • PTT SOS In this mode the SOS button is assigned to the PTT app (when using app supporting this button).
Page 13: Troubleshooting
3 Troubleshooting Before contacting the service center, you are advised to follow the instructions below: • Fully charge the battery for optimal operation. • Avoid storing large amounts of data in your device as this may affect its performance. Carry out the following checks: My device is frozen or cannot switch on •...
Page 14 • When abroad, check that the voltage input is compatible My device cannot connect to a network • Try connecting in another location • Verify the network coverage with your operator • Check with your operator that your SIM card is valid •...
Page 15: Safety Use
4 Safety use We recommend that you read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. Traffic Safety Given that studies show that using a mobile device while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...),...
Page 16 Conditions of Use You are advised to switch off the device from time to time to optimize its performance. Switch the device off before boarding an aircraft. Switch the device off when you are in healthcare facilities, except in designated areas. As with many other types of equipment now in regular use, mobile devices can interfere with other electrical or electronic devices, or equipment using radio...
Page 17 etc). The manufacturer’s recommended operating temperature range is -20°C to +60°C, humidity 20%- 90%. At over 60°C the legibility of the device’s display may be impaired, though this is temporary and not serious. Emergency call numbers may not be reachable on all cellular networks.
Page 18 flashing-lights feature on your device. Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the devices. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation.
Page 19 Safety instructions for Lithium batteries Warning! Improper battery replacement may cause an explosion. Replace the battery only with a similar or equivalent battery. Before extracting the battery from the device, make sure that it is turned off. Follow these instructions: •...
Page 20 In European Union countries: These collection points are accessible free of charge. All products with this sign must be brought to these collection points. In non-European Union jurisdictions: Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities;...
Page 21 • In order to decrease the risk of damage to the electric cable, do not disconnect the charger from the socket by pulling the cable. Grip the charger itself and pull it out of the socket. • Make sure the cable is routed in such a way as to avoid the risk of someone stepping on it or falling over it.
Page 22 Disclaimer There may be certain differences between the user manual description and the device’s operation, depending on the software release of your device or specific operator services. Warning: The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this mobile device or use contrary to the instructions contained in this manual.
