Summary of Contents for Equator BCR 500

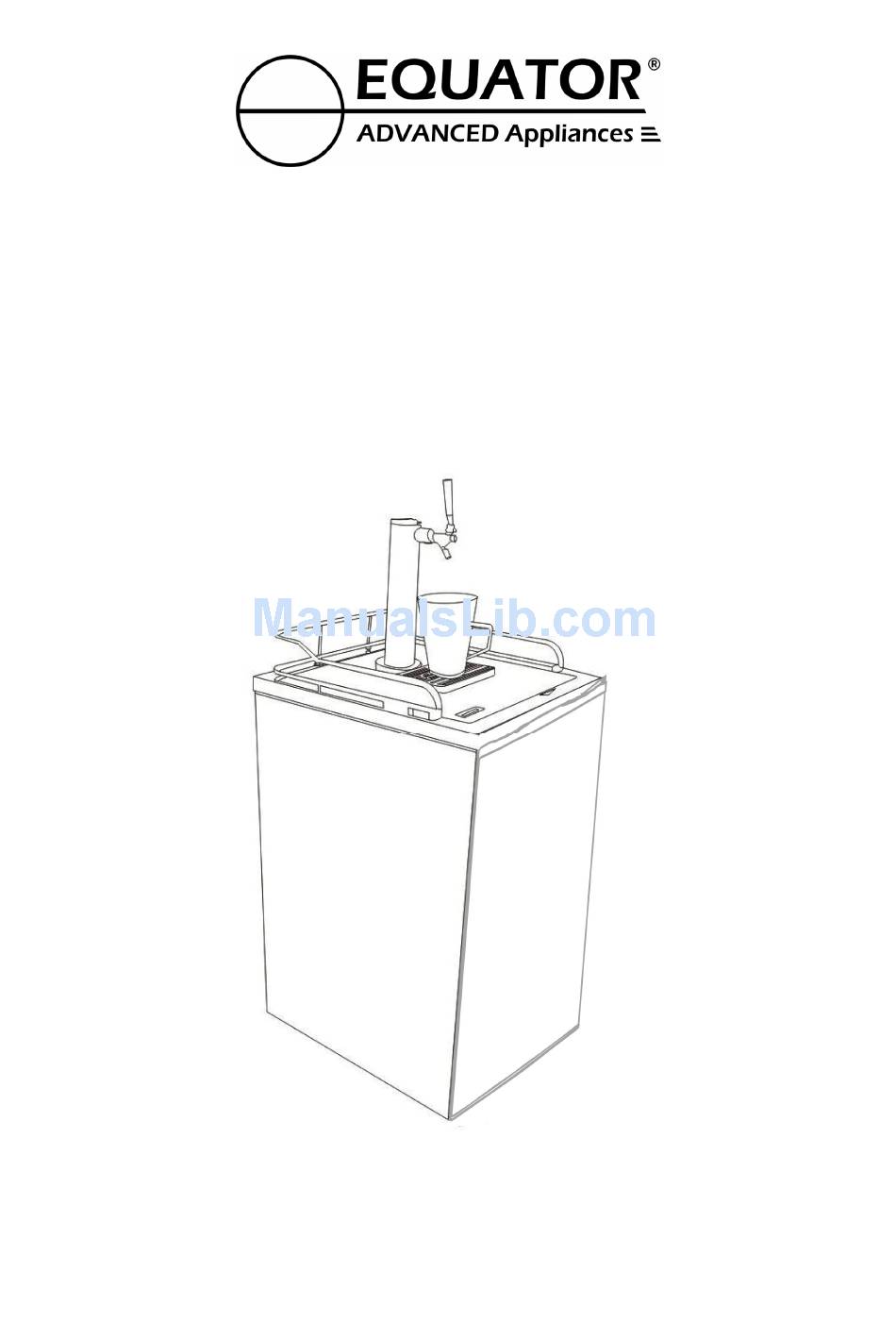

- Page 1 BEER COOLER Model No. BCR 500 OWNER’S MANUAL To ensure proper use of this appliance and your safety, please read the following instructions completely before operating this appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warranty Information _____________________________________________ 3 - 4 Names of the Parts _________________________________________________ 5 Important Safety Instructions _________________________________________ 6 Installation Instructions _____________________________________________ 7 Before Using Your Beer Cooler _______________________________________ 7 Installation of Your Beer Cooler ____________________________________ 7 - 8 Electrical Connection _______________________________________________ 8 Installation Instructions for Beer Keg ______________________________ 9 - 12 Dispensing of Beer ________________________________________________ 13... -
Page 3: Warranty Information
EXCLUSIONS In no event shall the Equator Advanced Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts God. This warranty does not cover service calls which do not involve defective workmanship or materials covered by this warranty. - Page 4 Since it is responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, the Equator Advanced Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose. Remember to send in your Warranty Registration Card so that a proof of your purchase exists with the Equator Advanced Appliances.
-
Page 5: Names Of The Parts
NAMES OF THE PARTS MODEL NO.: BCR500 Beer Tower Plastic Gasket Safety Guard Rail Drip Tray Adjustable Thermostat Regulator Gas Cylinder Gas Cylinder Support Evaporator Reversible Door Beer Keg (not included) Metal Plate Metal Gasket(2) Casters with Lock (4) -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING · Read all instructions before using the unit. · DANGER or WARNING: Risk of child entrapment. · To avoid the possibility of child entrapment, please take the following precautions before throwing out the appliance. - Remove all doors from the unit. - Leave the shelves in place so that children may not easily climb inside. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Ø Before Using Your Beer Cooler · Remove the exterior and interior packing. · Check to be sure you have all of the following parts: · Instruction manual · 1 Safety Guard Rail · 1 Drip Tray (2 Pieces) ·... -
Page 8: Electrical Connection
Ø Electrical Connection Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center. This Beer Cooler should be properly grounded for your safety. The power cord of this Beer Cooler is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock. -
Page 9: Installation Instructions For Beer Keg
INSTALLATION INSTRUCTIONS FOR BEER KEG Installation Diagram Installing the Casters • Install the four casters with lock provided into the unit’s bottom (four screw holes pre-supplied) The two metal gaskets are used for the front two Casters. (I) Before Installation CASTER (II) Installation with Casters... - Page 10 Installing the CO Cylinder Support · Install the metal support provided onto the 4 studs located on the exterior back wall. Align the holes in the support with the studs and push down firmly. (See Figure 1) Installing the CO Cylinder ·...
- Page 11 Installing the Beer Keg · Position the beer keg directly in front of the open door. Using keg handles only, carefully lift the beer keg. (See Figure 5) · To place the beer keg inside the cabinet, brace your knees behind the beer keg. Lift the front of the keg just enough so the front edge of the keg is resting on the front edge of the Beer Cooler bottom cabinet.
-
Page 12: Plastic Faucet Lever
Ø Spanner Faucet Wrench Spanner faucet wrench provided for either removing or tightening connection Ø Plastic Faucet Lever Attach the black plastic lever (pull handle) provided on the top of the faucet tightening it by hand clockwise until the end, holding in the silver snug underneath so it does not move. -
Page 13: Dispensing Of Beer
DISPENSING OF BEER · Keep beer keg refrigerated at all times. · Never allow beer lines to dry out. · Use clean beer glassware before pouring. · Hold glass at a 45° angle when 2/3 full, start to straighten glass as the glass fills. ·... -
Page 14: Converting To An All Refrigerator
Ø Converting To An “All Refrigerator” 1. Turn off the control knob to the “OFF” position. 2. Close the main valve on the CO cylinder. 3. Close the secondary shut-off valve on the regulator pipe. 4. Close the connection between the beer keg and the keg coupler. 5. -
Page 15: Changing The Reversible Door
CHANGING THE REVERSIBLE DOOR This Beer Cooler has the capability of either opening the door from the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow below instructions. -
Page 16: Care And Maintenance
CARE AND MAINTENANCE Ø Cleaning Your Beer Cooler · Turn the temperature control to "OFF", unplug the Beer Cooler, and remove the contents. · Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. -
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE You can solve many common Beer Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM Beer Cooler does not operate. Turns on and off frequently. - Page 18 Equator Advanced Appliances 10216 Georgibelle Suite 900D Houston, TX 77043-2459 (Tel): 713-464-3422 (Fax): 713-464-2151 www.EquatorAppliances.com SERVICE & SUPPORT: custserv@ApplianceDesk.com (800) 776-3538 www.ApplianceDesk.com All rights reserved. Manual subject to change without notice...
