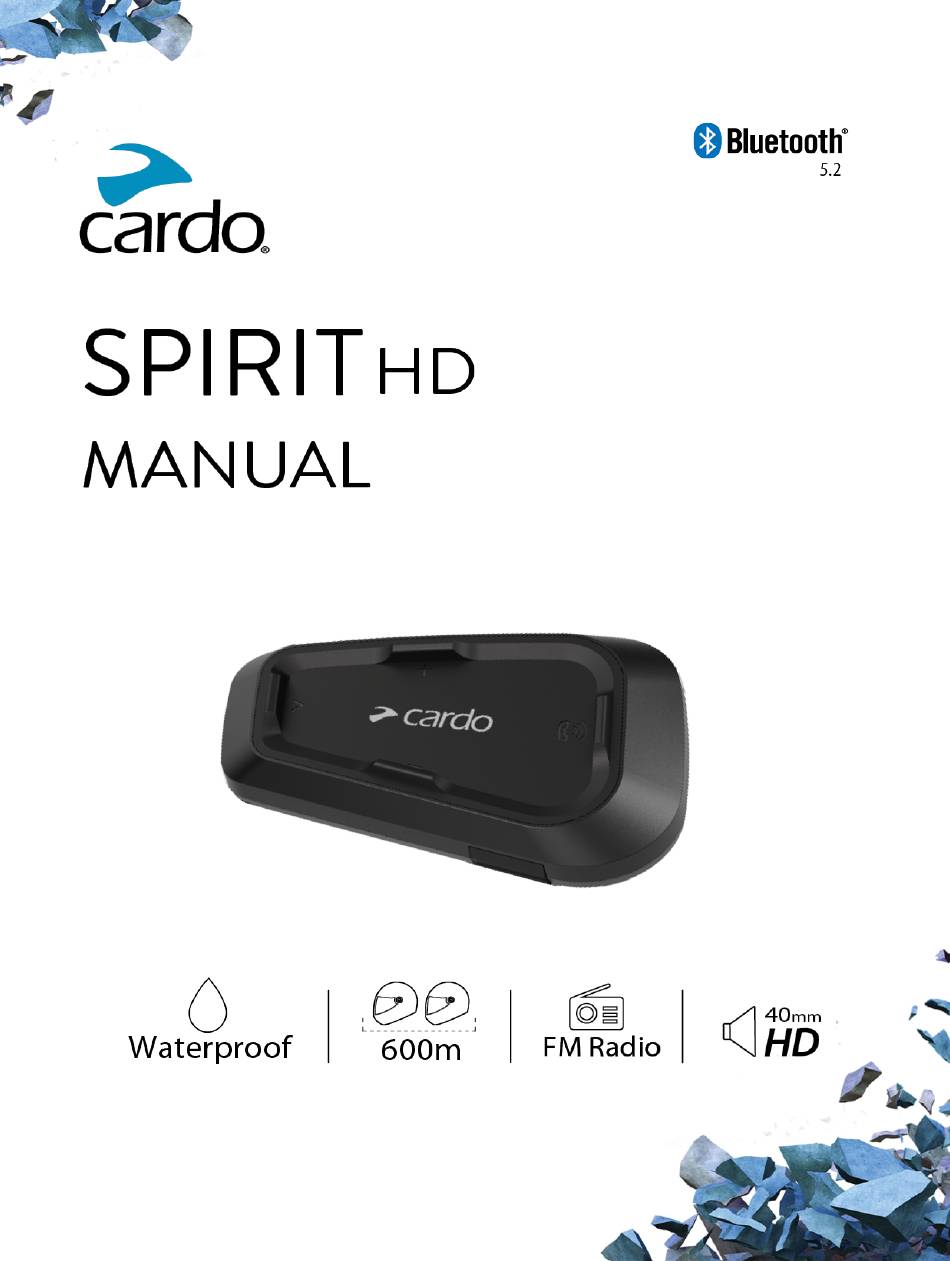

Cardo Systems SPIRIT HD Manual
  1. Manuals
  2. Brands
  3. Cardo Systems Manuals
  4. Speakers
  5. Spirit HD
  6. Manual

Cardo Systems SPIRIT HD Manual

Hide thumbs Also See for SPIRIT HD:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPIRIT HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cardo Systems SPIRIT HD

Summary of Contents for Cardo Systems SPIRIT HD

  • Page 2: Table Of Contents

    CONTENTS 1. Introduction 2. Getting Started 2.1 Getting to Know Your SPIRIT HD 2.2 Charging Your SPIRIT HD 2.3 Switching Your Unit On/Off 2.4 Using Your SPIRIT HD 2.5 Pairing Your Unit to Bluetooth Devices 3. Cardo Connect App 3.1 Registering your unit 3.2 Updating your unit...

  • Page 3: Introduction

    If you have not yet installed the SPIRIT HD unit on your helmet, please install it as described in the Installation Guide provided in the package. You can also watch the installation video accessible on that link www.cardosystems.com/spirit-installation/...

  • Page 4: Getting Started

    ● To charge the unit: Using the supplied USB cable, connect your computer or wall charger to the USB port on your SPIRIT HD. Fast charging You will have 2 hours of talktime after 20 mins of charging. (1.5 - 2 hours for full charge).

  • Page 5: Switching Your Unit On/Off

    ● 2.5 PAIRING YOUR UNIT TO BLUETOOTH DEVICES Your SPIRIT HD has two Bluetooth channels for connection to Bluetooth devices such as mobile phones, GPS devices, and Bluetooth music players with A2DP. To connect your unit to a Bluetooth device, you must first pair them. Once paired, they automatically recognize...
  • Page 6 The LED flashes red and blue. On your mobile phone, search for Bluetooth devices. When your SPIRIT HD appears in the list of available devices, select it. If prompted for a PIN or Passkey, enter 0000 (four zeros). The phone confirms that pairing has succeeded and the LED flashes purple for 2 seconds.
  • Page 7 If pairing is not completed within 2 minutes, the unit automatically returns to Standby. ● Not all Bluetooth mobile phones broadcast Bluetooth Stereo music (A2DP) even if the phone has an MP3 ● player function. Consult your mobile phone’s user manual for more information. Not all Bluetooth GPS devices allow connection to Bluetooth audio devices.

  • Page 8: Cardo Connect App

    3. CARDO CONNECT APP The Cardo Connect App enables you to configure the settings of your SPIRIT HD. In addition, the App offers you remote controlled operation from the screen of your smart.phone. 3.1 REGISTERING YOUR UNIT Download the Cardo Connect App.

  • Page 9: Updating Your Unit

    Updating with the latest software keeps your unit free of bugs and provides you with additional new functionalities. Your SPIRIT HD can be updated Over the Air, via Cardo Connect app. To update your SPIRIT HD unit with the Cardo Connect App: Whenever a new software update is available, a pop-up will open on your App screen.

  • Page 10: On The Road

    4. ON THE ROAD SPIRIT HD makes it easy for you to receive phone calls and listen to music in a convenient and safe manner. 4.1 BASIC AUDIO FUNCTIONS The basic audio functions are the same whether you are listening to music, speaking on the intercom, or having a phone conversation.

  • Page 11: Streaming Music

    Tap volume down ● To end a call: Tap the mobile button ● 4.3 STREAMING MUSIC You can stream music from your paired device to your SPIRIT HD. To start music streaming from your paired device: Tap the Media Button ●...

  • Page 12: Listening To Fm Radio

    To skip back to the previous track (while streaming): Tap the media button twice. ● 4.4 LISTENING TO FM RADIO The SPIRIT HD is equipped with a built-in FM radio. To turn on the FM radio: for 2 secondsor say "Hey Cardo, radio on" . ●...
  • Page 13 When you switch on your FM radio, the station that was playing when you last switched off resumes playing. To turn the FM radio off: once. ● To skip to the next station: once or say "Hey Cardo, next station". ● To skip back to the previous station: twice or say "Hey Cardo, previous station.
  • Page 14 To scan for and select a station: 3 times. The FM radio plays each station that it finds for several seconds. When you hear a station you want to select, tap To store a scanned station in the active preset: Use the Cardo Connect App on your mobile device. ●...

  • Page 15: Switching Music Sources

    4.5 SWITCHING MUSIC SOURCES If two music (A2DP) audio sources are paired, SPIRIT HD uses the audio source from which you last played music. To switch to the other audio source: Stop music (A2DP) playback from the current device. Play music (A2DP) from the other device.

  • Page 16: Riding With Others

    Pairing a channel replaces any existing paired unit on that channel with the new unit. ● If you purchased the SPIRIT HD DUO, the retail package contains two pre-paired units. ● The Intercom range with other models is limited to the distance of the unit with the shorter range.

  • Page 17: Using The Bluetooth Intercom

    5.1.2 USING THE BLUETOOTH INTERCOM 5.1.2.1 STARTING/ENDING BLUETOOTH INTERCOM CALLS To start or end communication with a rider or passenger: Press for 2 seconds . ● If channels A and B are already paired the conversation starts for both of them. 5.1.2.2 RECEIVING BLUETOOTH INTERCOM CALLS If another paired unit calls you via Bluetooth intercom, the call begins instantly.

  • Page 18: Troubleshooting

    This option deletes all paired devices and all configuration settings. To perform a factory reset through the unit: Check that your SPIRIT HD is in Standby mode (see SPIRIT HD Modes and Events - LED Indications). Simultaneously press for 5 seconds.

  • Page 19: Personalizing Your Device

    7. PERSONALIZING YOUR DEVICE Get the most out of your SPIRIT HD by changing the settings and customizing your unit according to your own personal preferences, using either of the following methods: Cardo Connect App on iOS or Android devices.

  • Page 20: Using Parallel Audio Streaming

    Parallel audio streaming may not work properly with some iOS devices (i.e., music player or GPS navigator) ● due to connected device limitations. Your SPIRIT HD sets the various audio sources to either foreground (volume remains the same) or background (volume reduced) as described in the following table: Mobile Phone 1/2...
  • Page 21 Priority Audio Source Higher Priority Mobile phone, GPS device instructions ↑ Intercom or Music Lower Priority Music or Intercom FM Radio Phone calls and GPS temporarily mute intercom, but group members remain part of the intercom group. When audio priority is set to Intercom, you cannot hear navigation app or SMS messages from your phone during an ongoing intercom call.

  • Page 22: Glossary

    8. GLOSSARY Term/Abbreviation Description A2DP Advanced Audio Distribution Profile (for music). A protocol for playing music over Bluetooth. AGC sensitivity AGC (Automatic Gain Control) automatically adjusts speaker volume and microphone sensitivity according to ambient noise and riding speed. Device Mobile phone, GPS or music player. Voice announcements.

  • Page 23: Support

    All rights reserved. Cardo, the Cardo logo and other Cardo marks are owned by Cardo and may be registered. All other trademarks are the property of their respective owners. Cardo Systems assumes no responsibility for any errors that may appear in this document. Information contained herein is subject to change without notice.
