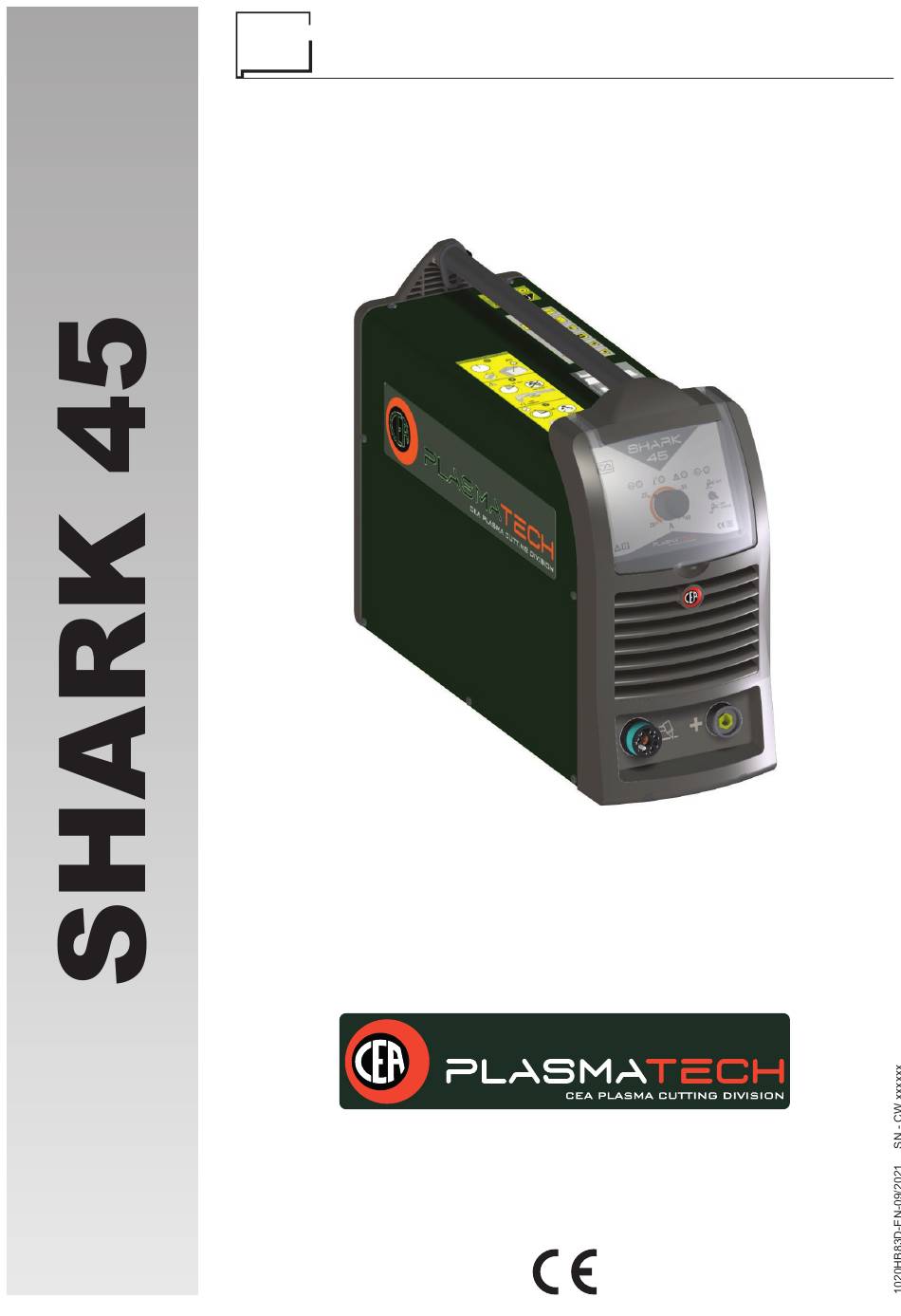

- Page 1 Operator’s manual READ CAREFULLY CEA COSTRUZIONI ELETTROMECCANICHE ANNETTONI S.p.A. C.so E. Filiberto, 27 - 23900 Lecco - Italy Tel. ++39.0341.22322 - Fax ++39.0341.422646 Cas. Post. (P.O.BOX) 205 e-mail: cea@ceaweld.com - web: www.ceaweld.com...
-
Page 2: Table Of Contents

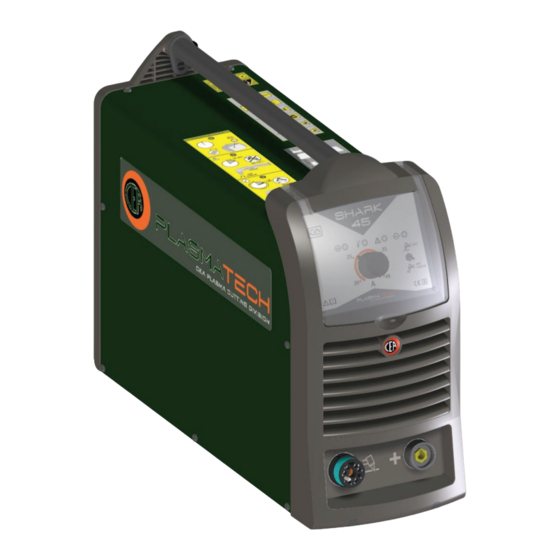

ENGLISH Description Introduction Description Powerful, light, and easy to manage, the SHARK 45 is an ef- fective solution for manual cutting of any metal and perforated Usage limits (IEC 60974-1) plating. It is ideal for panel beating work, metalwork, industry and maintenance tasks. -
Page 3: Technical Data
• Signalling, control and telephone cables. • SHARK 45 cutting units. • Radiotelevision transmitters and receivers. • Plasma torch with centralised attachment and spare parts kit. • Computers or controlling and measuring instrument. -
Page 4: Connection To The Electrical Supply (Fig. A)
• The third, which is YELLOW GREEN in colour is used for making the “EARTH” connection. Table 2 shows the capacity values that are recommended for fuses in the line with delays. Table 2 Model SHARK 45 FIG. A Single-phase power supply 50/60 Hz ±15% ±15% Power input @ I... -
Page 5: Connection Of Plasma Torch And Ground Wire
CONTROL PANEL (Fig. C) Pos. 1 Cutting current adjustment knob. Pos. 2 White LED - power supply on. When on the system is powered and ready for use. Pos. 3 Yellow LED with dual function and protection: THER- MOSTAT and OVERCURRENT. •... -
Page 6: Connection Of Compressed Air
Connection of compressed air Connect the compressed air hose to the rapid coupling on the back of the plant (Pos. 6, Fig. B). The system must be fed with a constant flow of air at about 5 bar and with a minimum flow capacity of 150 liters per minute. -
Page 7: Maintenance
Maintenance ATTENTION: Cut off the power supply to the equipment be fore effecting any internal inspection. SPARE PARTS Original spares have been specifically designed for our equip- ment. The use of spares that are not original may cause variations in the performance and reduce the safety level of the equip- ment. -
Page 8: Troubleshooting Table
Troubleshooting table Defect Cause Remedy White LED that indicates • Cutting plant power supply cable not • Connect the cutting plant power supply that the power supply is connected to the mains power supply cable to the mains power supply on (Pos. -
Page 9: Common Cutting Defects
Common cutting defects Defect Cause Remedy Insufficient penetration • Cutting speed too high • Reduce speed • Current too low • Increase current • Ground wire connected wrong • Check ground wire connection Main arc goes out • Cutting speed too slow •... -
Page 10: Wiring Diagram
Wiring diagram 2101EA58... - Page 11 Lista ricambi LEGGERE ATTENTAMENTE Spare parts list READ CAREFULLY Liste pièce de rechange LIRE ATTENTIVEMENT Ersatzteilliste SORGFÄLTIG LESEN Lista repuestos LEER ATENTAMENTE Onderdelenlijst EERST GOED DOORLEZEN Lista de peças de substituição LER ATENTEMENTE Liste over reservedele LÆS OMHYGGELIGT Reservdelslista LÄS NOGAS Varaosaluettelo LUE HUOLELLISESTI Reservedelliste...
-
Page 12: Shark 45
EN Spare parts list NL Onderdelenlijst FI Varaosaluettelo FR Liste pièces de rechange PT Lista de peçãs de substituiçao Reservedelliste DE Ersatzteilliste DA Liste over reservedele RU Список запчастей SHARK 45 SHARK 45 Pos. Descrizione Description 230 V 115/230 V 439398 439398A... -
Page 13: Pos
352377 352377 Pannello posteriore Rear panel 427895 427895 Pressacavo linea Main cable clamp 235942 235960 Cavo linea Main cable Steel cover complete with logo 420483 420483 Coperchio completo logo PLASMATECH PLASMATECH stickers 468750 468750 Adesivo logo PLASMATECH Sticker logo PLASMATECH... -
Page 14: Pos
SHARK 45 SHARK 45 Pos. Descrizione Description 230 V 115/230 V 413452 413452 Cablaggio attacco centralizzato torcia Plasma Central connection Plasma torch wiring 425944 425944 Elettrovalvola Air solenoid valve 453249 453249 Pressostato Pressostat switch 404898 404898 Basamento metallico Steel base... -
Page 15: Pos
SHARK 45 SHARK 45 Pos. Descrizione Description 230 V 115/230 V 485497 485497 Tubo rilsan Ø8 Ø8 rilsan hose 486373 486373 Ventilatore 241267 241267 Assieme inverter di potenza Power inverter assembly Isolamento scheda inverter Power inverter electric insulation 353055 353055... - Page 16 4) Selve svejsemaskinens registreringsnummer EXAMPLE EKSEMPEL N. 2 pieces code n. 352419 - for SHARK 45 - 115/230 V - 50/60 Hz - Serial number ............2 stk. nummer 352419 - til anlæg model SHARK 45 - 115/230 V - 50/60 Hz FR Commade des pièces de rechange...
- Page 17 CEA COSTRUZIONI ELETTROMECCANICHE ANNETTONI S.p.A. C.so E. Filiberto, 27 - 23900 LECCO - ITALY Cas. Post. (P.O. BOX) 205 Tel. +39 0341 22322 - Fax +39 0341 422646 cea@ceaweld.com www.ceaweld.com...
