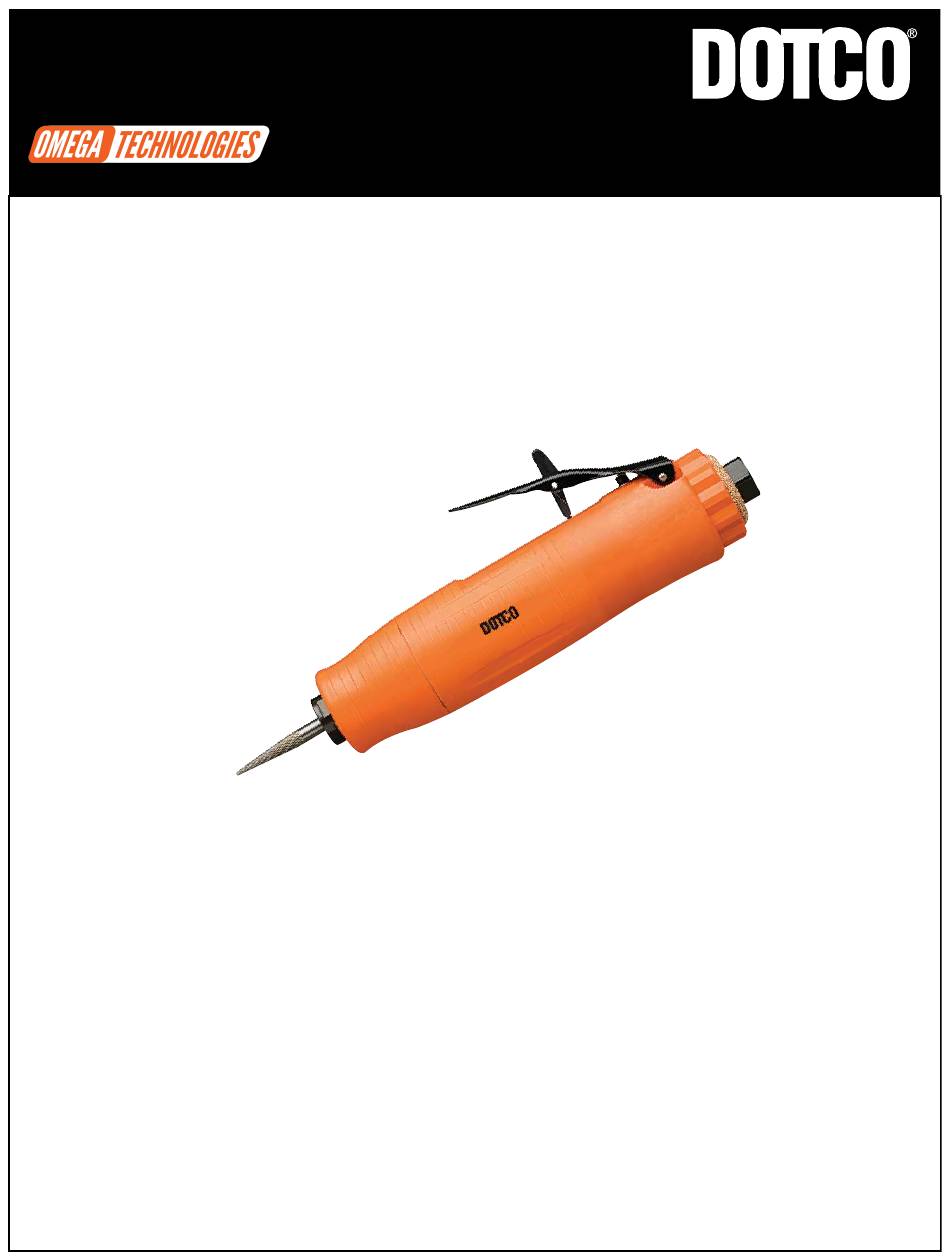

- Page 1 Parts Manual 45-8165EN 12/04/2015 12-25 Series Inline Grinders & Sanders For additional product information visit our website at: https://dotcotool.com/product-category/dotco-air-tools/dotco-grinders/dotco-inline-grinders/dotco-12-25-series-inline-grinders/...
- Page 2 45-8165EN Dotco ® 12/04/2015 Nomenclature Product Classification 12 = Ergonomic Grinder/Sander Throttle Type L = Locking Lever S = Locking Lever Motor Size 2 = 0.9 hp Handle Style 5 = Straight Speed Options (RPM) Front Exhaust Rear Exhaust 00 = 23,000...
- Page 3 45-8165EN Dotco ® 12/04/2015 Description Air Line Lubrication: The original language of this manual is English. Product Safety Information: Use Apex Tool Group, LLC or Apex Tool Group GmbH & Co. OHG’s lightweight air tool oil (available Intended Use: in quantities shown in the following chart) or an SAE-5 This pneumatic grinder is to be used only for removing lightweight spindle oil.
- Page 4 45-8165EN Dotco ® 12/04/2015 Handle and Motor Assembly “A” Front Exhaust Rear Exhaust Rear Exhaust with Overhose Front Exhaust Rear Exhaust Page 4...
- Page 5 45-8165EN Dotco ® 12/04/2015 Handle and Motor Assembly Illustration "A" Number Description 14-0851 Housing Wrench Table "A" Inlet Adapter 01-2506 Exhaust Plug 2965PT O-Ring 3036PT O-Ring 01-2520 Diffuser 01-1032 Muffler 01-2519 Valve Spring 01-2518 Valve 01-2504 Valve Seat 1042 Lever Pin...
- Page 6 45-8165EN Dotco ® 12/04/2015 Terminations “B” Termination -01 (200 series collet) Termination -36 (300 series collet) Termination -77 (cone and plug wheel) Page 6...
- Page 7 45-8165EN Dotco ® 12/04/2015 Terminations Illustration "B" Number Description Termination: -01 (200 Series Collet) 2054 Chuck Body Table "B" Collet (1/4" Standard) 2058PT Collet Cap 14-0809 Wrench (9/16") 14-0812 Wrench (3/4") Termination: -36 (300 Series Collet) 1400PT Chuck Body Table "B1"...
- Page 8 POWER TOOLS SALES & SERVICE CENTERS Please note that all locations may not service all products. Contact the nearest Apex Tool Group Sales & Service Center for the appropriate facility to handle your service requirements. NORTH AMERICA | SOUTH AMERICA Detroit, Michigan Louisville, Kentucky Lexington, South Carolina...
