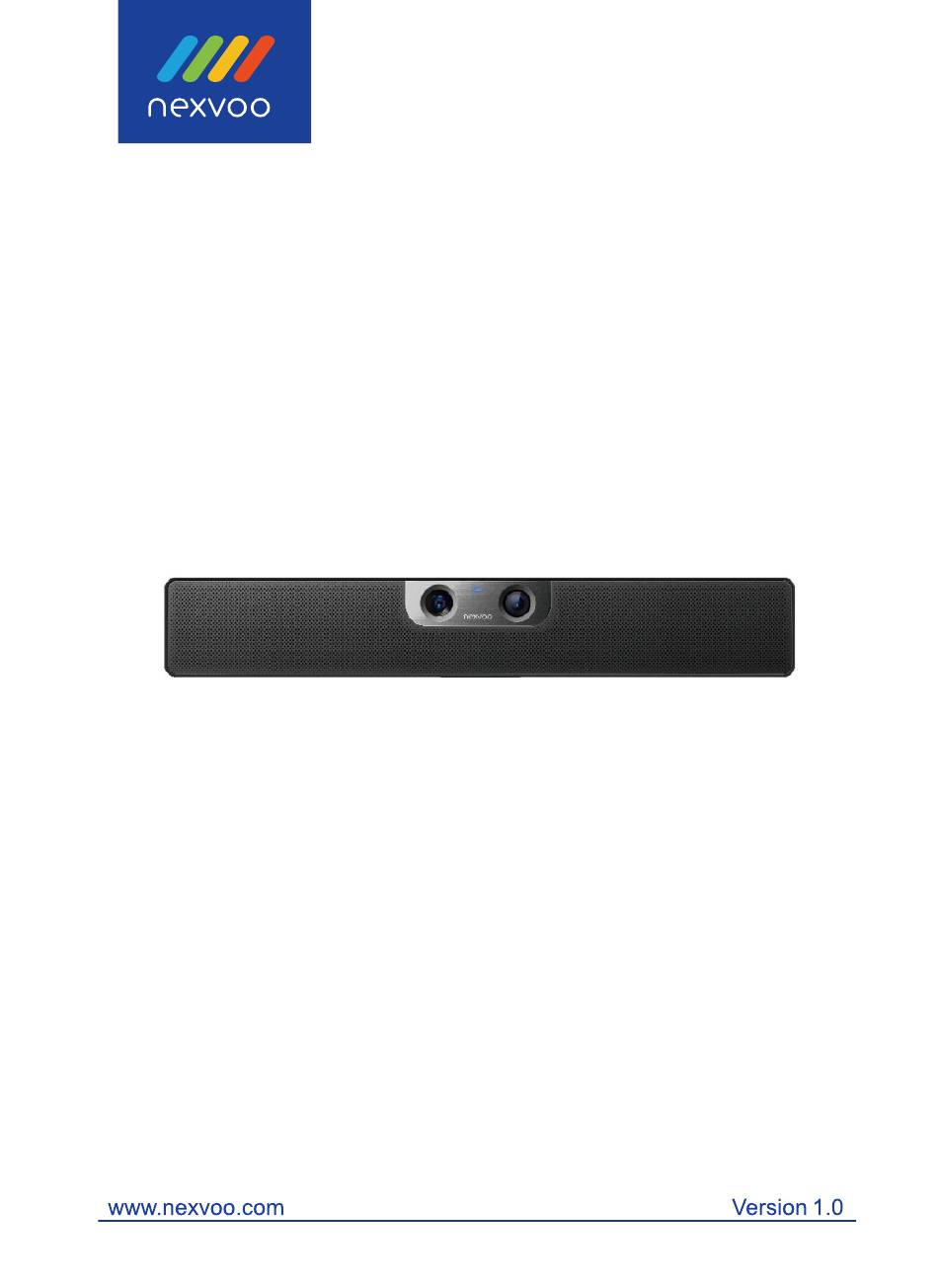

- Page 1 Nexvoo DoubleView USB Video Bar User Manual （Model: N120U)
- Page 2 Nexvoo DoubleView N120U Collaboration System DoubleView N120U is a compact and highly capable meeting device designed and engineered for a medium-sized conference room. The DoubleView N120U is a Dual-Cam all-in-one USB video bar that includes combination of cameras (ultra-wide and telephoto lenses), high quality speaker, and 8 microphone arrays.
- Page 3 12V2A DoubleView N120U Remote control Power Adpter 5m+1.8m USB-C cables Nexvoo DoubleView USB Video Bar User Manual （Model: N120U) Mounting Bracket and Accessories in uncertain problems.
- Page 4 DoubleView N120U User Manual H>3.937ft(120cm) H<3.937ft(120cm) Mount the DoubleView N120U below the TV Mount the DoubleView N120U above the TV when the mounting height of the lower side when the mounting height of the upper of the TV is higher than 3.937ft(120cm).
- Page 5 DoubleView N120U...
- Page 7 Nexvoo DoubleView N120U Introduction Camera is off Always on The microphone is muted Blink slowly The AI function is turned off (Blink for 3 seconds) Blink quickly The device is updating the firmware. After turned on, the device is in the initialization...
- Page 8 12V2A Power Adpter Power（12V/2A） USB Type C USB Type A 1 Bluetooth button USB Type A 2 Kingston Lock...
-
Page 9: Remote Control Introduction
Remote Control Introduction Using the remote control to control the equipment can achieve the desired effect. Paring and connection Control function The following figure and table identify the functions of the buttons on the remote control. 1. Mute 2. Camera Preset 1 3. -
Page 10: Web Management
Web Management You can configure the Nexvoo DoubleView USB video bar on the Web management. You can configure the following settings on the Web management. • View device information • The remote control configuration • Camera tracking • Firmware update & reset •... - Page 11 • IP address: 172.16.110.7 • subnet mask: 255.255.0.0 • Default gateway: 172.16.255.255 Click OK to save configuration. Login Web management 1. Start the browser, enter http://172.16.110.6 to open the login interface of the DoubleView Web management platform. 2. Enter the username and password, click "Sign in" to login to the web management platform. (Default username: Admin, Password: 123456)
-
Page 12: View Device Information
Admin ****** Sign in Note: Some browsers may not be fully compatible. It is recommended to use Chrome/Firefox/Microsoft Edge browser etc. View device information You can view the basic information for your DoubleView USB device through Web Management platform. Procedure 1. - Page 13 Procedure 1. Login to the web management platform through a browser. 2. Go to General Settings – Camera Tracking. 3. Control the DoubleView USB device through the following functions: Features Description AI Technology The default is on. After the AI technology is turned on, the device will enable Auto Framing and Speaker Tracking functions.
-
Page 14: Change Your Password
Note: Make sure your computer doesn’t enter sleep mode during the firmware update. Otherwise, the update may fail. Change your password Nexvoo recommends that you change your device’s password from the default for security reasons. Procedure 1. Login to the web management platform through a browser. - Page 15 We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable forproblems with Nexvoo device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.
- Page 16 · · · ·...
-
Page 19: Product Information
Product Information Dimensions · 3.9 x 19.9 x 2.8 inches (H x W x D) · 98 × 505 x 72 mm (H x W x D) Weight · 3.97 lbs / 63.5 oz (1.8 kg) Camera Specs · Video Resolution - UHD 4K@30fps - FHD 1080p@30fps - HD 720p@30fps... -
Page 20: Audio Specs
General Specs · 16ft/5m detachable USB cable for PC or Mac-based video conferencing · Works with most video conferencing applications · Bluetooth Button · Kensington Security Slot Audio Specs · Support full-duplex conversations, acoustic echo cancellation and background noise suppression ·... - Page 21 Email: support@nexvoo.com...
