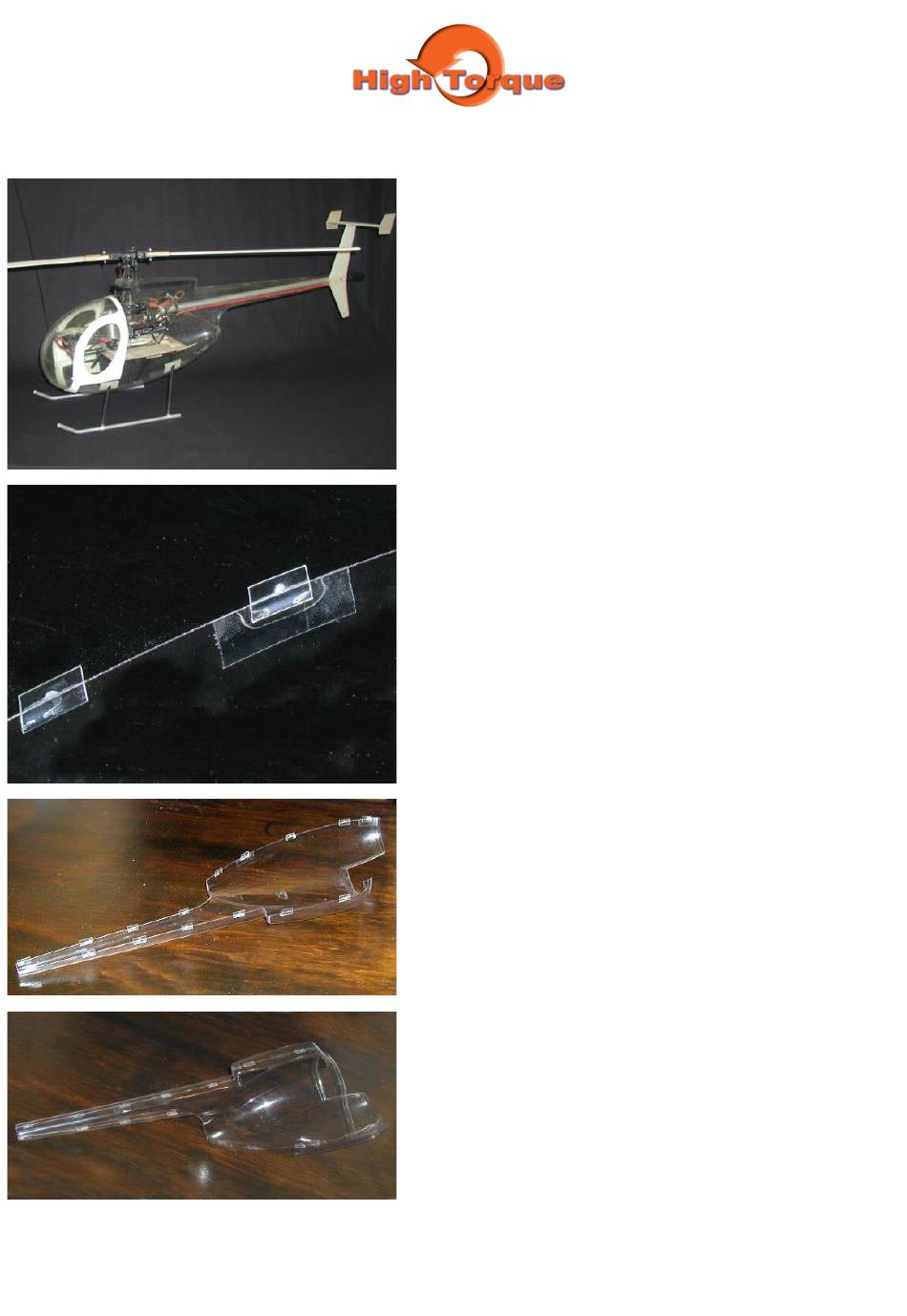

Building instructions for the Hughes 500 for ECO8 & Logo 10
Congratulations on your purchase of this Kit.
With very little trouble you can convert your model into a beautiful
Hughes 500.
We do not recommend that you use any activator/accelerator with
the adhesive on this material. The heat generated by the activator
has a tendency to distort the material.
It is advisable to test all of your adhesives and paint/lacquers on a
piece of the material supplied before use.
The fuselage halves have been pre trimmed and only require to be
de burred, before joining together.
From the piece of material supplied, cut small join plates as shown
and hold in place using sellotape. The intervals are shown in the
next photograph.
Glue these plates in place using a small drop of viscous (thick)
superglue.
When dry the sellotape can be removed.
The two halves can now be joined together at regular points using
superglue, a rod should be used to exert any pressure required
from the inside on each joint. When set, run around the join with
thin superglue, and smooth the join with a palette knife.
H001 Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hughes 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for High Torque Hughes 500

  • Page 1 Building instructions for the Hughes 500 for ECO8 & Logo 10 Congratulations on your purchase of this Kit. With very little trouble you can convert your model into a beautiful Hughes 500. We do not recommend that you use any activator/accelerator with the adhesive on this material.
  • Page 2 The nose section consists of four separate pieces, a mounting piece, shown in white in the illustration, two side windows and a front window. The mounting piece should be trimmed and smoothed along its marked lines. The windows should be trimmed at approximately 5-10mm outside their markings to allow an overlap for glueing in place.
  • Page 3 Prepare the front mounting section by fixing 5 of the magnets provided, in the positions shown, two on the RH side, two on the LH side, one in the lower centre, utilize small balsa pieces to mount the magnets. Rough the faces of the magnets before glueing. Align the mounting piece with the fuselage and mark the points at which the internal magnets are to be fixed.
  • Page 4 Google under “pictures” and search word “Hughes 500”, a number of different colour finishes will be displayed. Thank you for your purchase. We are sure that you will get a lot of enjoyment from your Hughes 500. H001 Page 4 of 4...
