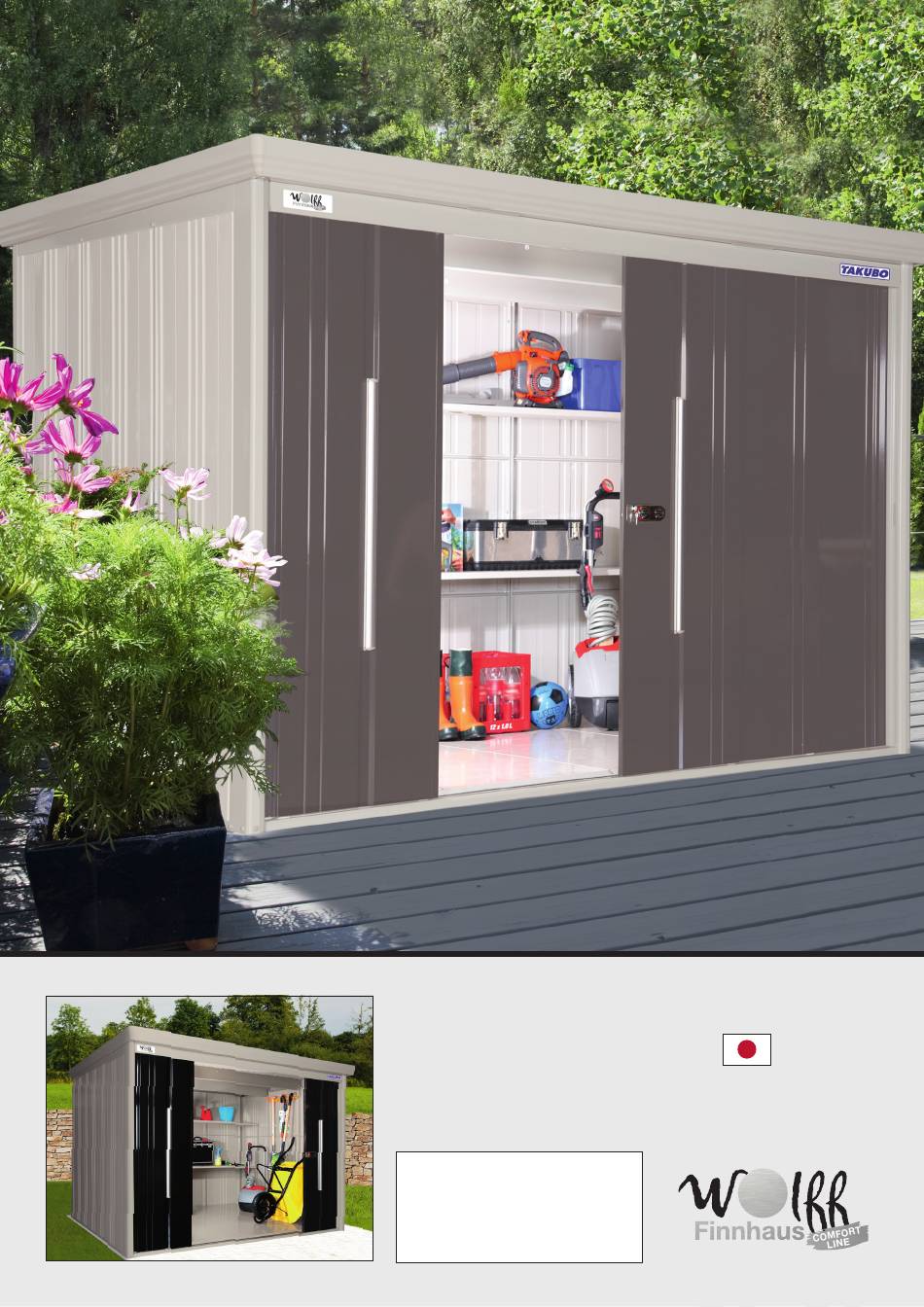

- Page 1 Assembly instructions osAKA Assembly instructions Top quality from Japan Metal shed Osaka The assembly video can be found on: www.finnhaus.de 029220|14...
-
Page 2: Required Accessories
Assembly instructions osAKA Assembly oF tHe bAsement AnD cross-beAm The basement and the cross-beam must be layed together as in the plan. required accessories Pce no. Article To guarantee the shed Base frame, in front stands correctly it requires a good found- Base frame, left ation. - Page 3 Assembly instructions osAKA FittinG oF tHe bAse FrAme AnD tHe cross-beAm Attention: Please insure that all the base frame parts are level, so that after completion the door opens and closes easily. required accessories After the frame has been checked that it is level the two Pce no.
- Page 4 Assembly instructions osAKA Assembly oF tHe corner post required accessories Attention: To maintain that everything is at a right angle Pce no. Article check the length of diagonals are exactly the Corner post, front left same. Corner post, front right Please check that all the edges of the frames Corner post, rear left are together.
- Page 5 Assembly instructions osAKA Assembly oF tHe reAr AnD Front rooF FrAme After fitting the rear top framework please fit the smaler required accessories rubber grommets (these holes are for electric cable). Pce no. Article Roof frame, rear Roof frame, front Rubber plug, small Short screws Rubber plug,...
- Page 6 Assembly instructions osAKA Assembly oF tHe leFt AnD riGHt DecorAtiVe coVer required accessories Pce no. Article Decorative cover, left Decorative cover, right Short screws short screws short screws Front view...
- Page 7 Assembly instructions osAKA Assembly oF tHe centrAl WAll strenGtHeners For tHe leFt, riGHt AnD tHe reAr Please fit the wall strengthener provisionaly. required accessories Pce no. Article Screw the metal holder for the gutter to the central post Central wall strengthener, left, right Central wall strengthener, rear...
- Page 8 Assembly instructions osAKA Assembly oF tHe centrAl WAll strenGtHeners in Front required accessories Pce no. Article Central wall strengthener, front Long screws Short screws Long upper Attachement screws Long screws Long screws Short screws lower Attachement Short screws The base of the strengthener is pressed and secured into the third hole of the corner post.
- Page 9 Assembly instructions osAKA Assembly oF tHe GrounD pAnel required accessories Pce no. Article Central Ground panel Ground panel left, right Special screw Special screw Ｂ Ｃ Ａ The front of the ground panel to be mounted Please use the special srews. over ledge of gutter.
- Page 10 Assembly instructions osAKA Assembly oF tHe rooF pAnels required accessories Pce no. Article Roof panel, big A bag with each roof Short screws Rear panel contains seven snow plugs. Remove Snow plug (4 Bags) glue covering and fit as shown. Strengthe- ring Fit roof starting on left...
- Page 11 Assembly instructions osAKA Assembly oF tHe rooF stAbiliser required accessories Pce no. Article Lift the roof stabilisator and secure with two long screws central holes. Roof stabiliser Long screws and nuts each with Strengthering of the roof panels long screw Fix both ends of the lower...
- Page 12 Assembly instructions osAKA Assembly oF tHe siDe WAll pAnels beFore AssemblinG required accessories Only the hooks within the red markings can be moved Pce no. Article when the shed is finished. Please decide – before the shed is build up – where the hooks should be. Side wall panel big Hooks out of aluminium Attaching the hooks...
- Page 13 Assembly instructions osAKA Assembly oF tHe siDe WAll pAnels siDe WAll pAnels, reAr Please check the right angle of 90 ° between the base frame and the posts. boltinG In corner posts secure with short srews, all the strengtheners with long nuts and bolts and strengthen, then fix strengtheners.
- Page 14 Assembly instructions osAKA Assembly oF tHe Door pAnel For openinG At tHe riGHt required accessories Pce no. Article Please fit the screws as shown. Side wall panel big, front right and left Short screws Be shure that the doors are right angles.
- Page 15 Assembly instructions osAKA Assembly oF tHe Front DecorAtiVe coVer AnD tHe HeiGHt compensAtion coVer bAr required accessories Pce no. Article Decorative cover, front Height compensation cover bar Screw head caps Short screws Short screws Hole cover Hook the trim panel in the front roof frame. Rotate the trim panel as shown up over the roof and secure it with short screws.
- Page 16 Assembly instructions osAKA Assembly oF tHe Gutter required accessories Hook both ends of the Pce no. Article gutter on the trim panels. Gutter Short screws Rotate over the roof and secure it with short screws. Short screws metal holder for the gutter...
- Page 17 Assembly instructions osAKA Assembly oF tHe rAinWAter pipe Fit both down pipes left and right. required accessories Drain Article Metal clamp for hole rainwater pipe Rainwater pipe and Short screws connec- Put both bends with connecting piece together tion piece Metal Fit clamps over down pipe and attache both Bend...
- Page 18 Assembly instructions osAKA Assembly For riGHt HAnD Doors required accessories Before mounting door please fit Pce no. Article both metal stoppers top and bottom Door, front right as shown. Door, front left Take precaution that the cylinder Metal stopper lock isn‘t scratched. Short screws Door stop cover First fit both hooks of the metal stoppers in the slots as...
-
Page 19: Adjusting The Door
Assembly instructions osAKA Assembly For leFt HAnD Doors required accessories Pce no. Article Hook bottom of door in rear Fit top in upper door sill. sill. Door, front left Door, front right Door paneel, rear right Door paneel, front left Hook bottom of door in front sill and fit top in upper door sill. - Page 20 Assembly instructions osAKA AssemblinG tHe Front DecorAtion coVer required accessories Pce no. Article Front decoration cover Metal holder for the upper front decoration cover Door holder Short screws Metal holder for the upper front Stick the top of the door holder in the slot in the front decoration cover.
- Page 21 Assembly instructions osAKA AssemblinG tHe rAcKs required accessories building the racks Pce no. Article Rack frame for side panels Hook the rear rack frame in the last gap on wall panels. Then add the Rack frame for rear wall front rack frame to fit shelves. For large wall panels Cross rear strengthener Use the first gap in the central panel,...
-
Page 22: Fitting The Shelves
Assembly instructions osAKA FittinG tHe sHelVes For example: With a gap of 5 cm you can create 21 ranks. required accessories Pce no. Article Metal shelves supports You need four metal shelves supports for one shelf. Big shelf (Two on each side) Lay the shelves on top of the metal shelves supports. - Page 23 Assembly instructions osAKA AncHorinG tHe builDinG required accessories The shed must be ankered to protect against falling over. Pce no. Article ※ The accessoires marked „ “ may be used when the shed is more Anchor, big than 120 mm above ground. In this case the large anchors can be ※...
- Page 24 Assembly instructions osAKA FittinG tHe screW cAps AnD coVer required accessories In cold weather the plastic cover can become hard. In Pce no. Article this case warm up for example in your trouser pocket to Screw head cover soften. Cover for rightangled holes Check that all screws are tight before you fit all 50 screw head covers and the...
-
Page 25: General Advise
Assembly instructions osAKA TIPS FOR ASSEMBLING GENERAL ADVISE mountinG ADVise For tHe substructure / Floor pAneles 1. Ensure youself that the base frame is level 1. Ensure the ground is flat and firm where you want to build uo your metal shed. (For example and square (for example on a cemented underground) before you start mounting the a concrete foundation or a concrete pier... - Page 26 Assembly instructions osAKA TIPS FOR ASSEMBLING Screwing: Firstly screw the four corner posts with panels 6. If a door sticks adjust runner wheels to run free. provionally and check that none are cross threaded. Then tighten. Please screw CAREFULLY to protect the screws threads from damage.
