Display/control unit

STILL Easy Control

12,6

10:35

56378012101 EN - 10/2019

Table of Contents

Need help?

Do you have a question about the Easy Control and is the answer not in the manual?

Questions and answers

Summary of Contents for Still Easy Control

Page 1 Original instructions Display/control unit STILL Easy Control 12,6 10:35 56378012101 EN - 10/2019...
Page 3: Table Of Contents
STILL Easy Control ........
Page 4 Table of contents Truck settings ............Diagnostics/service .
Page 5: Introduction
Introduction...
Page 6: Still Easy Control

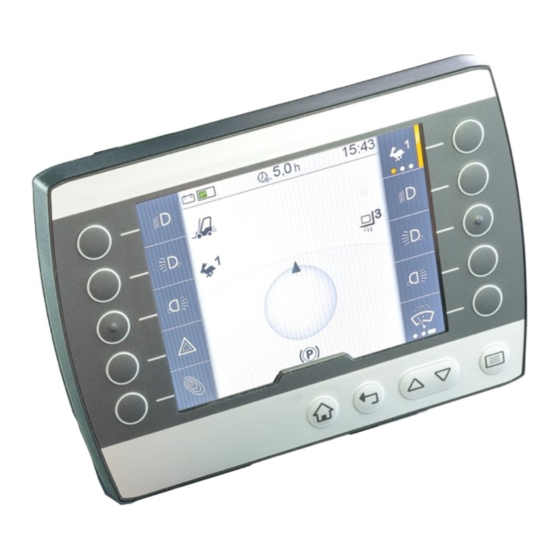

Introduction STILL Easy Control STILL Easy Control  STILL Easy Control is a third-generation dis- play-operating unit for industrial trucks. It serves as an operating device for additional functions. STILL Easy Control allows opera- tion of the usual functions of the industrial...
Page 7: Description Of The Display-Operating Unit
Description of the display-operating unit...
Page 8: Main Display
Description of the display-operating unit Main display Main display  After switching on the industrial truck using the 12,6 10:35 key switch, the industrial truck is ready for op- eration. The main display appears on the dis- play. NOTE Depending on the configuration of the industri- al truck, you may have to enter the PIN code first.
Page 9: Status Bar
Description of the display-operating unit Status bar Status bar  NOTE 09:35 The symbols and values shown in the status bar are examples. The status bar provides the driver with infor- mation relevant to the truck, such as the bat- tery charging status, daily operating hours and the time, similarly to an on-board computer.
Page 10: Keypad Assignment
Description of the display-operating unit Keypad assignment status bar. For more information, see the chapter entitled "Messages". Keypad assignment 12,6 10:35 Softkeys on the left Control and enter keys Softkeys on the right 56378012101 EN - 10/2019...
Page 11: Softkeys On The Right
Description of the display-operating unit Softkeys on the right Softkeys on the right  Five Softkeys (A) are arranged on the right- hand side of the display. 12,6 10:35 These softkeys always relate directly to the functions shown on the display. You push a Softkey to execute the respective function.
Page 12: Control And Input Keys
Description of the display-operating unit Control and input keys Control and input keys 12,6 10:35 Menu button Back button Scroll button Main-display button The control and input keys on the display-op- erating unit are used to enter control and input commands.
Page 13 Description of the display-operating unit Control and input keys Scroll button  The "scroll" button (3) can be used to scroll up and down within a menu level (1,2). Press the right-hand button to scroll up. Press the left-hand button to scroll down.
Page 14: Display Area
Description of the display-operating unit Display area Display area 08:20 7,0° 2,71 km/h Power mode "Right" turn indicator display Bar display for the Dynamic Load Control 2 Speed indicator Load information "Left" turn indicator display Load programme display "Reverse" drive direction indicator Load dynamics display Steering angle display Load handling assistant...
Page 15 ● Sprint mode ● STILL-Classic ● NOTE STILL-Classic is automatically active if no oth- er power mode has been selected. No picto- gram is displayed for STILL-Classic. Bar display of the Dynamic Load Con-  trol 2 The bar display on the display-operating unit is part of the load information.
Page 16 Description of the display-operating unit Display area Load programme display  The pictogram shows the selected load pro- gramme. Load dynamics display  The load dynamics display shows the lifting speed of the load programme. One bar: slower lifting speed ●...
Page 17 Description of the display-operating unit Display area When you select the "backwards" drive direc-  tion, the "backwards" drive direction indicator is orange. "Right" and "left" turn indicator display  The "right" or "left" turn indicator display flash- es as soon as the turn indicator for the corre- km/h sponding direction is activated.
Page 18 Description of the display-operating unit Display area Drive programme display  The pictogram shows the selected drive pro- gramme. 56378012101 EN - 10/2019...
Page 19 Function menus...
Page 20: Function Menus
The following table shows an overview of the menu items at the individual menu levels. Menu level 1 Menu level 2 Menu level 3 Menu level 4 Driving Power modes Blue-Q Sprint STILL Classic 56378012101 EN - 10/2019...
Page 21 Rear working spot- light Rotating beacon Hazard warning system Left turn indicator Right turn indicator Bottom rear work- ing spotlight Rear platform work- ing spotlight Main beam Parking light Still Safety Light ® Warning zone light 56378012101 EN - 10/2019...
Page 22: Operating The Function Menu
Function menus Operating the function menu Menu level 1 Menu level 2 Menu level 3 Menu level 4 Windscreen clean- Front windscreen wiper/washer Rear window wiper/ washer Roof panel wiper/ washer Rear window heat- Load Load dynamics Load dynamics 1 Load dynamics 2 Load dynamics 3 Load dynamics A...
Page 23 Function menus Operating the function menu Opening the function menu  The "menu" provides the driver with access to the function menus and the settings menus of the industrial truck. – Press the button The "menu" opens at the first level. –...
Page 24 Function menus Operating the function menu The display of the levels is via tabs (1). Each  level is shown with a tab. The last selected sub-menu and thus the last selected level is always identified as the bottom tab and as ac- tive.
Page 25 Function menus Operating the function menu Single functions  Some functions can only be switched on and off. Of these functions, several can be active at the same time. This feature is presented below using the ex- ample of the lighting: –...
Page 26 Function menus Operating the function menu NOTE The active drive programme is identified by the orange activation bar. – Use the Softkeys to select the desired drive programme. The desired drive programme is activated. The activation bar(1) for the selected drive programme appears and the activation bar for the previous drive programme goes out.
Page 27 Function menus Operating the function menu NOTE For more information, see the original operat- ing instructions for the industrial truck. 56378012101 EN - 10/2019...
Page 28 Function menus Operating the function menu 56378012101 EN - 10/2019...
Page 29 Favourites...
Page 30: Favourites
Favourites Favourites Favourites Frequently used functions and assistance  functions can be stored in the main display as favourites. These functions can then be ac- cessed directly via the Softkeys and are there- fore available more quickly. Select storage position in favourites You can configure the favourites to meet your requirements via the settings menu and you can change them at any time.
Page 31 Favourites Operating favourites Pressing the Softkey again switches to the next drive level. Functions with a long button push  In addition to the normal activation points (1), some functions have an oval-shaped activa- tion point (2). The oval activation point indi- cates that the Softkey for a function must be held down.
Page 32 Favourites Operating favourites 56378012101 EN - 10/2019...
Page 33 Configure favourites...
Page 34: Configure Favourites
Configure favourites Configure favourites Configure favourites – Press the button The first menu level appears. – Push the "Settings menu" Softkey.  The "Settings menu" appears. – Push the  Configure favourites Softkey. Configure favourites  Select storage position in menu level appears.
Page 35 Configure favourites Configure favourites The display changes to the selected function  menu. If necessary, use the Softkeys to select other sub-menus. – Select a function by pushing the Softkey. – If required, you can add further functions by pushing the Softkey. –...
Page 36: Grouping Favourites
Configure favourites Grouping favourites Replacing favourites – Press the button The first menu level appears. – Push the "Settings menu" Softkey.  The "Settings menu" appears. – Push the  Configure favourites Softkey. Configure favourites  Select storage position in menu level appears.
Page 37 Configure favourites Grouping favourites Functions that cannot be grouped  Some functions can be saved as a favourite, but cannot be grouped with other functions. These functions are recognisable as follows: The asterisk (1) indicates that the function ● can be saved as a favourite Beneath the asterisk, there are no further ●...
Page 38: Favourites Overview
Pictogram Designation Type Power modes Blue-Q Multiple function Sprint mode Multiple function STILL-Classic Multiple function Drive programmes Drive programme 1 Multiple function Drive programme 2 Multiple function Drive programme 3 Multiple function 56378012101 EN - 10/2019...
Page 39 Bottom rear working Single function spotlight Rear working spotlight Single function Main beam Single function Parking light Single function Still Safety Light ® Single function Warning zone light Single function Windscreen cleaning Front windscreen wip- Long button push er/washer Rear window wiper/...
Page 40 Configure favourites Favourites overview Pictogram Designation Type Special hydraulics Single function Raise bottom plate Single function (FX-H) Lower bottom plate Single function (FX-H) Road traffic mode Single function Load measurement Assistance function Total load Assistance function End lift cut-out Single function Automatic mast verti- Single function cal positioning...
Page 41 Settings menu...
Page 42: Settings Menu
Settings menu Settings menu Settings menu  Via the settings menu, the driver can access truck information such as operating hours, Truck information maintenance intervals etc. Display settings The settings menu can also be used to config- Configure favourites ure the display and some other functions of Diagnostics/service the industrial truck.
Page 43: Overview
Settings menu Overview Overview The following table shows an overview of the "Settings" menu, its sub-menus and its config- uration options. The greyed-out menus are available at the "fleet manager" authorisation level. For more information, refer to the origi- nal operating instructions for the truck. Menu level 1 Menu level 2 Menu level 3...
Page 44: Truck Information
Settings menu Truck information Menu level 1 Menu level 2 Menu level 3 Menu level 4 Hydraulic axle 6 Change PIN codes PIN code 1 PIN code 50 Charging characteristic On-board charger curve Charging start time Charging current limi- tation Maintenance charge Diagnostics/service Message list Maintenance interval...
Page 45 Settings menu Truck information NOTE Access to the settings menu is available only if the industrial truck is at a standstill and the parking brake is applied. Releasing the park- ing brake prematurely closes the setting menu. – Press the "Settings" Softkey. ...
Page 46 Settings menu Truck information NOTE Deleted values cannot be recovered. The de- letion is performed immediately and without warning. Hour meter  NOTE Operating hours This display is currently unavailable. – Press the Softkey. Hour meter 1 420,1 h The "Operating hours" menu appears and dis- plays the total operating hours of the industrial truck.
Page 47 Settings menu Truck information Truck name  – Push the Softkey. Truck name The "Truck name" menu appears and displays the name of the industrial truck. In this exam- Truck name ple, the name is "Internal transport". Internal transport – To enter or change the name, press the ...
Page 48 Settings menu Truck information Battery name  – Press the Softkey. Battery name The "Battery name" menu appears and dis- plays the name of the batteries in the industri- Battery name al truck. In this example, the name is "Internal Internal transport transport battery".
Page 49: Display Settings
Settings menu Display settings On-board charger  – Press the Softkey. On-board charger The "On-board charger" menu appears. Total charging time The following menus are available: Last charging process charging statistics ● Total charging time ● Last charging process ● Charging statistics –...
Page 50 Settings menu Display settings – Push the Softkey.  Display settings The "Display settings" menu appears. The following menus can be accessed: Display settings "Time" ● "Date" ● "Language" ● "Status bar" ● Time  – Press the Softkey Time The "Time"...
Page 51 Settings menu Display settings Language  – Press the Softkey Language The "Lang." menu appears. deutsch – If necessary, use the buttons english scroll to the desired language. français – Use the Softkeys to select the required lan- русский guage. český...
Page 52: Truck Settings
Settings menu Truck settings The following displays are possible in the fields: Left field Centre field Right field Filling level (graphical) Display no information Display no information Filling level (numerical) Operating hours Daily operating hours Range Daily operating hours Daily distance Distance Time Daily distance...
Page 53: Diagnostics/Service
Settings menu Diagnostics/service – Press the Softkey.  Truck settings The "Truck settings" menu appears. Truck settings The following menus can be accessed: "Drive programmes" ● Drive programmes  – Press the Softkey. Drive programmes The "Drive programmes" menu appears and Drive programme A shows the available drive programmes.
Page 54 Settings menu Diagnostics/service – Press the Soft-  Diagnostics/service key. The "Diagnostics/service" menu appears. Diagnostics/Service The following menus can be accessed: "Message list" ● "Maintenance interval" ● "Pre-Shift Check" ● Message list  – Press the Softkey. Message list The "Message List" menu appears. The driver Message list Time Message number Text...
Page 55: Access Authorisation
Settings menu Access authorisation Pre-Shift Check  – Press the Softkey. Pre-Shift Check The "Pre-Shift Check" menu appears and dis- History plays the available menus. Reset truck restrictions The following menus can be accessed: Shift start History Question sequence ● Reset truck restrictions ●...
Page 56 Settings menu Access authorisation The "Access authorisation" menu appears.  – Enter the password using the Softkeys. – Press the button Access authorisation The password is checked. In the event of an incorrect entry, the mes- Enter password sage The code entered was not =Clear appears and the symbol is dis-...
Page 57 Settings menu Access authorisation – Press the scroll buttons until the  Change password (access menu appears. auth.) – Press the Version list Change password (ac- softkey. cess auth.) – Follow the instructions on the display. Calibration Relieve hydraulics Shock sensor Change password (access auth.) Fleet manager 6219_003-275_en...
Page 58 Settings menu Access authorisation 56378012101 EN - 10/2019...
Page 59: Messages
Messages...
Page 60: Message Types
Messages Message types Message types Messages provide the driver with information about the status of the industrial truck. During the operation of the industrial truck, two different message types may appear: Messages about the industrial truck ● Messages about operation ●...
Page 61 This indicator is displayed for up to nine mes- sages. Display from the tenth message Operation When a message is opened, there is no ac- cess to the right-hand favourites. The industri- al truck can still be operated. 56378012101 EN - 10/2019...
Page 62: Messages About Operation
Messages Messages about operation – Push "Confirm" (4) to close the message.  The message disappears and is stored and accessible in the message list until the error is resolved; see the chapter entitled "Service". Parameter Parameter The message indicator also remains in the erroneous erroneous status bar until the error is resolved.
