Klein Tools 29026 Instructions

ENGLISH
GENERAL SPECIFICATIONS
• Relative Humidity:
<80% non-condensing
• Operating Temp:
20°F to 120°F (-10°C to 50°C)
• Storage Temp:
-5°F to 140°F (-20°C to 60°C)
• Battery Type:
Li-Ion, 3.7V 10400 mAh (38.5 Wh)
• Dimensions:
3" × 1.75" × 1.75" (76 × 44 × 44 mm)
• Weight:
7.84 oz. (222.2 g)
• Charging Requirements:
Maximum 5V DC, Minimum 2.0A
Specifications subject to change.
WARNINGS
To ensure safe operation and service of
the instrument, follow these instructions.
Failure to observe these warnings can
electrical shock. Retain these instructions
for future reference.
• DO NOT use battery if it appears to be damaged.
• DO NOT expose to rain, moisture, or snow.
• Risk of fire and burns. DO NOT open, crush,
heat above 140°F (60°C), or incinerate. Follow
all manufacturer's instructions.
• Use safety-rated power supply or wall adapter.
Never use a power supply or wall adapter that
exceeds the specified voltage and current.
• Use of a power supply, wall adapter, or cable
not recommended or sold by the manufacturer
may result in the risk of fire or injury to
persons.
SYMBOLS ON BATTERY
Warning or Caution
Risk of electrical shock
Read instructions
NOM-NYCE
Conformité Européenne: Conforms
with European Economic Area
directives
UKCA - United Kingdom
Conformity Assessment
Conforms with BCS regulations of
California Energy Commission
Recyclable
WEEE – Battery disposal

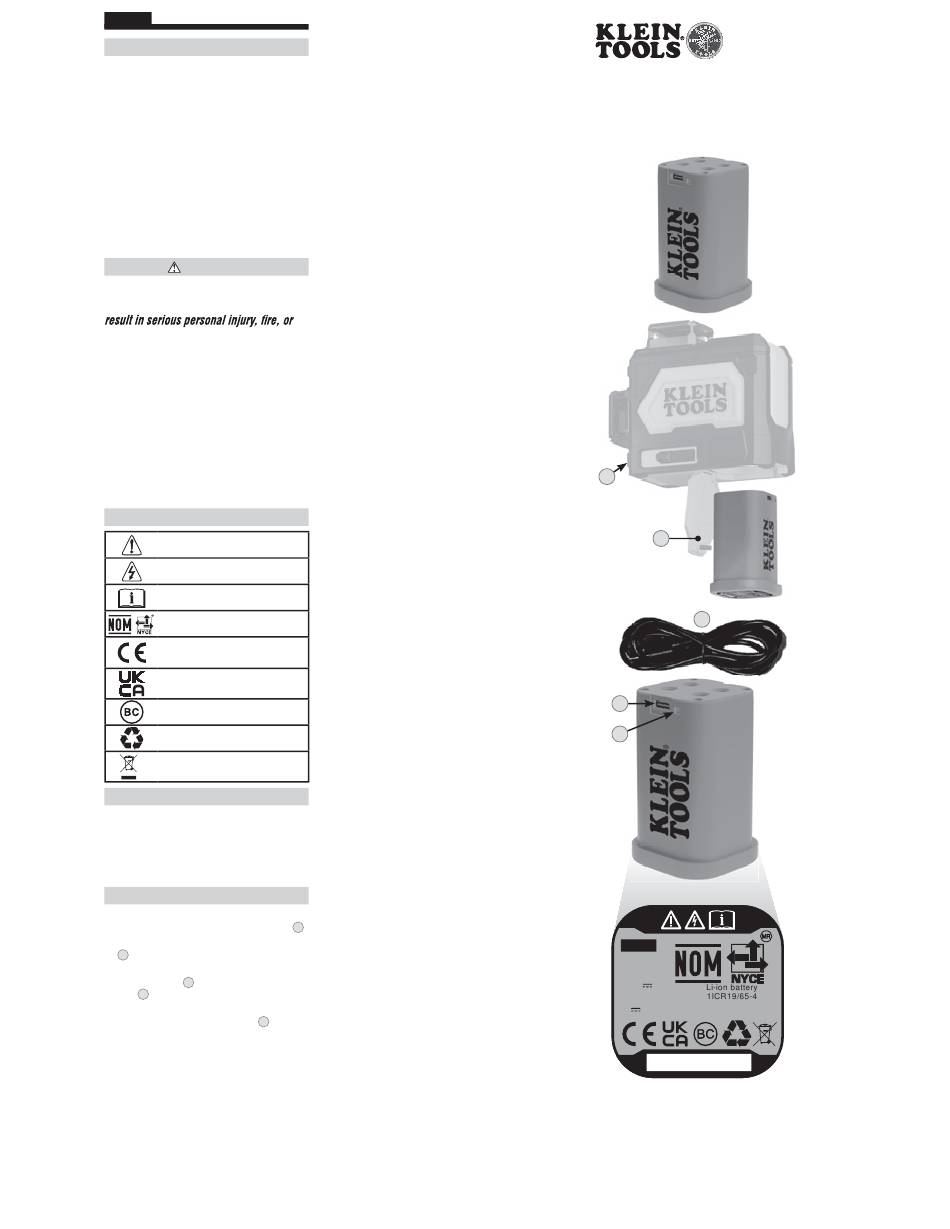

FEATURE DETAILS
1.
93PLL Power/Pendulum Lock/Unlock Switch
2. 93PLL Battery Door
3. USB-A to USB-C Charging Cable
4. Li-Ion Battery Charge-In Port
5.
Li-Ion Battery Charge Indicator LED
CHARGING BATTERY
1. Ensure the 93PLL is turned off by locking
the
Power/Pendulum Lock/Unlock Switch
2. Loosen the screw in the 93PLL Battery Door
and remove battery.
2
3. Connect the USB-C end of the supplied
Charging Cable to the battery's Charge-In
3
Port , then connect the USB-A end to a
4
charging source (5.0V, min. 2.0A).
4. The Battery Charge Indicator LED
red while charging, and will turn solid green
when fully charged. When fully charged,
disconnect cable from battery and reinstall
the battery into the 93PLL.
5. Close the 93PLL battery door and secure with
screw. Do not over-tighten.
NOTE: Once installed, refer to the 93PLL
manual for additional operating instructions.
Find Quality Products Online at:
.
1
will blink
5
GlobalTestSupply
www.
29026
Li-Ion Battery for 93PLL – Instructions
