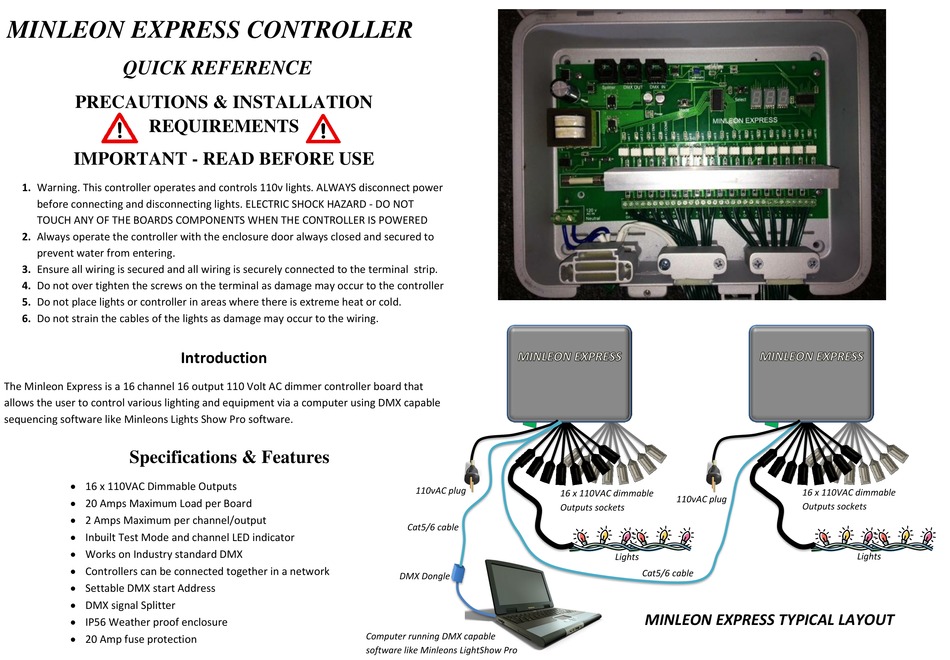

MINLEON EXPRESS CONTROLLER
QUICK REFERENCE
PRECAUTIONS & INSTALLATION
REQUIREMENTS
IMPORTANT - READ BEFORE USE
1. Warning. This controller operates and controls 110v lights. ALWAYS disconnect power
before connecting and disconnecting lights. ELECTRIC SHOCK HAZARD - DO NOT
TOUCH ANY OF THE BOARDS COMPONENTS WHEN THE CONTROLLER IS POWERED
2. Always operate the controller with the enclosure door always closed and secured to
prevent water from entering.
3. Ensure all wiring is secured and all wiring is securely connected to the terminal strip.
4. Do not over tighten the screws on the terminal as damage may occur to the controller
5. Do not place lights or controller in areas where there is extreme heat or cold.
6. Do not strain the cables of the lights as damage may occur to the wiring.

Introduction

The Minleon Express is a 16 channel 16 output 110 Volt AC dimmer controller board that
allows the user to control various lighting and equipment via a computer using DMX capable
sequencing software like Minleons Lights Show Pro software.
Specifications & Features
 16 x 110VAC Dimmable Outputs
 20 Amps Maximum Load per Board
 2 Amps Maximum per channel/output
 Inbuilt Test Mode and channel LED indicator
 Works on Industry standard DMX
 Controllers can be connected together in a network
 Settable DMX start Address
 DMX signal Splitter
 IP56 Weather proof enclosure
 20 Amp fuse protection
110vAC plug
Cat5/6 cable
DMX Dongle
Computer running DMX capable
software like Minleons LightShow Pro
16 x 110VAC dimmable
110vAC plug
Outputs sockets
Lights
Cat5/6 cable
MINLEON EXPRESS TYPICAL LAYOUT
16 x 110VAC dimmable
Outputs sockets
Lights
