Summary of Contents for MODE S120WWR

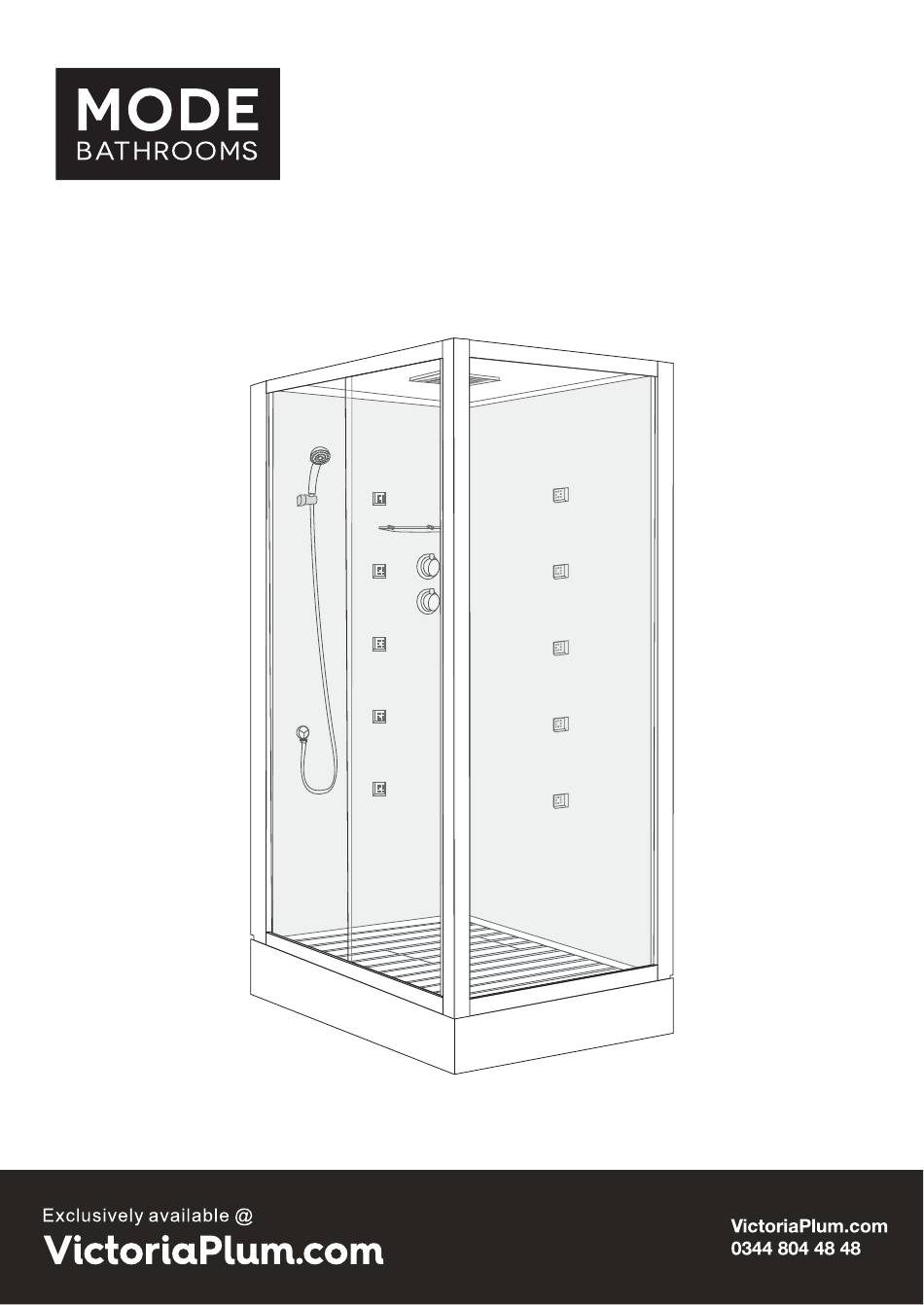

- Page 1 SHOWER CABIN Refer To sheet 12 For Relevant Product Codes...
-
Page 2: Tools Required
BEFORE YOU START, HERE IS SOME IMPORTANT INFORMATION 1) General Information Please inspect this product upon delivery. Any missing parts or manufacturing defects must be reported immediately to the supplier. Damage or defects reported later will not be accepted. TAKE CARE WHEN HANDLING GLASS PARTS-AVOID HEAVY CONTACT BETWEEN THE GLASS EDGES AND ANY HARD SURFACE. -
Page 3: Assembly View And Parts List
ASSEMBLY VIEW AND PARTS LIST PACK I.D PACK I.D PACK I.D (1) 1xShower roof (14) 1xTop shower (29) 3xST4x12 (1 spare) (2) 1xBack panel, left side (15) 1xHand shower (30) 3xTube clips (1 spare) (3) 1xBack panel, right side (16) 1xHolder (31) 2xElbow joint (4) 1xTray (17) 1xFlexible hose... - Page 4 ASSEMBLY INSTRUCTIONS If you require help, we advise you contact a competent plumber Installation Steps Step 1 SHOWER TRAY FEET ADJUSTMENT Adjust the tray feet to level the tray in the desired location, then pull the tray out to fit the shower cabin.
- Page 5 Step 3 CONNECTING THE BACK PANELS 6xM4x9 Lift onto the tray. One person to hold in place. Step 4 ASSEMBLING THE CABIN DOOR FRAME 4xST4x35 4xST4x55...
- Page 6 Step 5 ASSEMBLING THE CABIN DOOR FRAME Step 6 OFFER THE FRAME TO THE BACK PANELS...
- Page 7 Step 7 WHEN POSITIONED CORRECTLY, SCREW THE FRAME TO THE BACK PANELS 12xST4x16 8xST4x10 Step 8 DRILL, SILICONE AND SCREW THE BACK PANELS TO THE TRAY (AT THE REAR OF THE CABIN) NOTE!: Silicone the drilled holes before screwing panel to the tray 8xST4x16...
- Page 8 Step 9 ATTACH TOP AND BOTTOM SEALS TO THE FIXED GLASS PANELS Step 10 SLIDE FIXED PANELS INTO THE FRAME. WEDGE IN PLACE USING RUBBER SEALS...
- Page 9 Step 11 ATTACHING THE GLASS CLAMPS 1xST4x12 1xST4x12 Step 12 ATTACHING THE TOP AND BOTTOM ROLLERS BOTTOM...
-
Page 10: Adjusting The Doors
Step 13 ATTACHING THE SLIDING DOORS Push down button to clip bottom roller into profile Step 14 ADJUSTING THE DOORS To adjust the doors so that they are parallel, turn the screw underneath each top roller either clockwise or anti-clockwise. This lifts, or lowers each corner. TAKE CARE NOT TO OVER-TIGHTEN THE ROLLER SCREWS. - Page 11 Step 15 FITTING THE SHOWER ROOF 8xM4x16 Step 16 FITTING THE SIDE/BACK VERTICAL SEALS...
- Page 12 Step 17 CONNECTING THE PIPEWORK AND WATER SUPPLY NOTE!: Ensure correct hot and cold water feed connections to the cabin shower valve. NOTE!: After completing assembly, check ALL nuts and washers are tight and secure. Turn on water supply and FULLY test the product. Carefully check for leaks before moving the cabin into its final position.
-
Page 13: Care And Maintenance
However we understand that this may not always be the case, so should you experience any problems please contact out customer services quoting the following: Product name: Rectangular Shower cabin Product code: S120WWR/S120BLR Customer help line number:0344 804 48 48... - Page 14 INSTALLERS NOTES...
- Page 15 VictoriaPlum.com, Unit 2, First Point Business Park, Water Vole Way, Doncaster, DN4 5JP, England DOP No.: ENC2001140GZ64E1 Shower enclosures with aluminium profiles and safety glass Harmonised Essential Performance technical characteristics specification Clause 4.2 of BS EN Cleanability Pass 14428:2015+A1:2018 Impact Clause 4.3 of BS EN resistance/shatter Pass...
