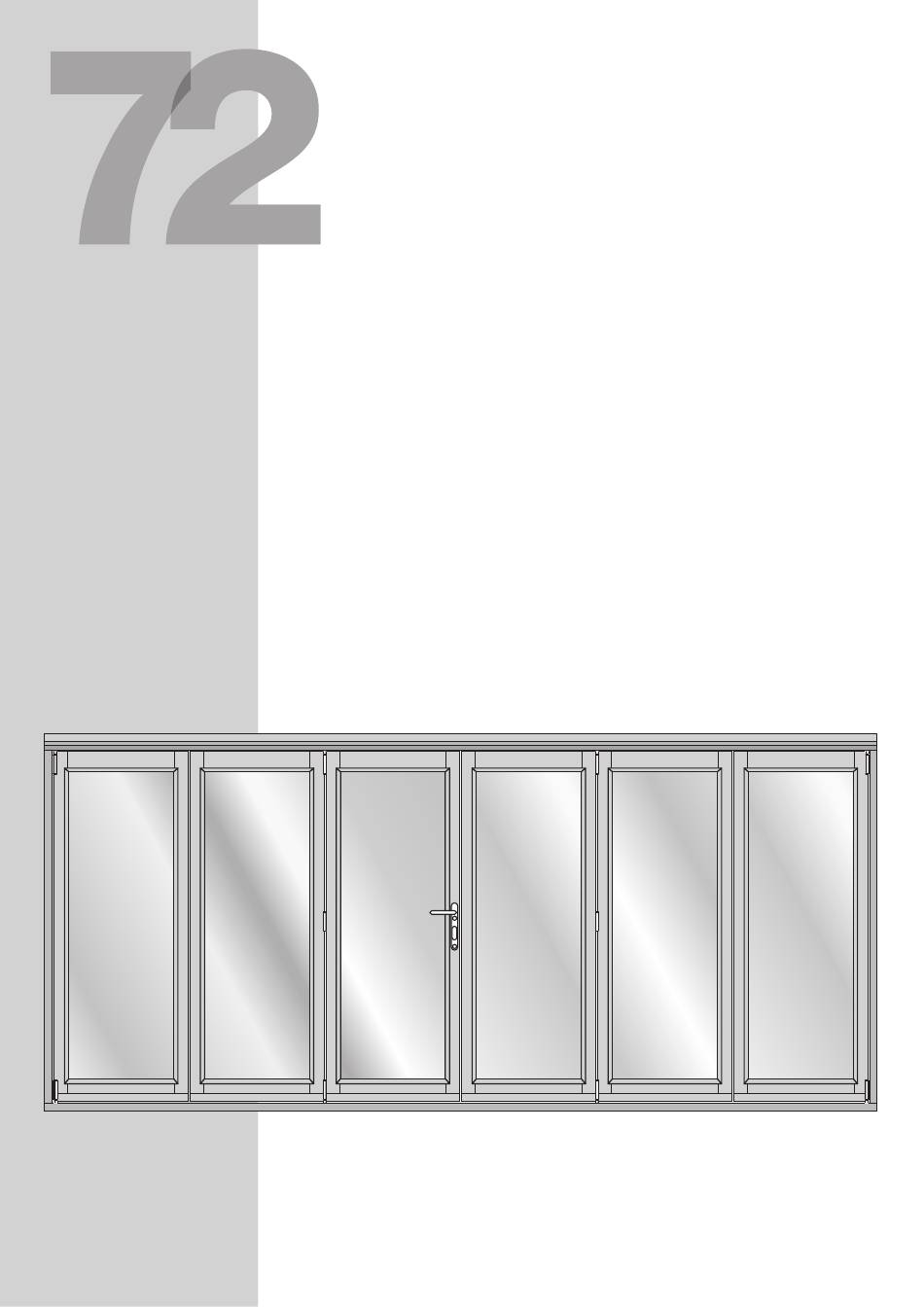

Ultra
Sliding Folding
Patio 6 Door Set
T14 Set - (Approx. 14ft)
T16 Set - (Approx. 16ft)
Assembly Instructions
VERY IMPORTANT FOR INSTALLERS
The Vufold Ultra set is Wood with an Aluminium Cladding on the
outside.
The installation is very similar to the Vufold wood sets and any
competent builder, joiner or installer can install the product
by following these installation instructions. NO SPECIALIST
ALUMINIUM DOOR INSTALLATION EXPERIENCE IS REQUIRED.
However some parts of the installation require particular care
to avoid damaging the aluminium and are highlighted in red
throughout the booklet.
Advertisement
Related Manuals for vufold T14
Summary of Contents for vufold T14
- Page 1 T16 Set - (Approx. 16ft) Assembly Instructions VERY IMPORTANT FOR INSTALLERS The Vufold Ultra set is Wood with an Aluminium Cladding on the outside. The installation is very similar to the Vufold wood sets and any competent builder, joiner or installer can install the product by following these installation instructions.
-
Page 2: Maintenance
About your patio door set All products must be installed in accordance with accepted good trade practice (and in accordance with supplied instructions where applicable), and maintained in accordance with these procedures or else the warranty shall be void. Important information lubricant to the inner lip of each side of the track. Ensure that the wheels pass through the lubricant and it is distributed evenly along the track. Put • We recommend that a competent tradesperson install this product. additional lubricant around bearings. Lubricant reduces wear, improves smoothness and further protects against corrosion or track and bearings. • A single person must never carry out the installation, as some Remove all surface contaminants by wiping all visible track surfaces components are very heavy. with a damp soft cloth and mild detergent, then wipe clean with a clean • The Outer-Frame Head requires fixing to the building RSJ over the cloth. In severe environments, apply a thin film of corrosion preventative opening. The RSJ must be capable of carrying the load of the doors in all such as WD40, by wiping with a soft cloth moistened with one of these conditions. If in doubt consult a structural engineer. products. Stainless steel bearings are manufactured from hardening-grade stainless Automatic Closures and Operators steel and although this material performs considerably better than plated • The hardware systems are designed for manual operation. Poorly steels, it is susceptible to corrosion unless maintained as described above. adjusted automatic operator closers can import significant destructive forces to tracks, bearings and stops. Such hardware used in installations is expressly excluded from warranty terms. Hangers, Pivots and Brackets: A light spray application of a corrosion preventative such as WD40, Care of aluminium clad timber doors and frames on site followed by a light wipe with a dry cloth to remove excess, is... - Page 3 Contents (1) Please check the contents of the packages to ensure that all parts are present before beginning assembly. Aluminium clad timber parts Drop bolt keyed - quantity 3 Keyed drop bolt Door 1 – Right pivot hinge door – quantity 1 fixing pack – quantity 3 packs Door 2 – Right mid door – quantity 1 Includes drop bolt cup Door 3 – Right fixed access door – quantity 1 Door 6 – Left opening access door – quantity 1 Door 5 – Left mid door – quantity 1 Door 4 – Left pivot hinge door – quantity 1 Drop bolt non keyed - quantity 3 Door size - 14' set = 1972 x 678 x 72mm Non-keyed drop bolt Door size - 16' set = 1972 x 778 x 72mm...
- Page 4 Contents (2) Please check the contents of the packages to ensure that all parts are present before beginning assembly. Magnetic catches Installation Bag Contents Plastic magnetic door holders Hardened steel frame fixings - quantity 22 - quantity 3 sets Hardened steel wood screws pozi flat countersunk yellow M5 x 100mm - quantity 4 Metal magnetic door holders M5 x 70mm - quantity 4 - quantity 1 set M5 x 60mm - quantity 4 Hardened steel wood screws pozi flat countersunk zinc M4 x 40mm - quantity 37...
-
Page 5: Preparing The Site
It is essential that all 4 internal surfaces of the brickwork be levelled before installation. Please ensure that all Brickwork opening dimensions are correct for installation height before proceeding, as the set must be Diagonal tolerance = +/- 2mm Frame height installed square and level into the opening. + 10mm The door set outer frame sizes are as follows: T14 - 14' - 2090.2mm High x 4190mm Wide T16 - 16' - 2090.2mm High x 4790mm Wide T14 - 4190 mm T16 - 4790 mm 534.4 534.4 534.4 534.4 534.4 694.4 694.4 694.4 694.4 694.4 Sliding Folding Patio 6 Door Set... -
Page 6: Assembling The Frame
Do not proceed with the installation if the frame is not square. Opening arangement The T14 and T16 sets open with three doors to the left and three doors to the right. Doors 3 and 6 can be opened like a patio door pair. Door 6 is the daily access door. (The doors always open outwards.) D o o r D o o r D o o r D o o r D o o r... - Page 7 Assembling the top track Aluminium top track Access slot Remove transportation screws Remove the two transportation screws to release the aluminium top track Aluminium top track from the frame head. Access slot Intermediate carrier Access slot Remove transportation screws Top pivot block Slide both sets (2) of intermediate carrier wheels into the track. Intermediate carrier Access slot Top pivot block Slide both plastic top pivots (2) into the track.
- Page 8 We recommend that the top centre of the frame is bowed upwards by 3mm. This can be achieved by fixing 3mm shims at the top of both jambs and then fixing the center of the top of the frame securely to the lintel. Important: The head section of the frame must not sag. T14 - 14ft approx. frame: 4190 mm T16 - 16ft approx. frame: 4790 mm Fix the outer frame into the brickwork, setting it to overhang the cavity. Install sill onto a bed of silicone sealant and/or mortar. Frame fixing points...
- Page 9 Installing the assembled frame continued The aluminium top track, which is temporarily held in place with transit screws, has been pre-drilled for fixing points into the RSJ. The aluminium track must be securely fixed, through the head of the frame, into the RSJ using the nuts, bolts and washers provided. Use the nuts, bolts and washers as follows: Minimum 8mm 1) Locate the pre-drilled holes in the diameter aluminium top track. minimum 60mm 2) Use the 6.5mm HSS drill (supplied) to drill long bolt with through pre-drilled holes, through timber tapered washer frame head and through RSJ. 3) Use the nuts, bolts and washers provided to fix the track and framehead to the RSJ. IMPORTANT: Frame Head Fixings must fix through aluminium track, frame head and RSJ. (The folding and sliding system is “top hung” so all the weight is...
- Page 10 Overview of door and hardware arrangement Arrangement for 3 Right opening doors of set Intermediate Carrier Set Half Offset Hinge Set Pivot Set Intermediate Carrier Top Pivot Door Door Door Half Offset Hinge Hinge Half Offset Hinge (with handle) Intermediate Guide Bottom Pivot Half Offset Hinge E2 Plus 3R Assembly Details...
- Page 11 Overview of door and hardware arrangement Arrangement for 3 Left opening doors of set Half Offset Hinge Set Intermediate Carrier Set Pivot Set Intermediate Carrier Top Pivot Door Door Door Half Offset Hinge Hinge Half Offset Hinge (with handle) Intermediate Guide Bottom Pivot Half Offset Hinge Fit to this door...
- Page 12 Fitting the dropbolts Fit the keyed drop Fit the keyed drop bolts to the bottom bolt cups to the cill of door 1, door 3 and door 4 in the pre-cut positions. using the pre-cut positions. Fit the non-keyed drop bolt Fit the non-keyed drop bolts striker plates to the frame to the top of door 1, door 3 head in the pre-cut positions. and door 4 using the pre-cut positions. Fitting the right pivot door (door 1) Before fitting door 1 thoroughly clean the top and bottom tracks. Note well: When drilling holes in the door edge to fix the hinge plates, first use the centre punch to mark the hole location then drill with the 3mm HSS drill. This applies especially to the holes in the aluminium. Reversing top pivot - Applicable Fix top and bottom to option A only. Carefully remove pivot hinges to door 1 centre bolt from hinge barrel then re-insert using screws supplied in pre- from the other end. drilled holes Hinge barrel Do not remove yellow clip at this stage Centre bolt...
- Page 13 Fitting the right pivot door (door 1) continued VERY IMPORTANT - When installing the doors, always use the door installation protector to rest the doors on and never place the doors directly on the cill. Lift door onto bottom pivot. Support door then Adjust alignment of pivot door as shown. Leave a 7mm screw top pivot centre bolt into pivot block until gap between the door edge and the frame jamb. door swings freely. Note: To avoid damaging the door, always use the door adjustment protector on the surface of the door and under the pivot bolt before tightening. Note: Screwing top pivot bolt in and out adjusts height. Fit half offset hinges to the Half offset hinge inside edge of door 1. Fix through small centre part of hinges using screws provided in Half offset hinge Temporary supports pre-drilled holes. with handle and door installation protectors to prevent Note: damage to the cill.
- Page 14 Fitting right fixed access door (door 3) Fit the astragal to door 3, screwing into the Attach door edge of the door and then fit the AQ89 seal into 3 to the the groove with the open end facing towards Intermediate Carrier the astragal. and Intermediate Intermediate carrier Guide using the pre-drilled holes as a guide. Use the Straight AQ89 Hinge in the central AQ21 AQ63 AQ109 Door 3 Straight hinge position. Drawings in this Intermediate guide section show the arrangement of parts Astragal for Opening Option Fitting the left opening three doors of the set Repeat steps 17 to 26 to fit the left opening three doors of the set - Left pivot hinge door (Door 4), Left mid door (Door 5) and Left opening access door (Door 6) Fitting the weather seals to the doors...
- Page 15 Correct spacing for final adjustment Shipping clips Do not remove the shipping clips until you have made all the necessary adjustments as shown in Top of door sections 29 and 30. to underside of head Once you are satisfied with the adjustments you have made, remove the yellow Shipping Clip from the Top Pivot and Intermediate Carrier to lock the position. Door 4 Door 5 Door 6 Door 3 Door 2 Door 1 10mm Bottom of door to cill Door to Door to Door to door...
- Page 16 Fitting the lock and handle continued Fit lock into door 3. Apply the masking tape to the face of the door and mark the holes for the keyhole and the handle locating screws. The keyhole is always at the bottom. Very Important: Use the centre punch to mark the holes. Then drill a pilot hole with the 5mm HSS drill. Next use the 14mm HSS drill for the handle and keyhole. Finally use the 22mm HSS Drill for the keyhole only. Secure the lock in place and remove the masking tape. Fitting spindle assembly. Insert the spindle through the lock and fix both handles using the screws provided. To lock the door, lift the handle upwards until the lock is fully engaged then turn the key. Spindle When closing the right door set, first close doors 1 and 2, securing them with the dropbolts. Then close door 3. When closing the left door set, first close doors 4 & 5, securing them with the dropbolt. Finally, close and lock door 6. Sliding Folding Patio 6 Door Set...
- Page 17 Fitting the magnetic catches to the doors Fit the magnetic catches in the From outside, looking in positions shown using the fixings provided. Opening door Plastic Long metal magnetic Short metal magnetic 'male' fitting magnetic 'receiver' catches From inside, looking out Opening door Plastic Plastic magnetic magnetic catches catches...
- Page 18 Sliding Folding Patio 6 Door Set...
- Page 19 Sliding Folding Patio 6 Door Set...
- Page 20 Sliding Folding Patio 6 Door Set...
