Atoll Electronique DAC300 Owner's Manual

OWNER'S MANUAL ~ CONVERTER
Reminder: Do not make any connections when your device is turned on.

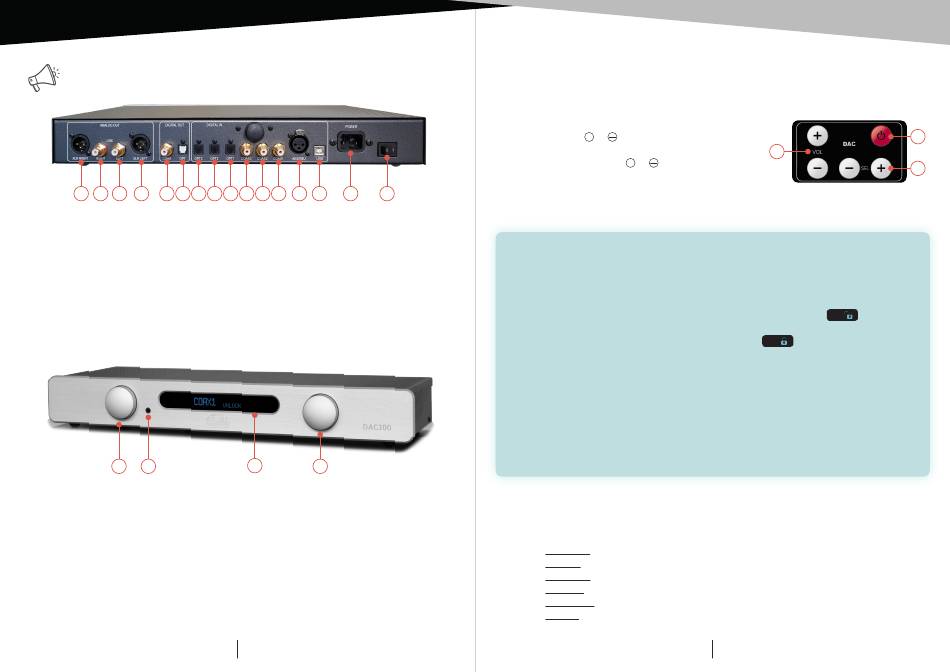

1 2 3 4 5 6
1) XLR output (Right).
2) Analog output (Right).
3) Analog output (Left).
4) XLR output (Left).
5) Digital output (coaxial).
6) Digital output (optical).
7) Digital input 3 (optical).
8) Digital input 2 (optical).
DETAIL OF FUNCTIONS
17 18
17) ON/stand-by knob and sources selection.
18) Headphones Output (jack 3,5mm) (linking the headphones shut down the
Output signals).
NB: When you connect a headphones, regardless of the BYPASS mode,
you'll switch to volume management mode (BYPASS OFF) in order to
manage the volume level of the headphones.
19) Display: selected source shows on the left and frequency sampling on the
right. When no signal is detected display shows UNLOCK.
20) Volume control knob (when BYPASS OFF) from 0 to 80 and filters setup.
CONNECTING
7 8 9 10 11 12 13 14 15
9) Digital input 1 (optical).
10) Digital input 3 (coaxial).
11) Digital input 2 (coaxial).
12) Digital input 1 (coaxial).
13) AES input.
14) USB input (type B).
15) Power plug.
16) Switch ON/OFF.
19 20
Page 4 ATOLL ELECTRONIQUE
The remote control is equipped with 2 Lithium CR2025 batteries. This remote control
is also able to drive all others ATOLL's products: CD players; Tuner; Integrated or
Preamplifier. (See those manuals for details).
21) Volume keys
22) Standby/ON key.
23) Source selection keys
16
(*) Volume control is possible only with BYPASS OFF. When changing the volume, level
shows shortly on display, then the display shows the sampling frequency.
Your appliance allows the reception of audio signals sent since any devices having a
Bluetooth transmitter (Smartphone, tab, computer...).
First time association:
• Activate the Bluetooth® connectivity of your emitter device.
• Select the Bluetooth® (BT) input of DAC300 : unlock symbol
• Select your appliance on the list of possible receiver (named IN200).
• Once the connection is made, the lock symbol
The whole audio signals of your device source will then be transmitted towards your
DAC300. Your emitter device will remain associated until you unlock the DAC300 with
your Smartphone or switch off your amplifier.
Association of another emitter:
• To connect another emitter, you'll need to disconnect the first emitter. The quality
of reception of the signal depends on the power of the Bluetooth® emitter and
the distance between the 2 devices.
Avoid being more than 5 meters of your DAC300 for a correct reception without any
risks of signal cuts.
While pressing knob (20) you can choose different kind of digital filters which you can
select by listening:
• Standard: fast roll-off, minimum phase filter.
• Fast lin: fast roll-off, linear phase filter.
• Slow min: soft roll-off, minimum phase filter.
• Slow lin: soft roll-off, linear phase filter.
• Apodizing: Fast roll-off by apodizing and linear phase filter
• Hybrid: fast roll-off and minimum phase filter
REMOTE CONTROL
& .
+ (*)
& .
+
BLUETOOTH®

FILTERS SETUP

Page 5 ATOLL ELECTRONIQUE
DAC300
22
21
23
BT
appears.
BT appears.
