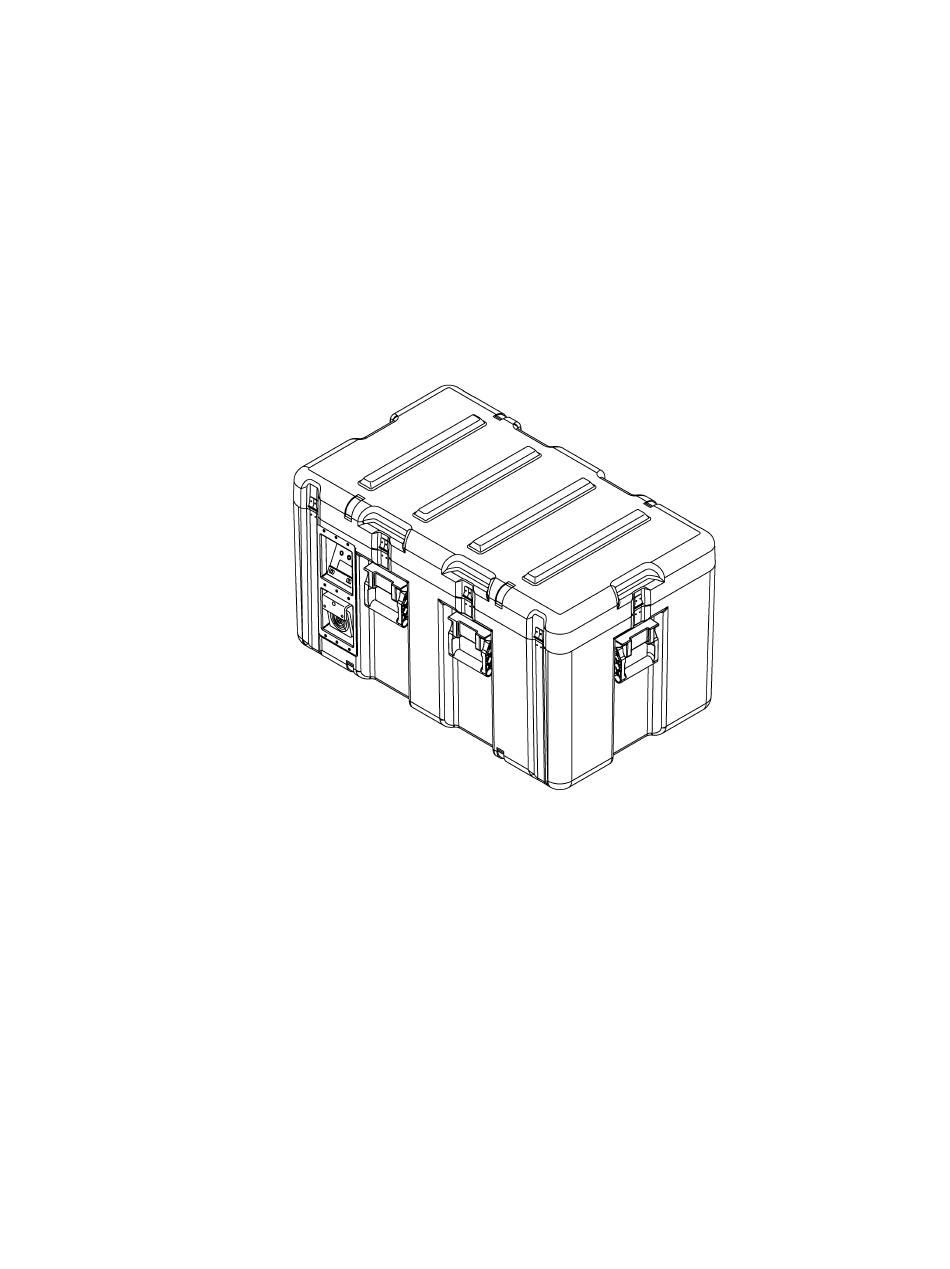

OPERATING INSTRUCTION
®
TWO-TEMPERATURE HemaCool
Advanced Technology Blood Product Storage and Transport
Refrigerator/Freezer
Model HMC-MIL-1
NSN 4110-01-506-0895
ACUTEMP
www.acutemp.com
7610 McEwen Road
Dayton, OH 45459
U.S.A.
Telephone: (937) 312-0114
Fax: (937) 312-1277
E-mail: support@acutemp.com
HemaCool® Operating Instruction
Revision 2
May 2005
