Included in Package:
Before start your installation,please check the contents.
1. Antenna main unit
2. Wall /Pole mounting accessories
3. AC/DC power adapter
4. DC power insert
Operation Instruction:
Note: For the best reception, please check the following conditions
1.Keep the antenna away from the sources of interference: keep the
antenna away from those big power consumption devices, such as air
conditioner, elevator, hair dryer and microwave oven...ect.
2.Place the antenna near windows when use the antenna in indoor
environment.
3.Install the antenna as high as possible: in digital terrestrial
reception, if there are some interceptions between antenna and
transmission tower, it will cause the signal loss temporary. So if the
antenna is installed as high as possible, those interceptions will be
reduced.
Mounting the antenna:
This antenna can be used both indoor and outdoor, with the included mounting accessories,it can be mounted on the
wall or the pole.

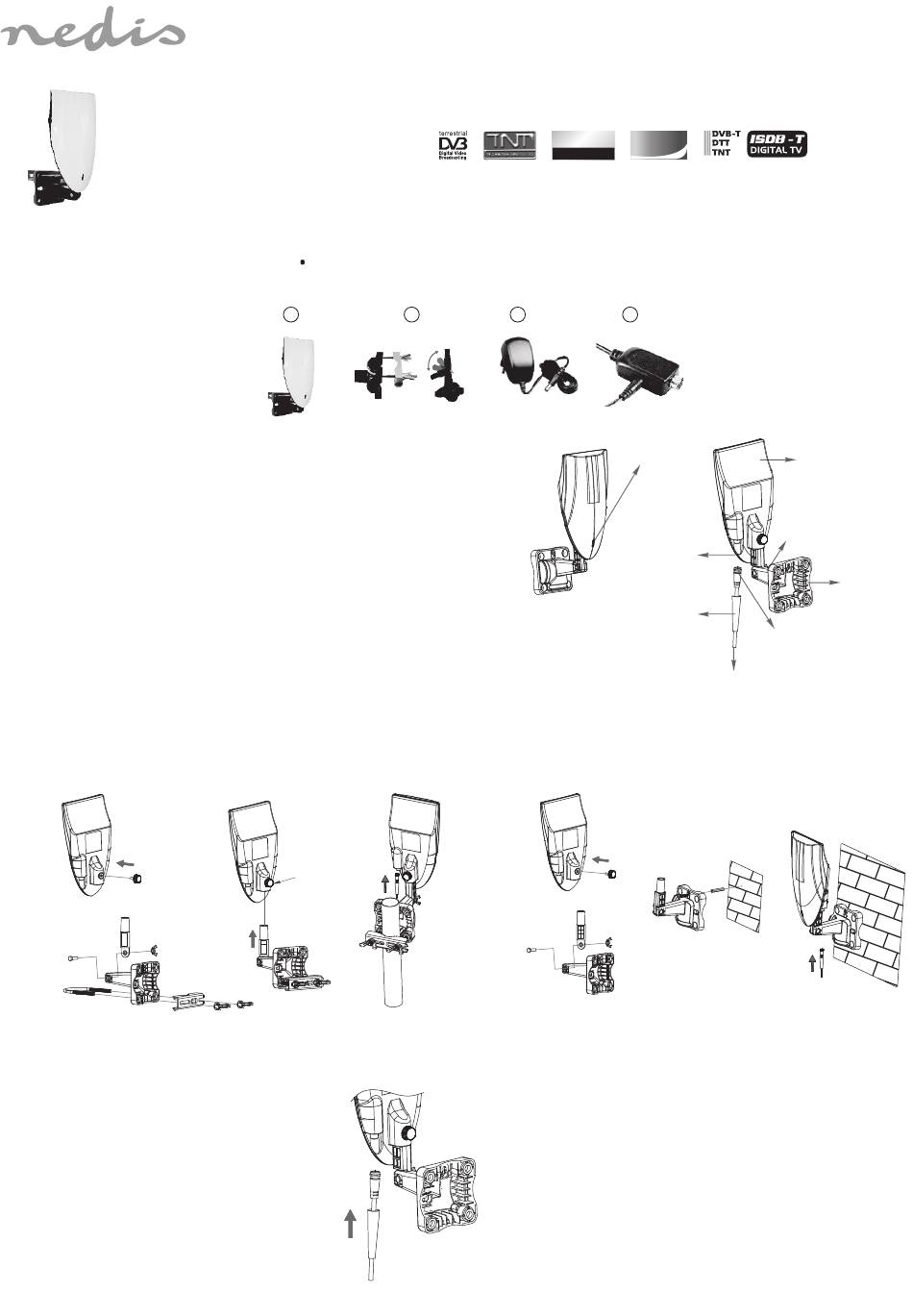

(Fig.1) use the pole mounting accessories to fix the antenna on the pole.
(Fig.2) use the wall mounting accessories to fix the antenna on the wall
Fig.1
(Fig.3) connect the "F" male connector of the coaxial cable to the "F" female connector of the antenna, and wear the water-proof cap to the
end of the connected "F" connector.
Note: After the antenna mounting is finished, please move the antenna to a best reception position and then fix it.
DIGITAL OUTDOOR TV ANTENNA
1
Fig.3
H D TV
Compatible
2
3
Fig.2
ATSC
Compatible
4
Antenna body
LED indicate light
Fixing screw
F connector
female
water-proof cap
Mounting kits
Coaxial cable
F connector
male
