Summary of Contents for Saturn 2000

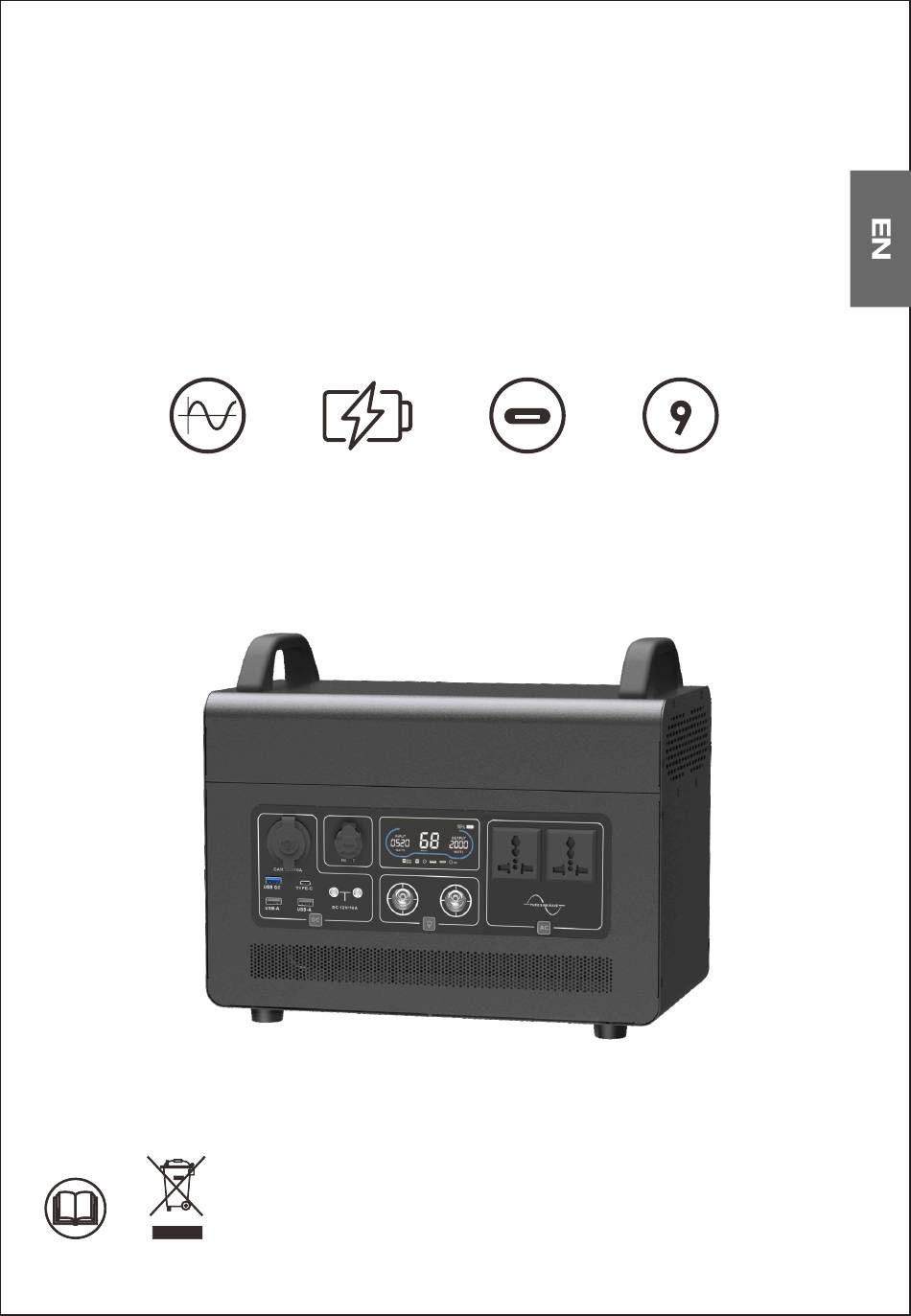

Page 1
Instruction Manual Mobile Power Station Fast Charge Type-C PD 100W Power Multiple Devices AC 2000W Saturn 2000 ART.55705...
Page 2
Introduction Thank you for choosing our product. For safe and efficient use of this equipment, please keep this User Manual properly and read it carefully before use. After unpacking, please check the product carefully. Check the items against the Packing List. In case of any inconsistency, please contact your local dealer.
Safety Tips and Precautions 1.1 Install the grounding device correctly according to the application stan- dard. 1.2 Please use the product in a clean and dry environment to ensure the working position is safe. 1.3 There shall be no flammables or explosives in the working space. 1.4 Workers implanted with cardiac pacemaker shall consult the doctor be- fore using the equipment.
Product Information INPUT OUTPUT 0520 2000 WATTS Hours WATTS 50Hz 60Hz CAR 12V/10A AC 1500W/3000W Peak USB QC TYPE-C DC 12V/10A USB-A USB-A P9 K2 P9 Name Function Charging input port Connect the charger USB output Dual 5V 2.4A output...
Page 6
Icon Function Function It is not displayed when the machine is not connected to the Network connection Internet, and displayed when the instructions device is connected to the Internet. (Not available) Cooling fan indication Rotating means the fan is on. Used for engineering testing before Development mode leaving the factory.
Page 7
When this prompt appears, stop using it immediately, follow the Fault indication instructions, or contact after-sales service. Output power Display the current output power. Remaining battery Display the remaining battery percentage power, 0~100%. Indicate the remaining power, and Battery level indicator display the running light when charging.
Technical Parameters Technical Specifications Model Saturn 2000 Battery Capacity 1536Wh Battery Type LiFePO4 Wall Charging Time 54V/10A About 3 hours Wall Charging Mode CC-CV Solar Charging Time 54V/7.5A MAX 3-4 hours Solar Controller Mode MPPT Charging Temperature Range 0⁰C-45⁰C Life Cycles...
Under the power off state, press the DC Button(K1) to observe the remaining battery capacity through Battery percentage(j/k). It will shut down again if the Standby Button(K1) is pressed again. INPUT OUTPUT 0520 2000 WATTS Hours WATTS 50Hz 60Hz CAR 12V/10A...
3.3 Solar Controller 3.3.1 Controller Technical Specifications Input 16V〜50V/25A(MAX) 54V/7.5A(MAX) Output MPPT Controller mode MPPT efficiency ≥99% < 5mA No load loss Over voltage protection 58V±1.5V When the positive and negative poles of the battery Anti reverse connection protection are connected reversely, the fuse will blow. The user needs to replace the 15A, φ...
Page 11
3.3.4 Precautions 1) The controller can adapt to 18V and 36V solar panels, please do not use solar panels with open circuit voltage higher than 50V, otherwise there is a risk of burning. Please do not overload the controller. The maximum power of 18V solar panels is 200W. If two 18V solar panels have a total power of more than 200W, please use them in se- ries.
3.4 Lighting function Press the lighting button (K2), the illumination LED (P9) lights up; Press the lighting button (K2) again, the illumination LED (P9) turns up lighter; Press the lighting button (K2) for the 3rd time, the illumination LED (P9) turns off; Press the lighting button (K2) stay 2S, the illumination LED (P9) SOS flashes;...
3.7 Protection Status Indication List of Normal Protection Status of Control Panel Display Status Measures The battery icon flashes, indicating that the battery is exhausted. Low Battery Please charge the machine in time. The constant light indicates that the battery is charged at a high temperature, and the machine will High Battery automatically charge after cooling...
Common failures Measures Check if the electrical equipment is connected reliably. Check if the high temperature indicator is flashing. No AC output Shut down and wait for 60S and restart. Check whether the charging cable is connected properly. The battery is not fully charged even after more than 12 hours of charging Check whether any temperature prompt is given.
This warranty does not cover failures caused by normal wear or misuse. For further details on warranty coverage and warranty information, please contact the After-sales Service of the company. Name Specification Quantity Mobile power generator Saturn 2000 Wall charger 54V/10A Solar power controller 54V/7.5A MAX Manual English...
Warranty Range The warranty of this product is to provide repair (replacement) in the event of a failure despite normal use. Even within the warranty period, if any of the following items apply, it will not be applicable. ★ Failure or damage caused by incorrect use or improper repair or modification. ★...
Product warranty This manual promises to repair the product free of charge according to the contents of the "Warranty Policy" in the event of a failure during the following period from the date of purchase. Please note that the personal information you provide may be used for repairs within the warranty period and for subsequent safety inspection activities.
