SP-VPN 1700
Quick guide
Scope of delivery
1. SP-VPN 1700 Server
2 Powera adapter
3 Network cabel
4. Quick guide
Safety
•
Operate the SP-VPN 1700 server in a dry and dust-free location and provide adequate ventilation.
•
The SP-VPN 1700 server is intended for indoor use. Do not allow liquids to enter the interior.
•
Only remove the Schuko adapter from the socket using electrically insulated tools.
•
Do not open the SP-VPN 1700 server. Opening and/or improper repairs may put you in danger.
•
Disconnect the SP-VPN 1700 server from power before cleaning. Use a dry cloth for cleaning.

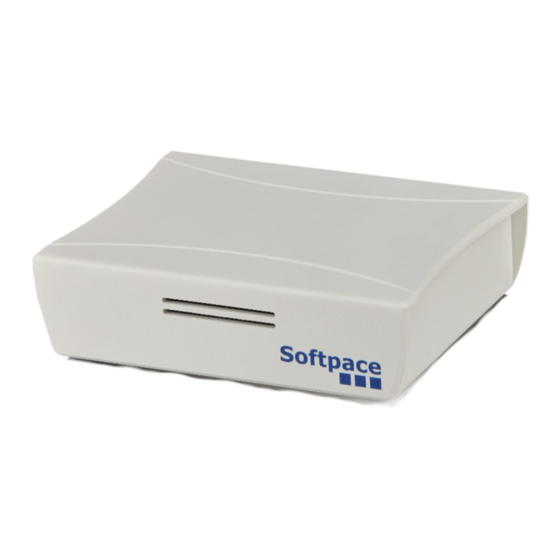

SP-VPN 1700 Server
SP-VPN 1700/2FA
is a VPN server with two-level
authentication.
SP-VPN 1700
is a VPN server with a simple authentication.
They are designed for small to medium networks and are very
suitable for connecting home office workstations.
They support up to 100 VPN users.
Here you will get the most important information to get your SP-
VPN 1700 Server up and running.
The SP-VPN 1700 servers have a user interface that you can
open in an Internet browser.
From this user interface, you can download a PDF manual with
descriptions of all the features and instructions of the SP-VPN
1700 server.
SP-VPN 1700 Server Configure and Operate
Seite 1/8

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP-VPN 1700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Softpace SP-VPN 1700

  • Page 1 Operate the SP-VPN 1700 server in a dry and dust-free location and provide adequate ventilation. • The SP-VPN 1700 server is intended for indoor use. Do not allow liquids to enter the interior. • Only remove the Schuko adapter from the socket using electrically insulated tools.
  • Page 2 Connect SP-VPN 1700 server to network and start it up Plug the network cable into the back of the SP-VPN 1700 server (1). Connect the SP-VPN 1700 server to your network using the other end of the network cable. Connect the power supply to the SP-VPN 1700 server (2) and plug it into the power outlet.
  • Page 3 (e.g. at the Fritzbox) by port forwarding. Save the VPN settings. Now the WLAN connection CFG-SPVPN can be terminated. The SP-VPN server can now be reached at the address specified in LAN settings. SP-VPN 1700 Server Configure and Operate Seite 3/8...
  • Page 4 VPN user configuration 1. VPN Admin Settings Log in to the SP-VPN 1700 server. In the section "VPN-Admin" you will find the available VPN users. Click on "Edit" in the line of the user "user00". On the "Edit user00" page, activate "Activate VPN access". In the "New password"...
  • Page 5 For two-step authentication, we recommend using a mobile device. Google Authentificator is available for free for Android in the Google Play Store and for Apple in the App Store. Install the Google Authenticator on your mobile device. Launch the app. SP-VPN 1700 Server Configure and Operate Seite 5/8...

  • Page 6: Enable Port Forwarding

    For "Port to device", select 1194 to 1194. For "Port desired externally", enter the external port specified in SP-VPN Server. Activate "Enable sharing" and close the dialog with "OK". Confirm the changes in "Release for device" with "OK". Port forwarding is now enabled. SP-VPN 1700 Server Configure and Operate Seite 6/8...
  • Page 7 Establish VPN connection The VPN client and an authenticator (SP-VPN 1700/2FA only) are required to establish the VPN connection. Under Windows 10: Start OpenVPN and go (by right-clicking on the icon) to connect. Enter the username (e.g. "user00"), as password enter the password assigned under "VPN User Configuration"...
  • Page 8 Entsorgung Disposal Legal FDer SP-VPN 1700 Server darf gemäß Der SP-VPN 1700 Server darf gemäß Legal information and license terms can be found in the europäischen Vorgaben nicht über den europäischen Vorgaben nicht über den user interface under Manual. Hausmüll entsorgt werden. Bringen Sie sie Hausmüll entsorgt werden.
