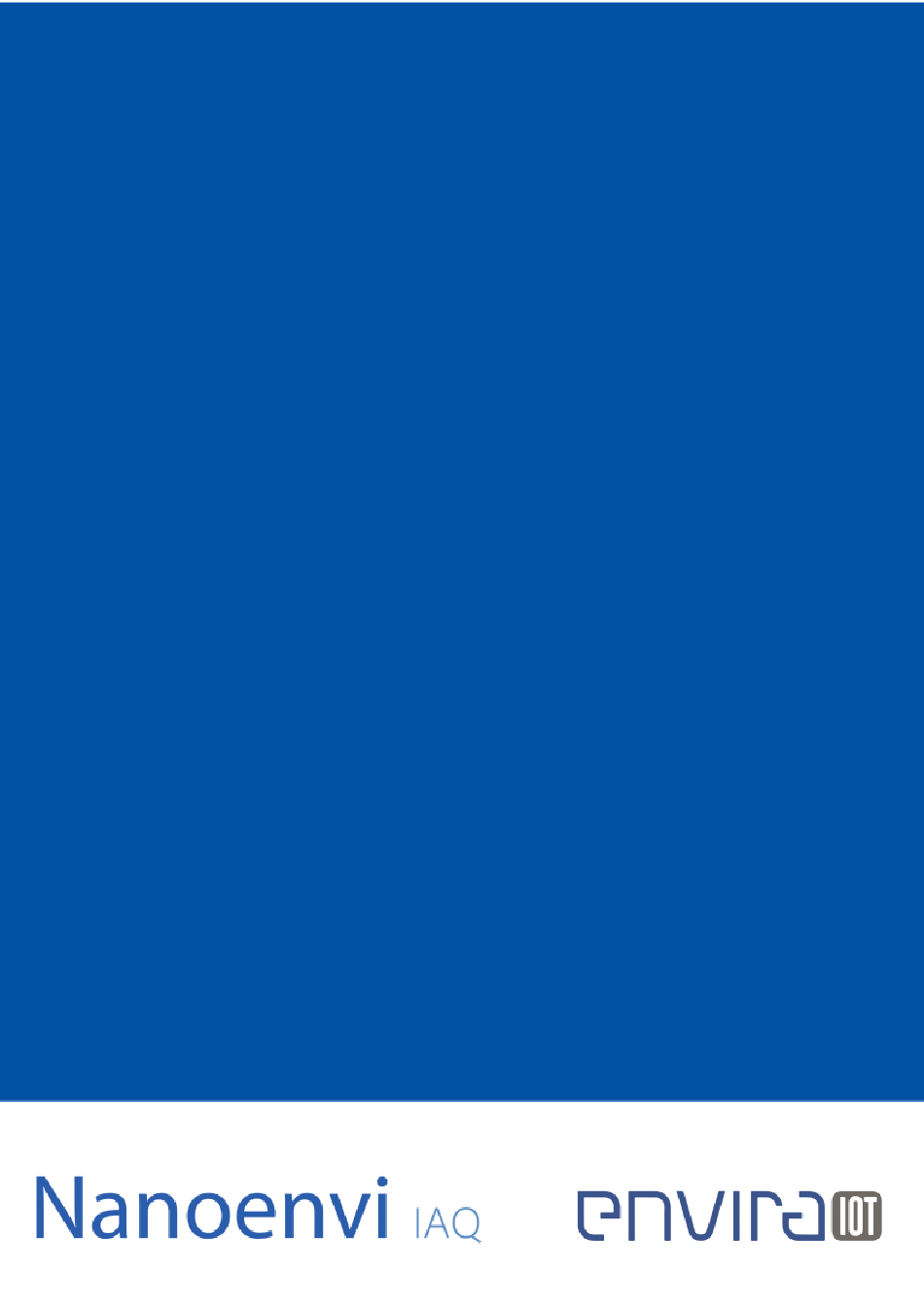

- Page 1 User Manual 1.3.1 Envira Sostenible S.A.
- Page 2 Copyright © 2021 Envira Sostenible S.A. Envira Sostenible reserves all rights to modify and correct the contents of this document without prior notifications. These specifications apply to all orders received. Envira Sostenible S.A. declines any responsibilities derived from possible misprints or information not included in this document.
-
Page 3: Table Of Contents
5.3. Communication specifications ....................13 5.3.1. WiFi communications ....................13 6. Installation ..........................14 6.1. Nanoenvi IAQ™ WiFi installation ..................14 7. Expected use of Nanoenvi IAQ™ WiFi ..................... 19 8. Manteinance ..........................20 8.1. Limpieza ........................20 9. Troubleshooting .......................... 21 9.1. - Page 4 Nanoenvi IAQ WiFi 1.3.1 User Manual Lista de figuras 4.1. Front view of Nanoenvi IAQ with wall bracket ..................9 4.2. Vista de la parte trasera de Nanoenvi IAQ ..................9 User Manual Pág. iv...
- Page 5 Nanoenvi IAQ WiFi 1.3.1 User Manual Lista de tablas B.1. Relationship between LED indicator and device status ................. 27 User Manual Pág. v...
-
Page 6: Revision Control
Nanoenvi IAQ WiFi 1.3.1 User Manual Capítulo 1. Revision control Versión Cambios V1.2.1 Created user manual V1.2.2 Image update and correction of minor errors V1.2.3 Added information about noise level sensor V1.3.1 Updated styles and improved content Capítulo 1. Revision control... -
Page 7: Preface
2.1. About this manual Nanoenvi IAQ™ has been designed for companies and individuals interested in continuous monitoring of indoor air quality. This manual is part of the product and contains important information on safety, installation, use, and disposal of the product. -
Page 8: Obtaining Documentation And Information
Nanoenvi IAQ WiFi 1.3.1 User Manual 2.4. Obtaining documentation and information 2.4.1. Internet You can find the latest version of the Nanoenvi IAQ™ user manual at: https://enviraiot.es/nanoenvi-iaq/ 2.4.2. Obtaining documentation and information Documentation, user instructions and technical information can be requested through: •... -
Page 9: Safety Instructions
User Manual Capítulo 3. Safety instructions Nanoenvi IAQ™™ has been designed to be installed in a safe indoor space in order to monitor the air quality continuously. All use for any other purpose will be considered as incorrect. Nanoenvi IAQ™has been manufactured in accordance with the latest regulations on safety and reliability in technology and its operation. -
Page 10: Foreseeable Misuse Of The Device
Nanoenvi IAQ WiFi 1.3.1 User Manual • Do not use Nanoenvi IAQ™ outdoors. • Do not expose Nanoenvi IAQ™ to gas concentrations higher than those indicated in the technical characteristics 3.2. Foreseeable misuse of the device Any use other than those described in this manual is considered improper use of the equipment and could pose a risk of damage to it, to the environment or the people. -
Page 11: Product Description
4.1.1. Air quality measurement to improve people's lives Nanoenvi IAQ™ is a device designed and manufactured by Envira Sostenible S.A. with the aim of helping building managers or owners make decisions to improve people's comfort, well-being and health based on real data on air quality. Nanoenvi IAQ™... -
Page 12: Privacy And Freedom Of Integration
User Manual 4.1.3. Privacy and freedom of integration Unlike other products of its class,Nanoenvi IAQ™ does not force the customer to send the data to third parties nor does it require the installation of a mobile app. Nanoenvi IAQ™ uses the MQTT protocol, a standard and widely used data sending protocol. When the device is installed, you can configure the MQTT server to which it will send the data. -
Page 13: Air Quality Traffic Light
If you have questions about the visualization or how to use the data collected by Nanoenvi IAQ™, contact your distributor. 4.1.4. Air quality traffic light Nanoenvi IAQ™ lights change color based on air quality. This allows people to know the quality of the air immediately and carry out adequate and efficient ventilation. -
Page 14: Product Overview

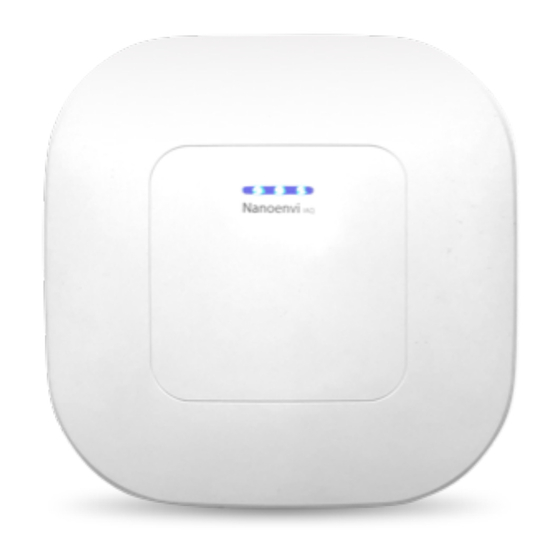

Nanoenvi IAQ WiFi 1.3.1 User Manual 4.2. Product overview Figura 4.1. Front view of Nanoenvi IAQ with wall bracket Figura 4.2. Vista de la parte trasera de Nanoenvi IAQ Capítulo 4. Product description Pág. 9... - Page 15 Nanoenvi IAQ WiFi 1.3.1 User Manual 1. Status LEDs: a. LED1 b. LED2 c. LED3 2. Wall bracket 3. Configuration mode push button (also referred to as 'AP mode pushbutton'). 4. QR code for connection to the device configuration WiFi network.
-
Page 16: Technical Specifications
Nanoenvi IAQ WiFi 1.3.1 User Manual Capítulo 5. TECHNICAL SPECIFICATIONS 5.1. General specifications Paramter Value Supply 100-240V AC @ 50-60 Hz (power supply included) Max. power consumption Average power 2,5 W consumption Operating temperature and 10 ~ 55 º C / 5 ~ 90 % RH (non-condensing) -
Page 17: Co2 Sensor Specification
Nanoenvi IAQ WiFi 1.3.1 User Manual 5.2.2. CO2 sensor specification Accuracy ± 30 ppm Range 400 ~ 10000 ppm Operating range 0 ~50 ºC, 0 ~95% RH Calibration Self calibration Response time 20 s (63 %) 5.2.3. PM sensor specification Accuracy ±15 µg/m3... -
Page 18: Tvoc Sensor Specification
Nanoenvi IAQ WiFi 1.3.1 User Manual Range 10 ~95 % RH Operating range 0 ~100 % RH/ -20 ~ 85 ºC Calibration Not required Resposne time 5.2.7. TVOC sensor specification Accuracy 30 % of measured value Range 0 ~ 60000 ppb Operating range 5 ~90 % RH/ 5 ~55 ºC... -
Page 19: Installation
Nanoenvi IAQ™ does not require any additional attention, it will start to measure continuously. 1. Take the Nanoenvi IAQ™ out of its box together with the wall mount. Hold the wall mount with one hand and rotate the device with the other counterclockwise to separate the device from the wall mount and packaging. - Page 20 After connecting the device, the lights will start flashing cyan. Wait for the lights to remain solid cyan (not flashing) - see Apéndice B, Nanoenvi IAQ Status lights for more information on the color of the lights - at which point Nanoenvi IAQ™...
- Page 21 6. 7. The page that will be displayed in your browser will look like this: Enter in the Network Name (1) the name of the WiFi network that Nanoenvi IAQ™ will use to send the data. Enter the password in the Password (2) field and re-enter it in the Repeat Password (3). If Nanoenvi IAQ™ is installed in a well- ventilated environment (eg room with forced ventilation, with opening windows or doors), check the box (4).
- Page 22 7. Press the Update settings (5). If everything went well, you will see a green ‘success’ message displayed in your browser, and the lights on the device will flash cyan again. At this time Nanoenvi IAQ™, has just been configured: the device is starting up and making its first connection.
- Page 23 Nanoenvi IAQ WiFi 1.3.1 User Manual Capítulo 6. Installation Pág. 18...
-
Page 24: Expected Use Of Nanoenvi Iaq™ Wifi
If you want to change the Nanoenvi IAQ™ (for example, change the WiFi network to which it connects) you must press and hold the configuration mode button (see Sección 4.2, “Product overview”) until the lights start to flash in cyan color. -
Page 25: Manteinance
Nanoenvi IAQ WiFi 1.3.1 User Manual Capítulo 8. Manteinance Nanoenvi IAQ™does not require specific maintenance. However, some cleaning considerations must be taken into account. 8.1. Limpieza • Do not wash with water. • Do not wash with objects that emit dust. -
Page 26: Troubleshooting
IAQ™ device only for configuration operations. When I press the Update settings button, in the Nanoenvi IAQ™, settings, I get a red error message in the browser. This can be due to various causes. Check that the device from which you are configuring Nanoenvi IAQ™ is connected to the WiFi network called NanoenviIAQ. -
Page 27: Frequently Asked Questions
This indicates that Nanoenvi IAQ™ has no connection to the MQTT broker. Wait a reasonable time and see if the problem persists. If so, contact you Nanoenvi IAQ™ dealer. If you have the means to do this, check that from the network that Nanoenvi IAQ™... - Page 28 User Manual What is the use of the box on the configuration page that asks if Nanoenvi IAQ™ is installed in a well-ventilated space? It's used to configure the CO2 sensor. If the box is checked, the CO2 sensor can only be recalibrated over time (this calibration requires air with a low CO2 concentration at least once a day).
-
Page 29: Repair
It's not necessary. The device implements state-of-the-art calibration algorithms. However, you can request a quote from your Nanoenvi IAQ™ dealer if you want an additional calibration. How many Nanoenvi IAQ™ devices do I need to monitor the air quality of a space? How much surface does the device cover? It depends on the type of space and the application: each Nanoenvi IAQ™... -
Page 30: Disposal
Nanoenvi IAQ WiFi 1.3.1 User Manual Capítulo 10. Disposal All the materials used to build this device and its packaging bear the marks and seals to be properly disposed of. This product complies with all current legal regulations, in particular the regulations regarding electrical and electronic equipment (EU Directives 2002/96 / EG WEEE and 2002/95 / EG RoHS) and the REACH ordinance (EU-REACH Community Directive and Law for the Execution of the Community Directive (EG) No. -
Page 31: Ordering Information
Nanoenvi IAQ WiFi 1.3.1 User Manual Apéndice A. Ordering information A.1. Product reference N E_IAQ _WALL_WIFI_CO Sen so r t yp es Pla cem en t WALL: wa ll p la cem en t CO : CO sen so r... -
Page 32: Nanoenvi Iaq Status Lights
When the LED lights are lit steady cyan (not blinking), CIAN CIAN CIAN in progress Nanoenvi IAQ is in configuration mode The device creates a WiFi access point with SSID 'NanoenviIAQ' LED1 LED2 LED3 and allows access to the configuration web. - Page 33 MQTT broker, either because the configuration is LED1 LED2 LED3 incorrect, or because the network does not allow to reach it, or because the broker is not working properly. Apéndice B. Nanoenvi IAQ Status lights Pág. 28...
-
Page 34: Contact
Nanoenvi IAQ WiFi 1.3.1 User Manual Capítulo 11. CONTACT 11.1. Contact details Envira IoT is a trademark of Envira Sostenible S.A. Envira Sostenible S.A. C.P.: 33428 Calle Ablanal Nº 11 Parque Tecnológico de Asturias Llanera – Asturias Spain www.enviraiot.es www.enviraiot.com sostenible@envira.es... - Page 35 www.enviraiot.es...
