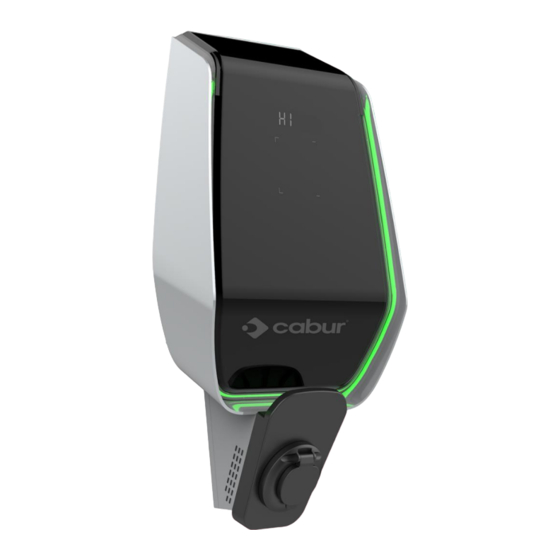

- Page 1 Cabur EASY EV Smart Chargers Installation and operating manual...
-
Page 2: Table Of Contents
Contents Revision history ..........................3 Introduction ..........................4 General information ......................4 2.1.1 About this manual ......................4 2.1.2 About safety ........................4 2.1.3 About maintenance......................5 Warranty and liability........................6 Limits of use ..........................6 Technical data ..........................8 Installation ........................... - Page 3 Markings Point of contact under Directive 2014/35/EU: Cabur S.r.L. – Località Isola Grande 45 17041 Altare SV Italy www.cabur.it...
-
Page 4: Revision History
1 Revision history Version Release date Authors Notes 07/07/2021 Cabur Technical Office Fistr draft derived from the EV PLUS manual 13/07/2021 Cabur Technical Office New name: Cabur_EV_EASY_Installation_Instruction_Manual 19/07/2021 Cabur Technical Office Updated cover Chapters 2,3,4 revised 20/11/2021 Cabur Technical Office... -
Page 5: Introduction
2 Introduction This manual introduces the Cabur EV EASY Charging Line products for EV battery charging and provides all the necessary information about their installation process and their usage. Important: Please read carefully this manual before installing and using the charger. -
Page 6: About Maintenance
▪ The EV must be blocked before connecting for charging ▪ It is prohibited to remove, modify, bridge or bypass any protective, safety or monitoring equipment and, in general, it is prohibited to apply modifications to the charger ▪ It is prohibited to reconfigure or modify the product ▪... -
Page 7: Warranty And Liability
3 Warranty and liability The warranty period of the charging station is specified by the official Cabur’s selling conditions. This operating manual serves to ensure fault-free and safe use of the product; compliance with its content is a prerequisite for the fulfilment of any warranty claims. - Page 8 The charging station must be mounted on a wall or on its own stand and installed in a stable way. It is not allowed to operate the charging station in a loose state (not steadily mounted) because this would not comply with the ratings. Unmounting, tampering with or deactivating the safety devices is forbidden.
-
Page 9: Technical Data
5 Technical data Product Information EVEASY22C EVEASY22S Model Power 3.5-22kW 3.5-22kW MODE 3 CASE C MODE 3 CASE B Charging Mode (with cable) (with socket) Connector standard Type 2 Socket Type 2 Dimensions 355x650x150 mm 355x650x150 mm (W x H x D) Weight 12.48kg 9.48kg... -
Page 10: Installation
Start Charging Automatic Plug & Charge Automatic Plug & Charge Indicators LED Light belt (red, blue, green) LED Light belt (red, blue, green) Connectivity Wifi (AP) Hotspot Wifi (AP) Hotspot Background Functions WIFI system upgrade WIFI system upgrade Charge reports Charge reports Reports Fault reports... -
Page 11: Installation Accessories
conditions are mandatory for a correct installation of the device (see also paragraph 4 “Technical data”): ▪ Operation temperature must be within the range -25 ℃ up to 50 ℃ ▪ Operation humidity must be ≤ 95% ▪ Avoid installation places affected by strong vibrations and mechanical shocks ▪... -
Page 12: Overvoltage Protection
An external type A RCD, with supply disconnection in case of DC fault current above 30mA shall be installed in the upstream side. The protection device selection and installation must be performed by qualified personnel only. 6.5 Overvoltage protection The charger is compliant to the Overvoltage Cayegory III 6.6 Installation cables The cable for connecting the mains supply to the charger must have a section in the following range 6-10 mm2. -
Page 13: Installation Steps
6.8 Installation steps In the following all the steps to perform for a correct installation of the wallbox: Step Description Picture Open package which contains the charger and its accessories. Package content: ▪ the charger ▪ four expansion screws ▪ a mounting template ▪... - Page 14 Step Description Picture Open the black front cover of the charger (this can be done simply moving at the same time the two black cursors which lock the cover in the back side of the charger) Remove the anti-theft screw located on the top of the mounted bracket (marked with the red circle in the picture)
-
Page 15: Installation On Stand
Step Description Picture Make sure input cable is not powered. Open the wire cover (circled in the picture), insert the power supply cables into the bottom hole, and connect the cables according to the signs as specified on the wire cover scheme. - Page 16 Step Description Picture Select a stable and solid concrete platform to fix the stand. In case such a platform is not available, pour a dedicated platform. The platform must be equipped with M10 bolts and a 40 mm diameter conduit embedded below the base.
- Page 17 Step Description Picture Remove the wall mounted metal plate that comes with the charger. Then remove the four M6x20 bolts on the stand hanging plate. Finally align the holes of the two metal plates and fix them using the M6x20 bolts.
- Page 18 Step Description Picture Now the supply cable must be connected. Open the frontal cover. Make sure input cable is not powered. Open the wire cover (circled in the picture), insert the power supply cables into the bottom hole, and connect the cables according to the signs as specified on the wire cover scheme.
-
Page 19: Operation
7 Operation After the charger is installed, it is ready for charging the EVs. The following describes the operating elements and the display/indicators elements of the charger. 7.1 Operating elements 8.1.1 Display Areas The charger has three display areas AREA1, AREA2, AREA3 on its front side Each AREA has its own function as in the following table: Display Type... -
Page 20: System Connectivity
8 System connectivity The charger is equipped with one type of connection interfaces: • the WiFi Access Point interface: used for configuration and monitoring purpose 8.1 WiFi interface The WiFi AP (Access Point) mode is available to let the person in charge of the installation or the user connecting to the charger. - Page 21 Step Description Picture Scan available WiFi networks with the connecting device utility Connect the device (PC, Tablet, Smartphone) WiFi network generated by the charger (it should have an SSID name similar to ACPILE_xx or similar to a numeric string)
-
Page 22: Configurations Through Wifi Ap Mode
Step Description Picture Note: only one device can be connected, to the AP, at a time 9.1.2 Configurations through WiFi AP mode When connected through the AP, the user can configure the charger parameters. The configuration is performed by means of a web app which connects to the charger internal web server. - Page 23 Step Description Picture Standby button This button indicates the status of the charging process with its label: • Standby means the charger is not charging Charger state button Pressing this button, the user can access the charger state page to monitor all the parameters of the charger and their status.
- Page 24 Step Description Picture Configuration button Pressing this button, the user can access the charger configuration pages to set all the parameters of the charger. After clicking on the configuration button, a login window will appear. Important note: to enter into the configuration pages the user must insert a password.
- Page 25 Step Description Picture Clicking “Setting” button a new setting page is presented, with the following menus: • System time Important note: these parameters shall be configured by qualified personnel only...
- Page 26 Step Description Picture Clicking on the “History” button the user can access the historical logs of the device Clicking on the “Report” button the user can access the reports of the device...
- Page 27 Step Description Picture Clicking “Upgrade” button the user can upgrade the system (see chapter 10 for details) Important note: these parameters shall be configured by qualified personnel only...
- Page 28 Step Description Picture Setting/System time In this page the system time can be set. The correct time is automatically read from the connecting device and is shown in the “Current time” field. Clicking the “Confirm” button the time setting is saved as the charger time. Important note: these parameters shall be configured by qualified personnel only...
-
Page 29: Charging Process
Step Description Picture IT Power system this button enables the charger to be supplied by IT power network systems Other Power systems this button enables the charger to be supplied by TT or TN power network systems The selected power system is indicated by the different colour of the button after the selection Important note: these parameters... -
Page 30: System Upgrade
10 System upgrade The following steps illustrate how to proceed to upgrade the system firmware Step Description Picture The connecting device (PC, tablet, smartphone) is connected to the charger WiFi AP. Open the internet browser. Connect to the following URL: http://192.168.1.1 The home page of the web app is shown. - Page 31 The upgrade process is initiated by clicking on the “Upgrade” button After entering the system upgrade page, the user must follow all the indications provided by the page itself, to avoid failures in the process and make it complete in a successful way.
- Page 32 A check sum MD5 value will automatically appear “Checksum” box. verification code generation is not necessary if the user already has the MD5 code, provide by the manufacturer (in this case the point 5 can be skipped) The user shall now copy the value in the “Checksum”...
-
Page 33: Language Configuration
11 Language configuration The charger is configured with its factory default language. Other languages can be configured for the web-app interface, by a system upgrade operation with the same process illustrated in chapter 10. This system upgrade operation will not affect the system functionalities but will only change the language.
