PASCO PS-3318 Assembly

P P ASCObot Body ASCObot Body
PS-3318

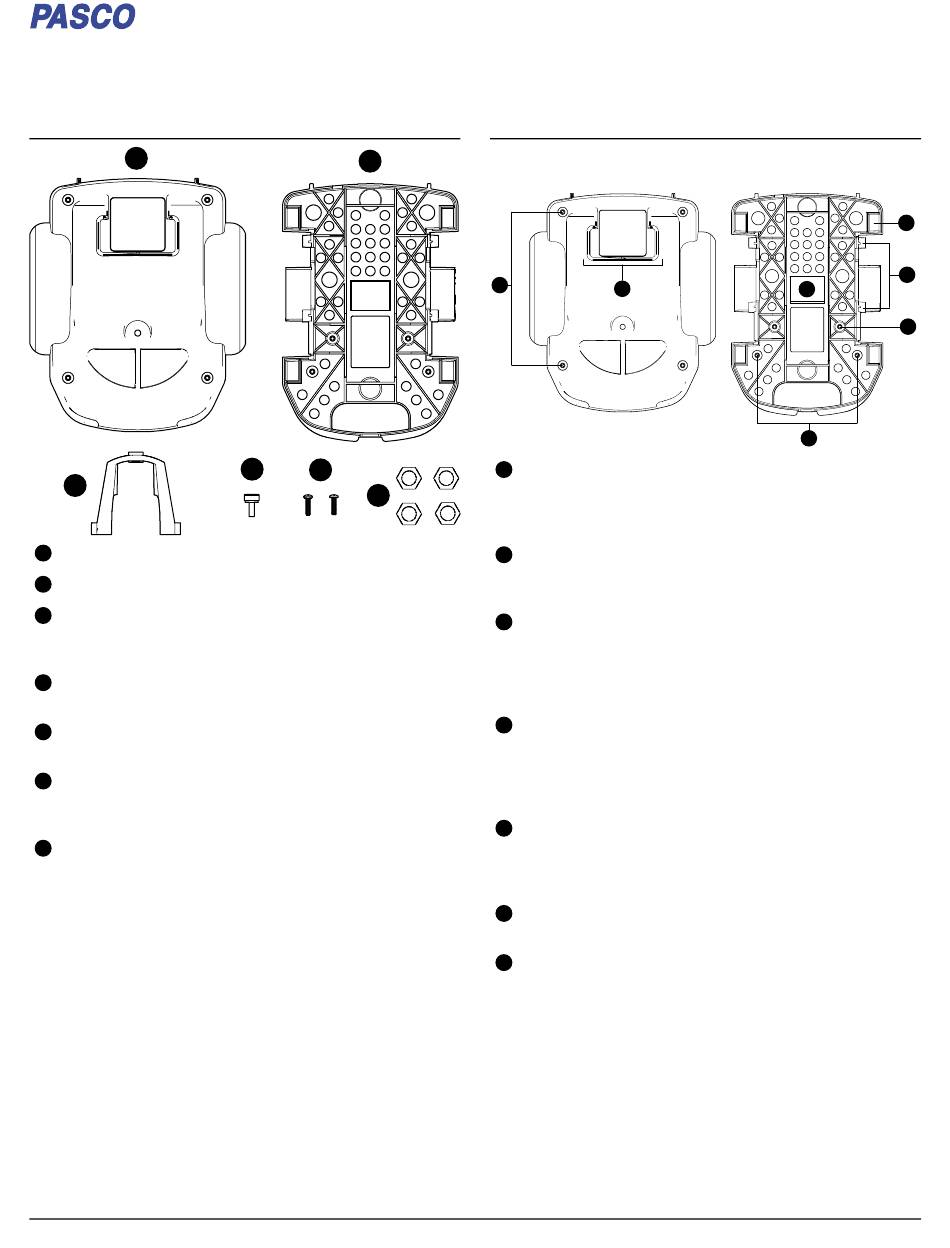

What's included What' s included
1
3
Top frame Top frame
1
Bottom frame Bottom frame
2
Hold-down Hold-down
3
Use the hold-down to secure the //control.Node to the bottom
frame.
Thumbscrew Thumbscrew
4
Use the thumbscrew to secure the top frame to the hold-down.
2× Screws, 4-40×7/15" 2× Screws, 4-40×7/15"
5
Use these screws to secure the hold-down to the bottom frame.
4× Nuts, 5/16" 4× Nuts, 5/16"
6
Use these nuts to add weight to the bot to make the bot front-
heavy or back-heavy, depending on the application.
Screwdriver (not shown) Screwdriver (not shown)
7
2
4 5
6
F F eatur eatures es
1
2
Top mounting holes Top mounting holes
1
Use the four mounting holes on the top frame to mount
accessories such as the Gripper (PS-3225). Each hole accepts 4-40
screws.
//code.Node holder //code.Node holder
2
Insert a //code.Node (PS-3231) to ride on the bot. The
//code.Node can be inserted facing the front or back of the bot.
//control.Node compartment //control.Node compartment
3
Insert the //control.Node into the compartment with the
Bluetooth and battery status lights at the back of the bot. The
hole on the bottom of the frame provides access to the power
button and the USB port.
Mass compartment Mass compartment
4
Use the two compartments in the front and the two in the back to
add mass to the bot. Adding masses helps to prevent the bot
from tilting back and forth while moving. Four nuts are included
with the bot to insert into the compartments.
Motor mounting holes Motor mounting holes
5
Use these mounting holes to mount the High Speed Stepper
Motors to drive the bot. You can also mount any standard servo,
such as the Continuous Rotation Servo (SE-2977).
Hold-down mounting holes Hold-down mounting holes
6
Use to mount the hold-down to the bot.
Module mounting holes Module mounting holes
7
Use to mount the Line Follower or Range Finder modules to the
bot.
Product Guide
012-17242A
4
5
3
6
7
PASCObot Body | 1
