antrax

Datentechnik GmbH

info@antrax.de - www.antrax.de

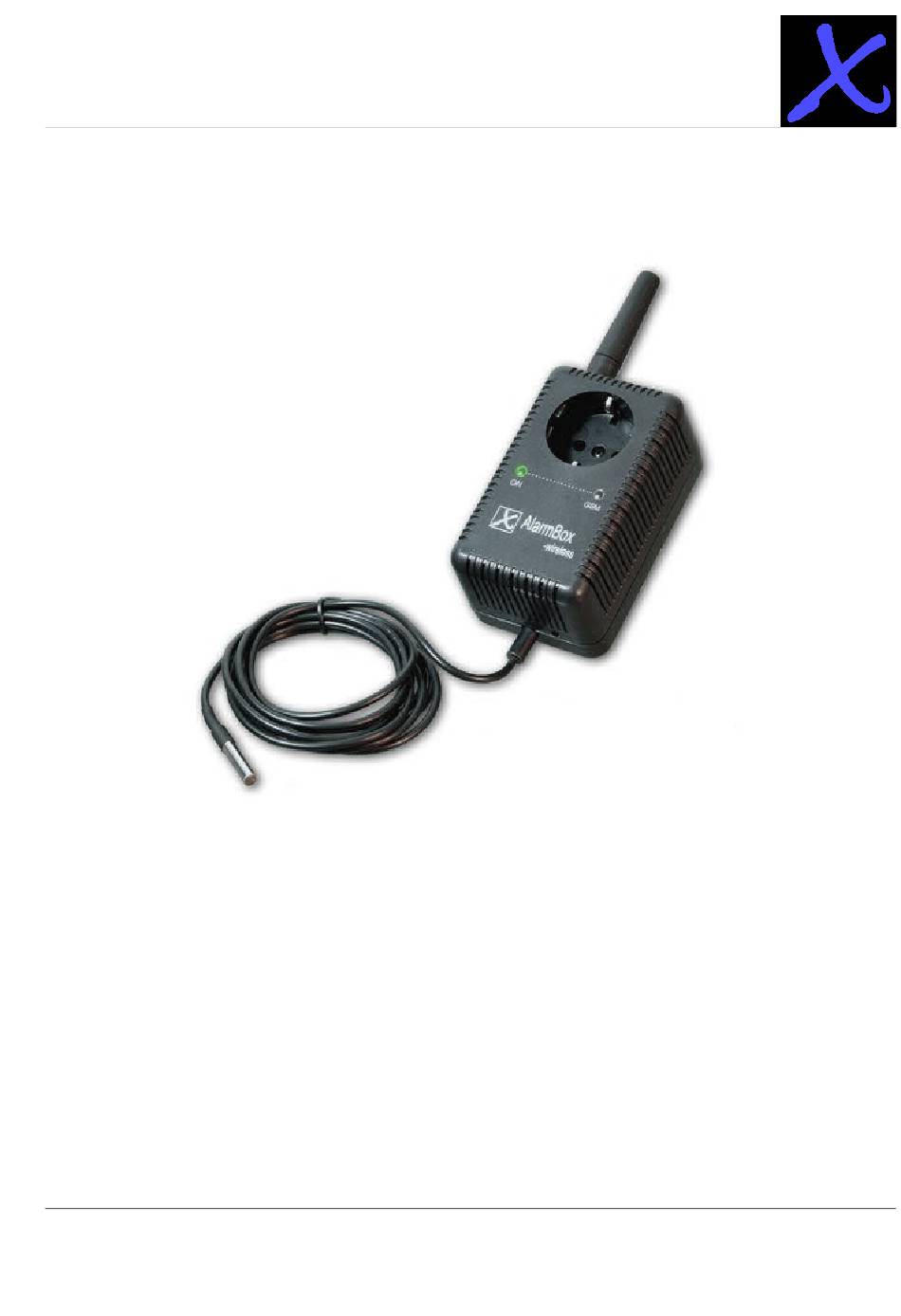

AlarmBox-wireless, Type GSM

230V-Box with integrated GSM module and temperature sensor

Manual

11.04.2014

Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628

- 1 -

Table of Contents

Need help?

Do you have a question about the AlarmBox-wireless and is the answer not in the manual?

Questions and answers

Summary of Contents for Antrax AlarmBox-wireless

Page 1 Datentechnik GmbH info@antrax.de - www.antrax.de AlarmBox-wireless, Type GSM 230V-Box with integrated GSM module and temperature sensor Manual 11.04.2014 - 1 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
Page 2: Table Of Contents
Datentechnik GmbH info@antrax.de - www.antrax.de Content  General  Using the AlarmBox-GSM  Safety Instructions  Scope of Delivery  Hardware  Software  System Requirements  Technical Features  G eneral  Load Circuit   CE-Marking ...
Page 3: General
(SMS) from the box. Also the AlarmBox-wireless, Model GSM allows to remotely switch ON and OFF a 230V electrical appliance over a voice-call ("normal" phone call call to the box) or via text message (SMS) to the the box.
Page 4: Safety Instructions
Datentechnik GmbH info@antrax.de - www.antrax.de Safety Instructions  Do not open the AlarmBox-GSM. It contains no parts to be serviced by you.  Only use the AlarmBox-GSM indoors and do not subject the unit to moisture or humidity.  Also use the temperature sensor without the influence of humidity.
Page 5: Hardware
Datentechnik GmbH info@antrax.de - www.antrax.de Delivery Hardware Everything there? The delivery of a AlarmBox-GSM unit contains:  the AlarmBox-GSM incl. temperature sensor (whit approx. 2m connector cable)  this manual Software  Software is not required for the control of the AlarmBox-GSM...
Page 6: Technical Features
Datentechnik GmbH info@antrax.de - www.antrax.de Technical Features General  Operating voltage: 230/240V~ 50/60Hz  Protection class: IP20, for dry rooms only  Connector system: SCHUKO  The current switching status is indicated by a green LED (labelled "ON") ...
Page 7: Installation
Datentechnik GmbH info@antrax.de - www.antrax.de Installation Hardware  Insert the 230V plug of the device to be monitored by the AlarmBox-GSM into the socket of the AlarmBox-GSM  Insert the AlarmBox-GSM into a 230V outlet socket  CAUTION: after inserting the AlarmBox-GSM socket the connected device is switched ON or OFF depending on the previous set state ...
Page 8 Datentechnik GmbH info@antrax.de - www.antrax.de Button Keeping the button pressed for more than 3 seconds the state of the socket is being ''toggled'. The socket is either ''ON'' or ''OFF'' when the button is pressed. The ON-LED indicates the current state of the socket.
Page 9: Gsm
Datentechnik GmbH info@antrax.de - www.antrax.de Getting Started Parameter on the SIM card The SIM card intended for the us with the AlarmBox-GSM can be prepared with any mobile phone or PC SIM card reader. The prepared SIM card should be inserted into the small slot on the underside of the AlarmBox-GSM.
Page 10: Parameters
Datentechnik GmbH info@antrax.de - www.antrax.de Blinc codes of the GSM-LED: The AlarmBox-GSM uses different flashing codes of the "GSM" LED to indicate the current condition of the "GSM" module. If the "GSM" LED emits one of the flashing codes for an extended period of time, there may be an error as described below.
Page 11: Controlling The Alarmbox-Gsm Via Voice-Call
Datentechnik GmbH info@antrax.de - www.antrax.de Voice-Call → AlarmBox-GSM Controlling the AlarmBox-GSM via Voice-Call The AlarmBox-GSM can be controlled by authorized callers with the help of a voice call. A caller is authorized, if  He can identify himself with a correct access code (i.e.
Page 12 Datentechnik GmbH info@antrax.de - www.antrax.de Voice-Call → AlarmBox-GSM Responses from the AlarmBox-GSM when using Voice-Call The AlarmBox-GSM contains an integrated audio response unit. After the acceptance of an incoming call the AlarmBox-GSM transmits a greeting message and requests the input of the password.
Page 13 Datentechnik GmbH info@antrax.de - www.antrax.de Voice-Call → AlarmBox-GSM Access code vs. PIN The pre-set access code for the AlarmBox-GSM via Voice-Call is "1357". This means that as long as this access code is not changed (using the telephone book entry "PWD" on the SIM card) the pre-set access code will remain valid.
Page 14: Controlling The Alarmbox-Gsm Via Sms
Datentechnik GmbH info@antrax.de - www.antrax.de SMS → AlarmBox-GSM Controlling the AlarmBox-GSM via SMS CAUTION: When controlling the AlarmBox-GSM via SMS please note that it can take up to 24 hours until an SMS reaches the AlarmBox-GSM. The delivery times vary greatly from provider to provider.
Page 15 Datentechnik GmbH info@antrax.de - www.antrax.de Command-SMS → AlarmBox-GSM Text in the SMS Value Meaning VoNo= Phone number Set voice-call or SMS number to be called in VoiceNo= case of an alarm. ------------------- Maximum one number for a voice call and...
Page 16 Datentechnik GmbH info@antrax.de - www.antrax.de → AlarmBox-GSM – SMS Alarm Number Text in the SMS Meaning AlarmBox-Wireless: Sender logo 20140327 Firmware version Output: Current switching state of the socket 230V: State of the supply voltage current temp.: Current determined temperature...
Page 17 Datentechnik GmbH info@antrax.de - www.antrax.de Example of a AlarmBox-GSM - Status - SMS: AlarmBox-GSM 20140327 Output: ON 230V: OK Current temp.: 25 Grad Lower temperature limit: -10 degrees Higher temperature limit: 30 degrees Voice-No.: 0522123456 SMS-No1: 0171123456 SMS-No2: 0172123456...
Page 18: Alarming
Datentechnik GmbH info@antrax.de - www.antrax.de Alarming CAUTION: The alarming function is only active, if a valid alarm phone number was stored to the AlarmBox-GSM. Otherwise no alarming will occur! (see also: Operating the AlarmBox-GSM SMS) An alarm is triggered in case of falling down or exceeding the set lower or higher alarm temperature limit •...
Page 19 Datentechnik GmbH info@antrax.de - www.antrax.de In order to avoid a permanent alarm ”loop”, no other alarming because of the same alarm event is triggered. Only after reset to ”normal state” the alarming function is again active. For example, after an outage of the power supply and the corresponding alarming, any additional alarming is stopped until the power supply is available again.
Page 20: Quick Introduction
Datentechnik GmbH info@antrax.de - www.antrax.de Quick introduction We recommend the following actions for a quick introduction to service: 1.) Controlling the SwitchBox-GSM via a landline or mobile phone:  The SIM card intended for use in the AlarmBox-GSM can be prepared in every mobile phone or PC SIM card reader.
Page 21: Troubleshooting
Datentechnik GmbH info@antrax.de - www.antrax.de Troubleshooting Current PIN After turning the power on the AlarmBox-GSM tries to activate the SIM card using the PIN stored in the configuration memory. After three (Error code or consecutive attempts with the wrong PIN, due for instance to the fact that...
Page 22 Datentechnik GmbH info@antrax.de - www.antrax.de SMS not The AlarmBox-GSM sends a SMS similar to a 'normal' Mobile Phone.. received If an SMS does not arrive immediately with the addressee, it is normally due to long transmission times by the Service Provider. In particular it...
Page 23: Terminology
Datentechnik GmbH info@antrax.de - www.antrax.de Terminology AlarmBox-GSM - Designation of the only button on the AlarmBox-GSM Button ON-LED Designation of the LED marked "ON" on the AlarmBox-GSM GSM-LED Designation of the LED marked "GSM" on the AlarmBox-GSM AlarmBox-GSM -...
