morse 152 Quick Start Manual

The Specialist In Drum Handling Equipment
Parts List and Diagram for Models 152 and 153 Drum Hand Trucks
Manufactured 03/2018 to ______
Assembly Instructions
1. Slide the Handle Assembly tube through the
Hook Slide Weldment (item 3) and into the
Base Assembly tube and align drilled holes.
2. Insert bolt (item 5) through the aligned
holes and secure with Lock Nut (item 4) to
fasten the Handle Assembly to the Base
Assembly.
Note: Hook Slide Weldment slides freely on
the Handle assembly tube to engage the upper
rim of your drum.
WARNING:
2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to
the State of California to cause birth defects or other reproductive harm.
For more information go to
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc.
This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and
www.P65Warnings.ca.gov
service@morsedrum.com
Form PL152-153 (0315-____)

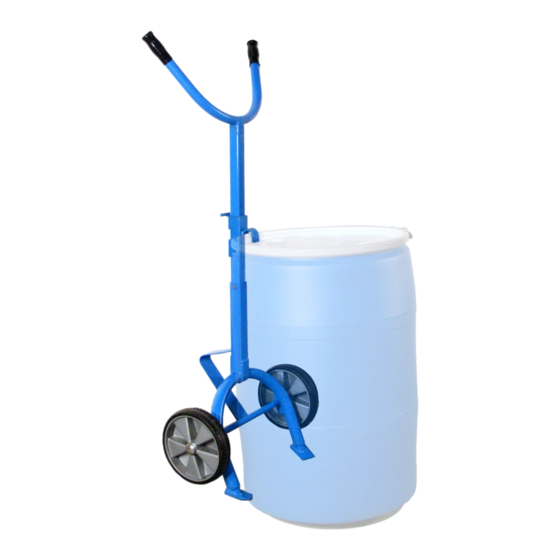

Models 152 & 153
2-Wheel Drum Trucks
Handle Assembly
Hook Slide Weldment
Model 152 shown
(315) 437-8475
Base Assembly
103 Kuhn Rd.
Syracuse, NY 13208 U.S.A.
(Updated 7 Oct, 2021)
1
