Summary of Contents for Ronbow 711040

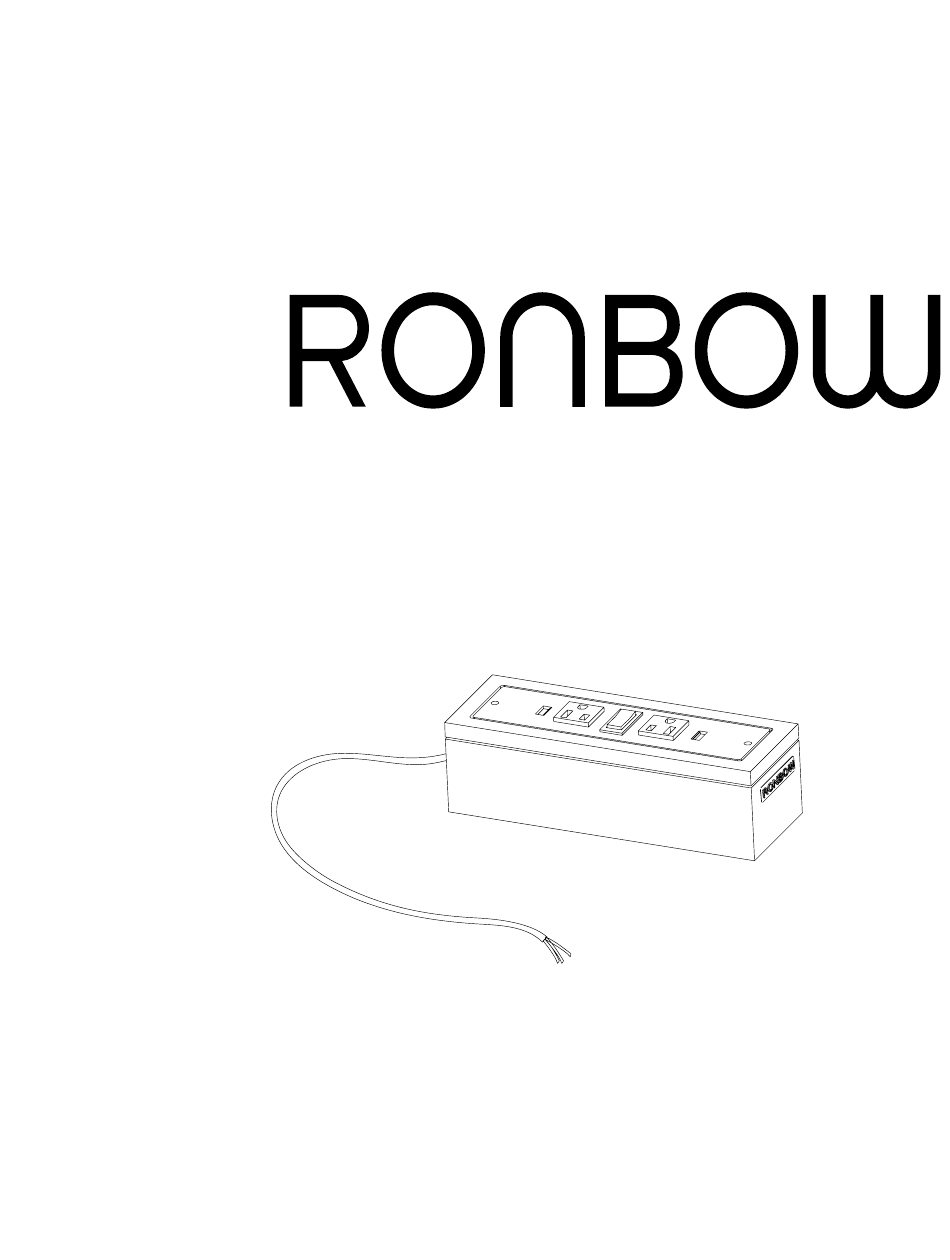

- Page 1 INSTALLATION AND CARE GUIDE ELECTRICAL OUTLET BOX 711040...
- Page 2 ELECTRICAL OUTLET BOX Model : 711040 Tools Required ELECTRICAL OUTLET BOX FIELD CONNECTION CIRCUIT BREAKER Red = Positive Red = Positive OUTLET 120VAC 20A GFI White = Negative White = Negative Black = Ground Black = Ground ALL WIRING SHOULD BE DONE BY A QUALIFIED LICENSED ELECTRICIAN.
- Page 3 ELECTRICAL OUTLET BOX Model : 711040 INSTALLATION Step 2: Figure 2. Use cloth with dabs of isopropyl alcohol to clean off the surface. When surface is cleaned, remove the 3M tape cover on the back of the outlet box See Figure 2.
- Page 4 ELECTRICAL OUTLET BOX Model : 711040 INSTALLATION - CONTINUE Step 4: Figure 4. Remove the 3M tape cover on the back of the cord clip, and place it at your desired wire path. See Figure 4. Step 5: Figure 5.
