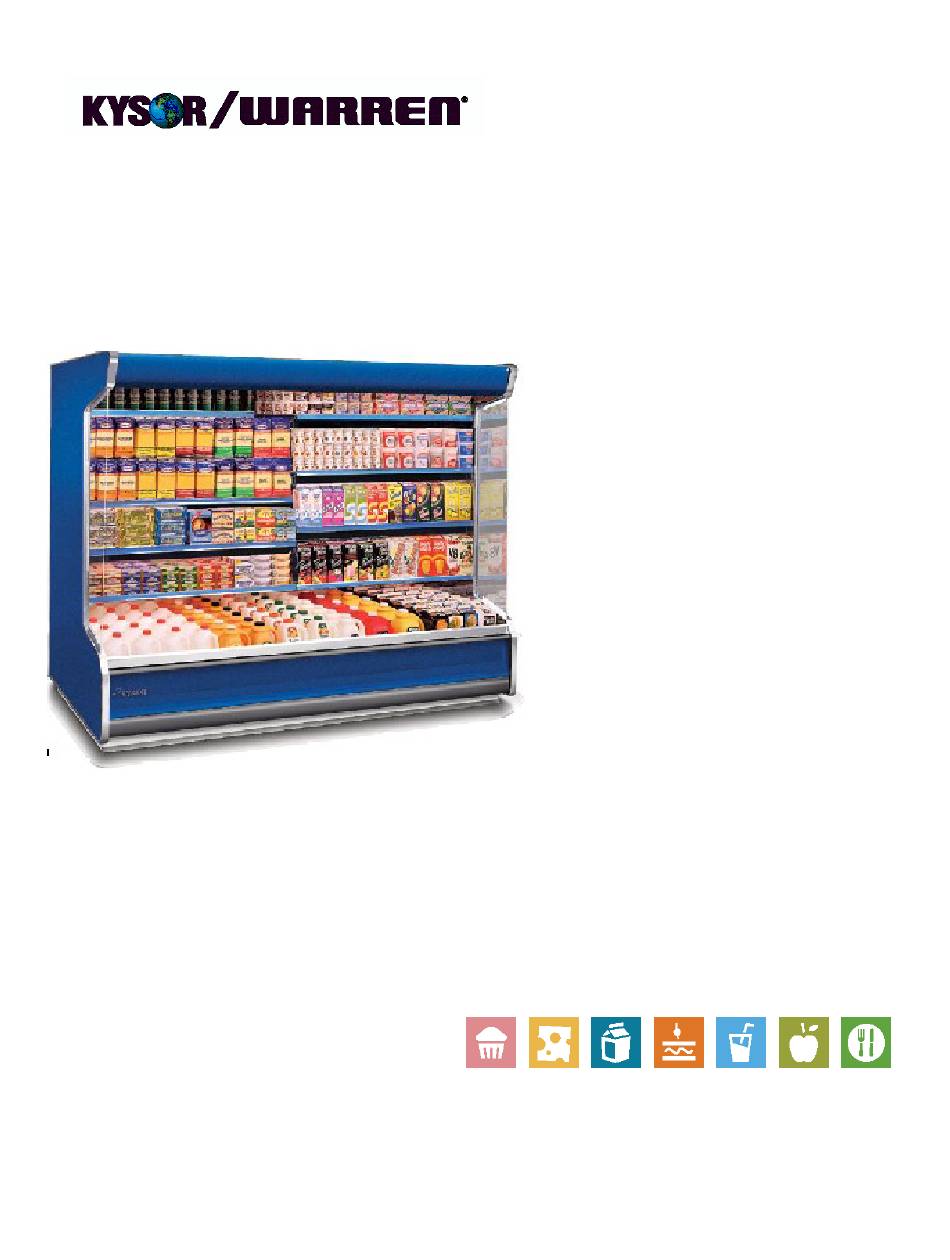

Kysor/Warren HQD6, HQD6L Installation & Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Part Number:
31E04045
Date: 06/09/2010
5201 Transport Boulevard
Columbus, GA. 31907
706-568-1514
I
NSTALLATION
&
O
PERATION
M
ANUAL
HQD6, HQD6L, (Q)D6(1)(3), D6L(1)(3), (Q)D6H(1)(3), D6R(1)(3), D6RL(1)(3), D6RLG(1)(3),
D6N(1)(3)
IMPORTANT – KEEP IN STORE FOR FUTURE USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HQD6, HQD6L and is the answer not in the manual?

Questions and answers

Related Manuals for Kysor/Warren HQD6, HQD6L

Summary of Contents for Kysor/Warren HQD6, HQD6L

  • Page 1 Part Number: 31E04045 Date: 06/09/2010 5201 Transport Boulevard Columbus, GA. 31907 706-568-1514 NSTALLATION & PERATION ANUAL HQD6, HQD6L, (Q)D6(1)(3), D6L(1)(3), (Q)D6H(1)(3), D6R(1)(3), D6RL(1)(3), D6RLG(1)(3), D6N(1)(3) IMPORTANT – KEEP IN STORE FOR FUTURE USE...
  • Page 2 Part # 31E11012 INSTALLATION & OPERATION MANUAL ADDENDUM BALLAST RELOCATION The ballast for this case has been relocated as of January 09, 2006. The advantage of the new location allows for more shelf space and lowers the BTU. The information we have placed in this addendum is for the shelf light ballast only.
  • Page 3 2/6/2006 Addendum – Ballast Relocation...
  • Page 4 WARNING! It is imperative that the pins of the bulbs and the shelf power cords be completely seated in their respective lamp holder or receptacle (see pictures below). If they are not completely seated, an electrical arc could occur which will cause the lamp holders to melt and become an electrical hazard.

  • Page 5: Wiring Diagram

    Wiring Diagram Both Canopy and Raceway 2/6/2006 Addendum – Ballast Relocation...
  • Page 6 Wiring Diagram for Canopy Light 2/6/2006 Addendum – Ballast Relocation...
  • Page 7 Introductions – General Information This manual has been prepared for our customers and the personnel involved in setting up and maintaining our cases. The Kysor//Warren multi-shelf self service dairy cases are designed to merchandise packaged dairy/deli products. These cases should be installed and operated according to the instructions contained in this manual to insure proper performance.

  • Page 8: Heat Exchangers

    Receiving/Shipping Damage/Lost Items All equipment should be examined for shipping damage before and during unloading. If there is any damage, the carrier should be notified immediately and an inspection requested. The delivery receipt must be noted that the equipment was received damaged. If damage is of a concealed nature, you must contact the carrier within three (3) days following delivery.
  • Page 9 Plan Views and Cross Sections D6L, D6, D6H...
  • Page 10 D6RL, D6R...
  • Page 12 HQD6 4 3 1/8 L OA D LI MI T 5 0 1 /1 6 5 9 1 3/1 6 8 0 9 /1 6 3 2 1 /1 6 2 3 5 /8 1 5 5 /8 8 1 1 /1 6 3 9 1 1 /1 6 4 4 1 /1 6...
  • Page 13 HQD6L 43 1/8 LO AD LIM I T 54 5/16 59 13/16 80 9/16 1 3/4 19 3/8 15 5/8 8 11/16 39 5/8 NOTE: For sizing conventional/individual condensing units, add 8% to BTUH load. Where termination temperatures are given, mechanical defrost termination is required.
  • Page 14 Maximum Shelving Size Recommended Not to exceed 24” Case Data HQD6 CASE DATA AMPS 4’ 6’ 8’ 12’ PSC Fan / # Fans 0.37/1 0.52/ 2 0.74/2 1.11/3 ECM Fan / # Fans 0.30/1 0.60/2 0.60/2 0.90/3 T8 Lights 0.25 0.22 0.25 0.25...
  • Page 15 4’ 6’ 8’ 12’ Facing Area 16.8 ft 25.1 ft 33.5 ft 50.2 ft Cubic Capacity 47.8 ft 71.6 ft 95.5 ft 143.2 ft Discharge Air Discharge Air Evap Temp Velocity Temp (1 hr. after Defrost) 30°F 250 FPM 34°F Evaporator Temp = 27°F when lighted.
  • Page 16 ECM Fan 1320 Add BTUH per FT of Lighted Shelf Capacities 4’ 6’ 8’ 12’ Facing Area 16.8 ft 25.1 ft 33.5 ft 50.2 ft Cubic Capacity 47.8 ft 71.6 ft 95.5 ft 143.2 ft Discharge Air Discharge Air Evap Temp Velocity Temp (1 hr.
  • Page 17 Hot gas 48°F BTUH per Ft - Unlighted Shelves STD Fan 1300 PSC Fan 1290 ECM Fan 1275 NOTE: For sizing conventional/individual condensing units, add 8% to BTUH load. *For lighted shelves, please add 19 BTUH. Discharge Air Discharge Air Evap Temp Velocity Temp...
  • Page 18 Cubic Capacity 75.10 cf 112.66 cf #Defrosts/Failsafe (Off-Cycle) 4/40 4/40 #Defrosts/Failsafe (Electric) 4/30 4/30 #Defrosts/Failsafe (Hot Gas) 4/20 4/20 Temp. Termination Hot Gas (All modes) +55 ºF +55 ºF Superheat Settings 6-8 ºF 6-8 ºF Dairy - Discharge Air Temp 28-32 ºF 28-32 ºF Deli - Discharge Air Temp...
  • Page 19 CAUTION: Failure to maintain maximum design conditions may result in operational issues such as: increased BTUH load, high product temperature, coil icing, product frosting, and external sweating. CAUTION: Failure to properly install electrical wiring and control wiring as per wiring diagram(s), defrost settings, and temperature set-points may result in operational issues such as: increased BTUH load, high product temperature, coil icing, product frosting, and external sweating.

  • Page 20: Unit Installation

    UNIT INSTALLATION These display cases may be installed individually or in a continuous line up consisting of several 4’, 6’, 8’ and 12’ sections using a joint kit. A Plexiglas divider kit must be used between cases operating on different refrigeration systems. The divider will be factory installed if specified on order.

  • Page 21: Installation Instructions

    UNIT INSTALLATION Preparation Prepare the installation area as follows: 1. Clean area where case is to be installed. 2. Verify installation area is at least 15 feet from any outside entrances or heating and cooling outlets. 3. Verify at least 2 feet distance between hot and cold cases. 4.
  • Page 22 UNIT INSTALLATION 3. Ensure the evaporator cover is installed correctly with the deck pans installed. 4. Move the case into position, install, adjust superheat, and perform the operational checkout procedures following the instructions within this manual. Moving Case Once the case has been removed from the protective crate and removed from the pallet, the case can be moved as follows: WARNING! Cases are very heavy and require at least two people to move them into position.
  • Page 23 UNIT INSTALLATION 8. Connect refrigerant lines. Reference procedure later in this chapter. 9. Install all ends, caps, and trim per the applicable instructions contained in the Assembly chapter of this manual. 10. Remove shipping tape on fluorescent lamps and remove all other shipping material. 11.
  • Page 24 UNIT INSTALLATION Joining Two or more cases of like models can be joined together to form a continuous line up. Reference and become familiar with Figures 3–1 through 3–3 prior to joining the cases, and then join the cases using the instructions that follow. Line Up Bolt Line-Up Bolt Holes and Caulking Diagram on Side of Cases...
  • Page 25 UNIT INSTALLATION Access Cover Canopy and Front Rail Alignment Ensure the canopy and front rails are aligned on all cases in the line up. Adjust case height as appropriate to properly align cases. Cases should be aligned within 1/16 in. Joining Instructions 1.
  • Page 26 UNIT INSTALLATION Installation of Trim, Caps, and Shelves Install all trim, caps and shelves using the instructions provided in the Assembly chapter of this manual. Case front part selection and case trim selection is provided in the information that follows. Case Front Part Selection Case Front Part Selection CASE FRONT PART SELECTION...
  • Page 27 UNIT INSTALLATION Case Trim Selection (3000 Series Only) Case Trim Selection (3000 Series Only) FOR CASES IN A LINEUP: o Canopy End Trim - two per lineup o Glass Cap End Trim – two per lineup o Glass Cap Joint Trim – one per joint o Front Panel End Trim –...
  • Page 28 UNIT INSTALLATION Installing/Connecting Waste Outlet Drip Pipe Waste Outlet Drip Pipe Trap (Ship Loose, Typical) Improperly installed drip pipes (which is also the waste outlet) can seriously affect the operation of this case and result in increased maintenance costs. Listed below are some general rules for drip pipe installation.

  • Page 29: Temperature Control

    UNIT INSTALLATION Drip Pipe Installation (Inside-Bottom of Case) WATER SEAL MUST BE INSTALLED 1. Never use a double water seal. 2. Always provide as much fall as possible in drip pipe. (1" fall for each 4’ of drip pipe.) 3. Avoid long runs in drip pipe, which makes it impossible to provide maximum fall in pipe. 4.
  • Page 30 UNIT INSTALLATION Single Condensing Unit On single condensing unit systems a thermostat should be used to control temperatures. The thermostat bulb should be mounted in the discharge air. Thermostat On single condensing units the thermostat (if utilized) is located at the left end of the case in the canopy light rail.
  • Page 31 UNIT INSTALLATION Parallel Condensing Units On parallel condensing units, temperature control is typically provided by an EPR valve. Evaporator Pressure Regulator (EPR) Valve The EPR valve can be used to control case temperature. This is accomplished by adjusting the valve to the desired flow to maintain the case temperature. Refer to manual 31E08001, Installation and Operation Manual for Parallel Compressor Units, for a complete explanation of the expansion valve.
  • Page 32 UNIT INSTALLATION Location The electrical raceway is located in the front of the unit beneath the kickplate. Electrical Connections - General Case Lighting Cases are standard with one row of high output lamps. Ballasts are located behind the canopy. If lighted shelves are supplied, ballasts for each shelf will be located under each shelf in the electrical raceway.
  • Page 33 UNIT INSTALLATION Input Requirements and Model Table Electrical input requirements vary with model selected. The electrical model table (shown in the following figures) provides the electrical input requirements for all cases.
  • Page 34 UNIT INSTALLATION D6 Electrical Model Table, QD6(1)(3)-04 Through D6H(1)(3)-6...
  • Page 35 UNIT INSTALLATION D6 Electrical Model Table, D6H(1)(3)-6 Through D6R(1)(3)-4...
  • Page 36 UNIT INSTALLATION D6 Electrical Model Table, D6R(1)(3)-4 Through D6RL(G)1-6...

  • Page 37: Electrical Connections

    UNIT INSTALLATION Electrical Connections For safety purposes and to reduce the potential for injury or death to installation personnel, and to reduce the potential to harm the equipment during the installation process, all warnings and cautions for electrical installation are repeated. Please read and understand all warning and cautions before proceeding with the electrical installation.
  • Page 38 UNIT INSTALLATION ALL CASES MUST BE GROUNDED. The case data chart shows the electrical ratings for your case. This is the same information that appears on your refrigeration nameplate. The case data chart is located in Chapter 2. Note: Fan motors must operate continuously and panel must be marked sufficiently to prevent the fan motors and anti-sweat heaters from being turned off accidently.
  • Page 39 UNIT INSTALLATION Wiring Diagram...
  • Page 40 UNIT INSTALLATION Wiring Diagram - Canopy One (1) and Two (2) Light Rows...
  • Page 41 UNIT INSTALLATION Wiring Diagram - Canopy Two (2) and Three (3) Light Rows...
  • Page 42 UNIT INSTALLATION Wiring Diagram - Canopy Two (2) Light Rows and Nose Light...
  • Page 43 UNIT INSTALLATION Wiring Diagram - Off Cycle Defrost...
  • Page 44 UNIT INSTALLATION Case Refrigeration Fan Motors and Lighting. The case electrical wiring for the refrigeration fan motors and lighting are all terminated within the electrical raceway as identified above. Connect the electrical wiring as follows: Note: It is recommended that the refrigeration fan motors and the lighting are fused/CB independently at the AC service cabinet.
  • Page 45 UNIT INSTALLATION Location The refrigeration lines are located under the deck pans on the cases. A refrigeration outlet is provided in the front right hand end of the cases. All refrigeration lines need to be as close to the drain pan as possible so as not to obstruct the air pattern or block the deck pans. See the section “Recommended Piping Practices”...
  • Page 46 UNIT INSTALLATION 2. Refrigeration lines in cases in line-ups can be reduced. However, the lines should be no smaller than the main trunk lines in at least 1/3 of the cases and no smaller than one size above the case lines to the last case. Reductions should not exceed one line size per case. It is preferred to bring the main trunk lines in at the center of line-up.

  • Page 47: Installation Completion

    UNIT INSTALLATION 14. Do not use bullhead tees in suction lines. An example is where suction gas enters both ends of the tee and exits the center. This can cause a substantial increase in pressure drop in the suction lines. 15.
  • Page 48 ADJUSTMENTS This chapter provides the adjustments that can be made to the Kysor//Warren case. Expansion Valve and Superheat Caution: During service of this equipment, precautions should be taken to prevent loss of refrigerant to the atmosphere. The expansion valve furnished with your case has been sized for maximum coil efficiency. To adjust superheat perform the following: 1.
  • Page 49 ADJUSTMENTS Shelves Shelves can be adjusted/installed into various positions in the case using the installation points on the case backing. To adjust/move the shelves, refer to the shelf installation procedure located in the Installation chapter of this manual. Leveling Cases All cases must be located on a firmly based floor and leveled within plus or minus 1/16 in.
  • Page 50 SERVICE INSTRUCTIONS Service instructions are provided to allow for proper servicing of the case. This includes instructions for servicing refrigerant levels. Always follow the service instructions to limit the possibility of damaging the case or the case components. Refrigerant Refrigerant levels can be adjusted by certified refrigeration technicians following the instructions provided in the Installation and Operation Manual for Parallel Compressor Units, Manual Part Number 31E08001.

  • Page 51: Normal Operation

    OPERATION The following paragraphs give the procedures to follow for the proper loading and operation of the case. Loading Merchandise should not be placed in the fixture until all controls have been adjusted and the case is at the proper temperature. AT NO TIME SHOULD THE CASE BE STOCKED BEYOND THE LOAD LINE OR OVER THE FRONT EDGE OF ADJUSTABLE SHELVES.

  • Page 52: Operation Checklist

    OPERATION Hot Gas Defrost Models On hot gas defrost models (optional for parallel compressor operation only) hot gas is routed through the suction line and evaporator coil. It exits the coil through a by-pass around the expansion valve and heat exchanger to return to the liquid line where the condensed liquid is use to feed the other cases on the same parallel unit.

  • Page 53: Troubleshooting

    TROUBLESHOOTING Defrost A quick check of adequate defrost can be made by checking the air movement across the cases. Smoke should move gently from the discharge air honeycomb to the return air grill, but an iced-up coil will be immediately apparent by little or no air current leaving the honeycomb. Case Icing If operation of the case seems normal but the case seems to ice up every three to four weeks, the drain connection to the case and cleanliness of the drain should be checked.
  • Page 54 TROUBLESHOOTING 7. Check for line or compressor leakage. Leakage can be located by heavy deposits of oil on lines or compressor. OK? Go to step 8. If not OK, repair lines or replace compressor and proceed to step 8. 8. Service refrigerant. Dehydrate the refrigerant lines and adjust refrigerant level using the instructions contained in the appropriate chapters of this manual and in the Parallel Compressor Units Installation and Operation Manual, P/N 31E08001.
  • Page 55 REMOVAL/DISASSEMBLY Note: Although the procedures may give complete disassembly information, only disassemble to the extent necessary to perform the repair. Keep all hardware that is removed. This hardware will be used for installation of the component after repair. Front case Location Diagram The following steps are given to facilitate repair of the case or the case components.

  • Page 56: Lower Front Panel

    REMOVAL/DISASSEMBLY 3. Remove PTM from shelf. 4. Remove brackets from shelf standard. Lower Front Panel Not equipped on these models. Upper Front Panel The upper front panel is located on the upper, front of the case. The 2500 series and the 3000 series utilize different upper front panels.
  • Page 57 REMOVAL/DISASSEMBLY The canopy panel is located on the top of the D6 cases and does not require removal for routine maintenance. Removal is not necessary to facilitate maintenance to the canopy. If removal of the canopy and shelf lamp ballasts are required, refer to that procedure later in this manual. To remove the canopy panel, perform the following: 1.

  • Page 58: Joint Trim

    REMOVAL/DISASSEMBLY Case Trim This paragraph provides the instructions for removing the various case trim located throughout the case and is dependant upon configuration/line up. Kickplate Trim The kickplate trim is located on the front of the kickplate. To install the kickplate trim, perform the following: 1.
  • Page 59 REMOVAL/DISASSEMBLY Rub Rail The rub rail is located on the front of the tub. To remove the rub rail, perform the following: 1. Remove the rub rail by sliding the trim out of the retaining slots in the case. 2. Remove rub rail. Case Temperature Display Note: There are several ways to monitor the case temperature.
  • Page 60 REMOVAL/DISASSEMBLY 4. Remove analog case temperature display. Digital Case Temperature Display and Probe When equipped with an digital case temperature display, the display is located on the inside, top, front of the case, or on the canopy panel. To remove the digital case temperature display, perform the following: Note: The probe for the digital case temperature display is an integral part of the display.
  • Page 61 REMOVAL/DISASSEMBLY 2. Remove the digital case temperature display just far enough to gain access to the electrical pigtail. 3. Disconnect electrical pigtail. 4. Remove digital case temperature display. Fan Blade/Motor (Typical) Fan Blade (Typical) The fan blade is located on the fan assembly, which includes the fan blade and motor, and is located on the inside, bottom of the case.
  • Page 62 REMOVAL/DISASSEMBLY Fan Motor and Blade — Bottom View WARNING! Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. Failure to disconnect the electrical power may result in personal injury or death. 1. Turn off the power to the case at the AC source/CB panel. 2.

  • Page 63: Thermostat Control

    REMOVAL/DISASSEMBLY 2. Disconnect fan from wiring harness. 3. Remove the four screws securing the fan motor assembly (fan motor with mounting basket) to the case. 4. Slide the fan motor assembly to the right or left, just far enough to allow the fan motor bracket to clear the case.

  • Page 64: Expansion Valve

    REMOVAL/DISASSEMBLY 1. Remove the fluorescent lights located in front of the thermostat control. 2. Disconnect the thermostat control electrical pigtail from the case wiring harness, including probe wiring. 3. Remove thermostat. Thermostat Bulb The associated thermostat bulb is located behind the 4.0 in. hole plug on the left side of the case. To remove the thermostat probe, perform the following: Thermostat Probe Location 1.
  • Page 65 REMOVAL/DISASSEMBLY Expansion Valve Location 1. Remove wire racks and bottom display pans to gain access to the expansion valve. 2. Contact the Kysor//Warren Service Representative for additional information. Electronic Ballasts WARNING! Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.
  • Page 66 REMOVAL/DISASSEMBLY Nose Light Ballast Location 1. Disconnect the electrical power to the merchandiser. 2. Remove the lower front panel by lifting it up and out. 3. Remove screws attaching the raceway cover, then remove the cover. 4. Disconnect light ballast from wiring termination block. 5.

  • Page 67: Fluorescent Lamps

    REMOVAL/DISASSEMBLY 6. Remove light ballast. 7. Service or replace the ballast per the Installation chapter of this manual. Fluorescent Lamps WARNING! Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. Failure to disconnect the electrical power may result in personal injury or death.
  • Page 68 REMOVAL/DISASSEMBLY Modular Electric Defrost Heater These heaters are attached to the front of the modular coils and may be accessed by lifting the fan plenums. Remove the modular electric defrost heater as follows: 1. Disconnect the power to the merchandiser. 2.

  • Page 69: Refrigerant Lines

    INSPECTION This Inspection chapter provides the instructions to follow whenever maintenance is performed on the case. Leakage Inspect components (evaporator coil, expansion valve, filters, etc.), for any signs of leakage. Leakage can be identified by excessive build up of oil around the area that is leaking. If leakage is found, either tighten applicable fittings or remove and replace the components using the documentation for that compressor.

  • Page 70: General Cleaning

    CLEANING General Cleaning General cleaning instructions for the shelves, case, and mirrors are provided in the general cleaning instructions provided in this As a general rule, always use mild soap and water to wipe the case down. Special precautions must be taken when cleaning some components of the case. Because of this, cleaning instructions for specific components of the case are also included in this Shelves and Case...
  • Page 71 CLEANING Do not use a hose or submerge shelves in water. When cleaning lighted shelves, wipe down with a wet sponge or cloth so that water does not enter the light rails. Special care must also be taken to introduce moisture into the openings of the electrical wire-way located on the underside front of the case.
  • Page 72 CLEANING Drain Screens (When Equipped) WARNING! Always shut power off during the cleaning process. Cleaning the case with electrical power applied is a shock hazard that may cause serious injury or death. If the case has been equipped with drain screens, the screens will be located in the drain pans. Remove all foreign matter from drain screens to allow for unobstructed flow of water to the drain.
  • Page 73 REPAIR Damaged Drain Fitting The following procedure is for the field repair of a broken drain fitting. Drain Fitting 1. Use a drill with a 1 7/8" (48 mm) hole saw to drill out the bottom of the drain fitting. Be sure to drill completely through fitting and bottom liner.
  • Page 74 REPAIR 2. Isolate the leak in the coil/evaporator in the identified case by using pressurized air set at no more than 10 psi and a soap and water solution and a brush. Brush the solution over the coil/evaporator until the area that is leaking has been identified. Identify the area that is leaking with a grease pen or by the use of another available marking pen.
  • Page 75 INSTALLATION/ASSEMBLY Note: Use the hardware that was removed during the disassembly of the case. Front Case Location Diagram The following steps are given to properly install the components of the case. Shelf To install the shelf assembly, perform the following: 1.
  • Page 76 INSTALLATION/ASSEMBLY Lower Front Panel Not equipped on these models. Upper Front Panel The upper front panel is installed on the upper, front of the case. The 2500 series and the 3000 series utilize different upper front panels. To install the upper front panel, perform the following 2500 Series Upper Front Panel 1.
  • Page 77 INSTALLATION/ASSEMBLY The canopy panel is located on the top of the D6 cases and should not have been removed for routine maintenance. Removal was not necessary to facilitate maintenance to the canopy. To install the canopy panel, perform the following: 1.
  • Page 78 INSTALLATION/ASSEMBLY Case Trim This paragraph provides the instructions for installing the various case trim located throughout the case and is dependant upon configuration/line up. Kickplate Trim The kickplate trim is located on the front of the kickplate. To install the kickplate trim, perform the following: 1.
  • Page 79 INSTALLATION/ASSEMBLY Rub Rail The rub rail is installed on the front of the tub. To install the rub rail, perform the following: 1. Slide the rub rail into the rub rail retaining slots on the case, ensuring the rub rail is level with the case.
  • Page 80 INSTALLATION/ASSEMBLY 2. Install the analog case temperature display to the case and secure with screws. 3. Perform the system operational checkout procedure located in the Operation chapter of this manual. Digital Case Temperature Display and Probe When equipped with an digital case temperature display, the display is located on the inside, top, front of the case.
  • Page 81 INSTALLATION/ASSEMBLY 1. Connect electrical pigtail. 2. Install the digital case temperature display to the case and secure with screws. 3. Perform the system operational checkout procedure located in the Operation chapter of this manual. Fan Blade/Motor (Typical) Fan Blade (Typical) The fan blade is located on the fan assembly to the motor and is located on the inside, bottom of the case.

  • Page 82: Fan Motor

    INSTALLATION/ASSEMBLY 1. Ensure power to the case is OFF at the AC source/CB panel. 2. Ensure wire racks and bottom display pans have been removed to gain access to the fans. 3. Install fan blade into position. 4. Install the hardware securing the fan blade to the fan motor. 5.
  • Page 83 INSTALLATION/ASSEMBLY 8. Perform the system operational checkout procedure located in the Operation chapter of this manual. Verify that the blade is turning in the right direction. 9. Install wire racks and pans. Thermostat and Thermostat Probe Note: There are several ways to control the case temperature and therefore a case thermostat may or may not be installed.
  • Page 84 INSTALLATION/ASSEMBLY 4. Perform the system operational checkout procedure located in the Operation chapter of this manual. Thermostat Bulb The associated thermostat bulb is located behind the 4.0 in. hole plug on the left side of the case. To install the thermostat probe, perform the following: Thermostat Probe Location 1.
  • Page 85 INSTALLATION/ASSEMBLY . Expansion Valve Location 1. The expansion valve is located below the wire racks and bottom display pans removed in the Disassembly chapter of this manual. 2. Contact the Kysor//Warren Service Representative for additional information. Electronic Ballasts The following procedures give instructions for replacing the nose light ballast or the canopy and shelf lamp ballasts.
  • Page 86 INSTALLATION/ASSEMBLY Nose Light Ballast Location 1. Replace the ballast removed in disassembly. Secure with the hardware provided/kept at disassembly. 2. Connect the light ballast to the wiring termination block. 3. Install the raceway cover and secure with the screws. 4. Install the front panel by pushing it up and then in. 5.
  • Page 87 INSTALLATION/ASSEMBLY Fluorescent Lamps Fluorescent lamps are located under the front rail and on the canopy. Remove the fluorescent lamps as follows: Fluorescent Lamps Location (Under Front Rail Illustrated) Note: Fluorescent lamps are furnished with moisture resistant lamp holders, shields and end caps.
  • Page 88 INSTALLATION/ASSEMBLY Modular Electric Defrost Heater The modular electric defrost heaters (not illustrated) are attached to the front of the modular coils and may be accessed by lifting the fan plenums. Install the modular electric defrost heater as follows: 1. Ensure the access to the area under the wire racks and bottom display pans and below the fan plenums.

  • Page 89: Parts List And Drawings

    PARTS LIST AND DRAWINGS Note: Standard parts are provided in the parts lists. Cases may be equipped with specialty parts that were incorporated into the case(s) at the time they were manufactured. It is important to have the case serial number when contacting Kysor//Warren for replacement parts.
  • Page 90 4 FT 6 FT 8 FT 12 FT (H)(Q)D6(N)(L) - DAIRY STANDARD & NARROW CASES Std Fan Motor 09A10041 09A10040 09A10041 09A10041 (Non-Q and Q only) (Qty: 1) (Qty: 2) (Qty: 2) (Qty: 3) PSC Fan Motor 09A10055 09A10097 09A10055 09A10055 (Non-Q and Q only) (Qty: 1)

  • Page 91: Warranty

    Warranty Rev. 4.1.2009 DIVISION OF KYSOR INDUSTRIAL CORPORATION 5201 Transport Boulevard Columbus, Georgia 31907 706-568-1514 ONE-YEAR WARRANTY KYSOR//WARREN warrants to the original purchaser this new equipment and all parts thereof, to be free from defects in material and workmanship under normal use and service. If any part or parts of the equipment should prove defective during the period of one year from installation date (not to exceed one year and thirty days from the date of original shipment from the factory), KYSOR//WARREN hereby guarantees to replace or repair, without charge (F.O.B.
  • Page 92 5. When this equipment or any part thereof is damaged, or when operation is impaired, due to failure to follow installation manual. 6. NOTE: Proper installation is the responsibility of the installer, owner (end user). 7. Operational issues caused by ambient environmental conditions outside of the specified limits.
