Element14 LCD8000-43T-EX1 Quick Start Manual

LCD8000-43T-EX1 is a TFT-LCD module with a 16/24-bit RGB parallel conversion board. The
conversion board is integrates a TSC2046 chip for touch function and a 3.3V regulation chip with
capability to implement I2C control and PWM backlight control. It supports 16-bit and 24-bit
driving modes for LCD displays, as well as connecting SPI 4-wire resistive touch-screen.
LCD-Ex Expansion Board

Connect the LCD-Ex

Connect the LCD

Connect the Power Supply

Image Update

This product is intended to be used for ENGINEERING DEVELOPMENT, DEMONSTRATION OR EVALUATION
PURPOSES ONLY and is not considered by element14 to be a finished end product fit for general consumer use.
Persons handling the product(s) must have electronics training and observe good engineering practice
standards. The goods being provided are not intended to be complete in terms of required design and/or
manufacturing related protective considerations, including product safety and environmental measures typically
found in end products that incorporate such semiconductor components or circuit boards.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
element14 is a trademark of Premier Farnell plc ©2014 Premier Farnell plc. All Rights Reserved.
LCD8000-43T-EX1 Quick Start Guide

Kit Contents

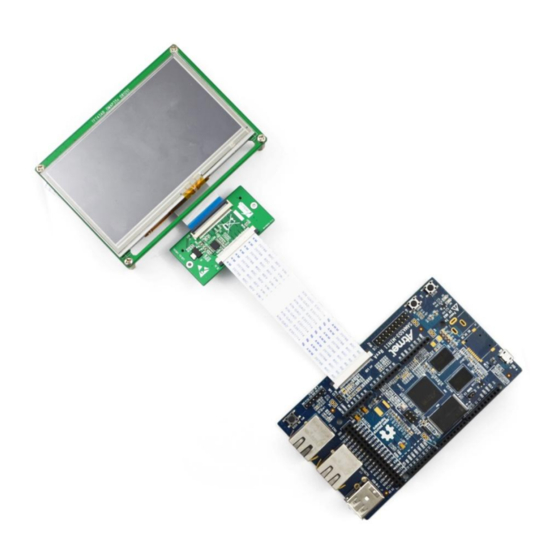

Setting Up the System

Connect the LCD-Ex to the host platform using 50-pin FPC cable. Connect to LCD-
Ex board at the connector pointed to in image above.
Connect the LCD module to the BB View using supplied FPC cable to the 50 pin
LCD connector (keep the blue side of FPC cable UP)
Plug in the power adaptor to the host platform (power supply not included in the
package)
Please refer to User Manuals on how to work with LCD8000-43T-EX1 @
www.element14.com/community/docs/DOC-68483

Disclaimer

4.3" Touchscreen LCD Module with
50-pin FPC Cabe
