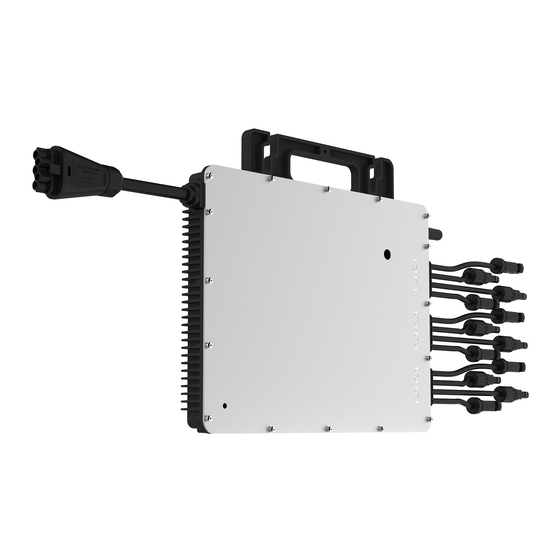

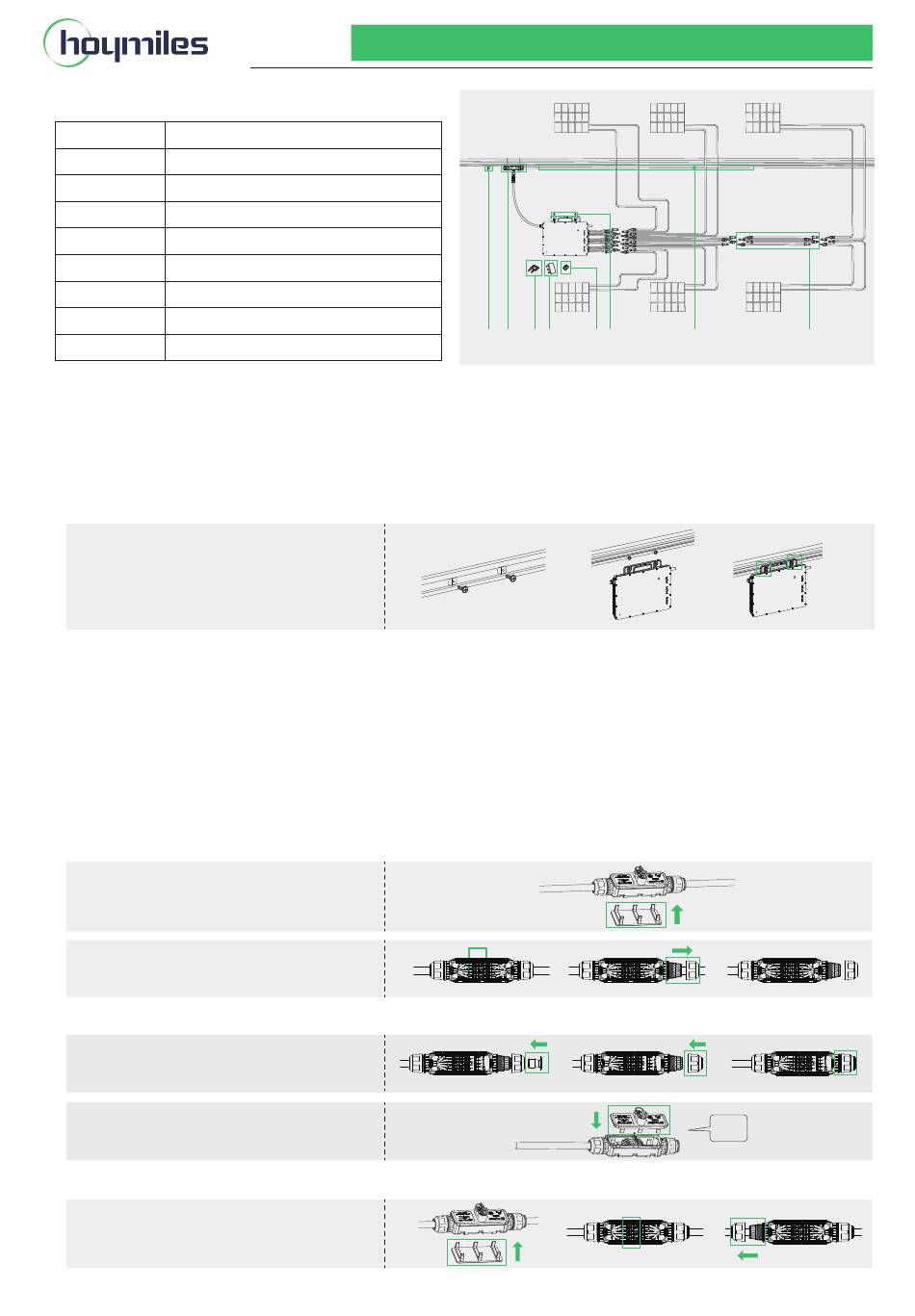

Hoymiles HMT-2250-6T Quick Installation Manual

1. Accessories

Item
A
B
C 3P-AC Trunk Port Disconnect Tool
D 3P-AC Trunk Connector Unlock Tool
E
F M8*25 screws (Prepared by the installer)
G
H 3P-AC Trunk Cable, 12/10 AWG Cable
*Note: All accessories above are not included in the package and should be purchased separately.

2. Installation Steps

The order of Step 1 and Step 2 can be reversed according to your planned needs.

Step 1. Plan and install the Microinverter

A ) Mark the position of each microinverter on the rail, according to the PV module layout.
B ) Fix the screw on the rail.
C ) Hang the microinverter on the
screws, and tighten the screws. The silver
cover side of the microinverter should be
facing the panel.
Note:
1. Install the microinverter and all DC connections under the PV module to avoid direct sunlight, rain exposure, snow buildup, UV, etc.
2. Leave at least 2 cm of space around the microinverter enclosure to ensure ventilation and heat dissipation.
3. Mounting torque of the 8 mm screw should be 9 N·m. Please do not over-torque.

Step 2. Plan and Build the 3P-AC Trunk Cable

3P-AC Trunk Cable is used to connect the microinverter to distribution box.
A ) Determine how many microinverters you plan to install on each AC branch and prepare AC Trunk Connectors
accordingly.
B ) Take out segments of AC Trunk Cable as you need to make AC branch.
1 ) Disassemble the AC Trunk Connector and remove the cable.
- Use the 3P-AC Trunk Connector Unlock Tool
to unlock the connector upper cover.
- Loosen the three screws with screwdriver.
Untighten the cap and remove the cable.
2 ) Install the 3P-AC Trunk End Cap at one side of 3P-AC Trunk Cable (The end of 3P-AC Trunk Cable)
- Insert the 3P-AC Trunk End Cap and screw
the cap back to port, then tighten the cap.
- Plug the upper cover back to the Trunk
connector.
3 ) Install AC end cable on the other side of 3P-AC Trunk Cable (connected to the distribution box)
- Unlock the port upper cover, loosen the screws
with screwdriver and remove the extra cable.
(Skip this step if there is no cable at this side.)
Region: Global AP040390 REV1.1
HMT-2250/1800-6T Quick Installation Guide
Description
3P-AC Trunk End Cap
3P-AC Trunk Connector
3P-AC Trunk Port Cap
DC Extension Cable,1m
© 2020 Hoymiles Power Electronics Inc. All rights reserved.
A B C D E F H G
Mounting Torque : 9 N·m
5.5±0.5N·m
click
01
