Summary of Contents for lifestyle mobility aids KN1100

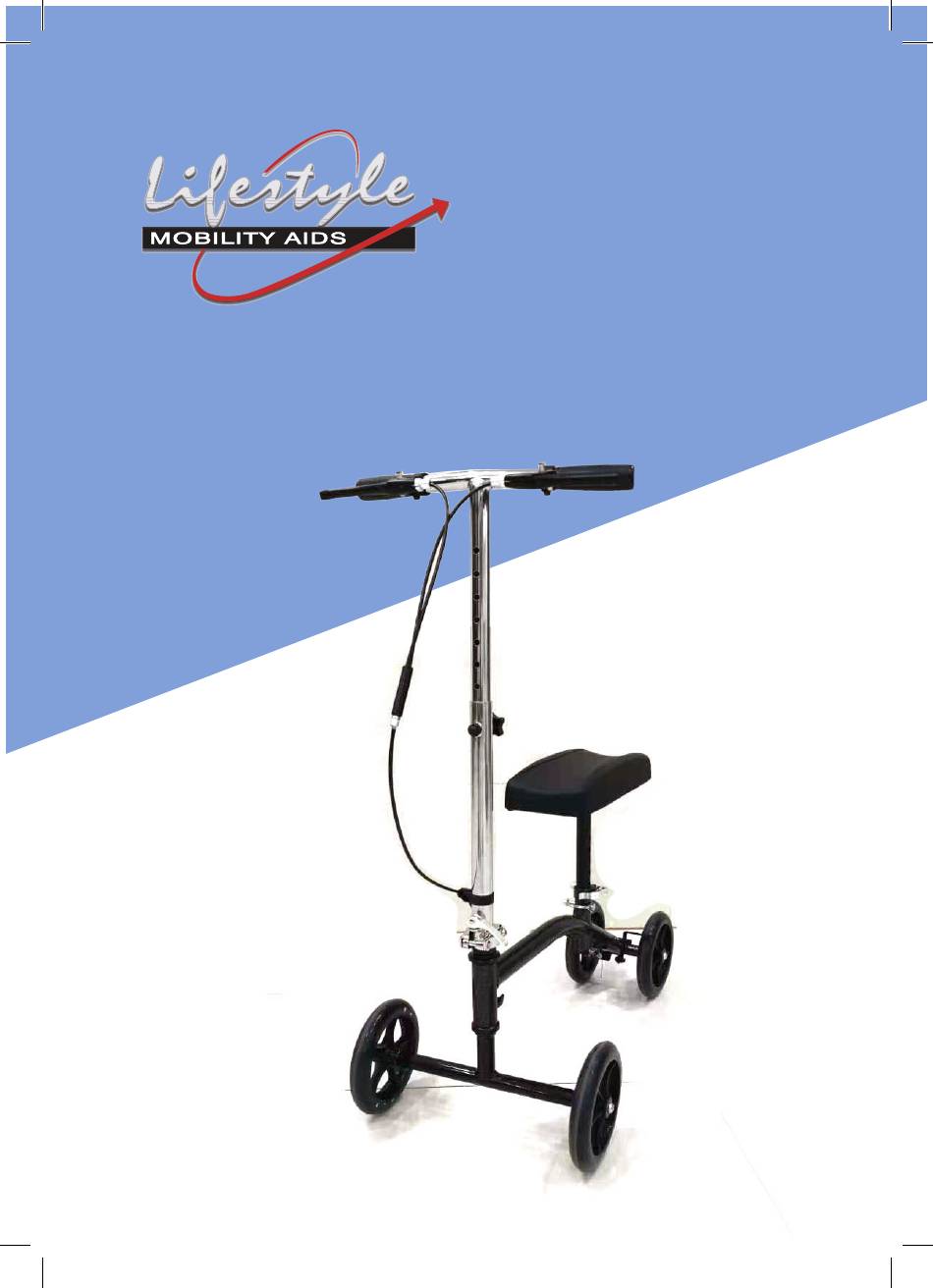

- Page 1 Knee Walker KN1100...
- Page 2 PARTS DIAGRAM...
- Page 3 ASSEMBLY INSTRUCTIONS Disconnect the straps that hold the tiller/handle bar down. Move the handle towards upright position until it snaps into place. Tiller in Upright Position Move camlock across bar until it locks into place. Camlock in locked position...
- Page 4 ADJUSTING KNEE PAD HEIGHT Release the camlock then remove the locking pin. Camlock Locking pin Adjust the seat height for user. Raise the knee pad up or down. Insert locking pin back into place and tighten the knob, making sure it is securely in place.
- Page 5 ENGAGING HAND BRAKE To engage the brakes, squeeze and hold the brake levers on both handles. Lock button Brake lever To lock the brake, follow instructions above. Push and hold the button next to the brake lever. If done properly, the button will remain pushed in and the lever will stay locked. Rear wheels will stay in position when locked.
- Page 6 ADJUSTING HANDLE HEIGHT To adjust the handle height, loosen the knob by turning it to the left until it can be removed. Adjust the hand grip to the desired height and reinstall the adjustment knob by turning it clockwise until it is tightened. Adjustment Knob OPERATING INSTRUCTIONS With brake applied, placement of injured leg on knee pad should be centered side to side...
- Page 7 Mobility Aids Dealers are qualified to assist you in obtaining warranty service. If the product is to be returned to Lifestyle Mobility Aids, prior authorization will be required. In the event of a defect covered by this warranty, Lifestyle Mobility Aids will determine if the product will be repaired or replaced.
- Page 8 Lifestyle Mobility Aids 3200 Tyrone Blvd. N. St. Petersburg, FL 33710 contactus@lifestylemobilityaids.com (877) 843-6464...
