USER MANUAL

DINgate TM

Transparent Modem

any means, electronic, mechanical, photocopying, recording or otherwise, without prior written permission of the publisher.

Table of Contents

Need help?

Do you have a question about the DINgate TM and is the answer not in the manual?

Questions and answers

Summary of Contents for XEMEX DINgate TM

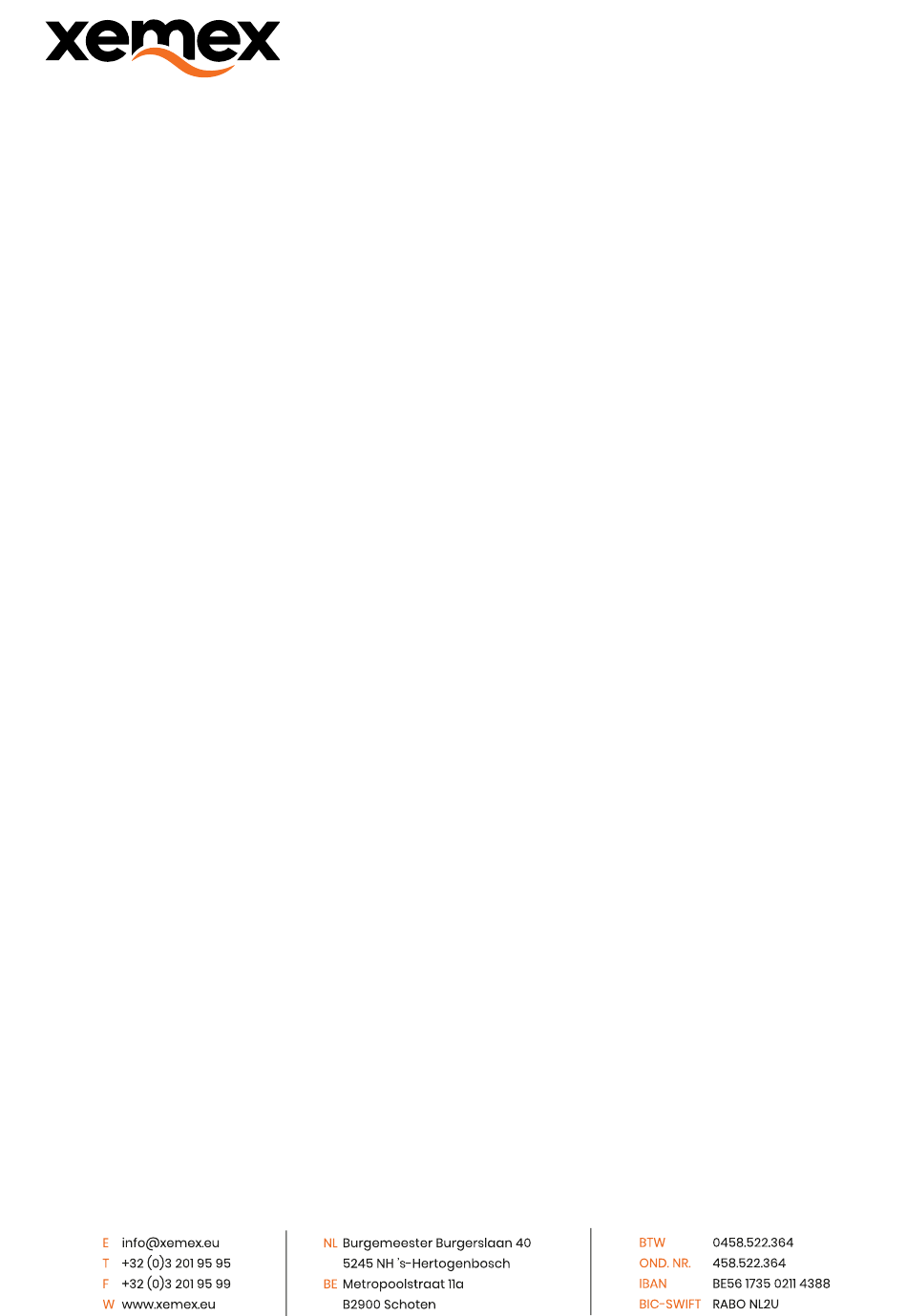

Page 1 USER MANUAL DINgate TM Transparent Modem Copyright © XEMEX All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without prior written permission of the publisher.
Page 2 User Manual - DINgate TM OCUMENT Version: Status: Reviewed Version date: 26/10/2021 Filename: User Manual - DINgate TM.docx Author: Luc Olieslagers Number of pages: ISTORY HANGES VERSION DATE DESCRIPTION 01/10/2021 Draft 13/10/2021 Added configuration 26 October 2021 XEMEX Confidential Page 2 of 20...
Page 3: Table Of Contents
User Manual - DINgate TM ABLE ONTENTS INTRODUCTION ............................5 Scope ................................5 Target group ..............................5 Disclaimer ............................... 5 Applicable product versions ........................... 5 Intended usage ............................... 5 Technical assistance ............................5 Used symbols ..............................5 Safety precautions ............................6 TECHNICAL DESCRIPTION ........................
Page 4 User Manual - DINgate TM WAN – Network Status LED – Green LED ..................... 19 Service button .............................. 19 CLEANING ............................. 20 LIFTING AND CARRYING........................20 MAINTENANCE AND SERVICE ......................20 26 October 2021 XEMEX Confidential Page 4 of 20...
Page 5: Introduction
4G Cat-M communication gateway for ABB B21/B23 E-meters 1.5 Intended usage The DINgate TM module is used to access a 2-wire RS485 bus via a remote IP link. Data is forwarded transparently from the modem to the RS485 interface and vice versa.
Page 6: Safety Precautions
Do not operate the equipment other than indicated by the technical data. Always adhere to the following checklist: 1. Only qualified personnel or licensed electricians should install the Xemex DINgate TM. The mains voltages of 230 Vac can be lethal! 2.
Page 7: Technical Description
230V The DINgate TM gateway module is able to setup a transparent IP link between a server application and an RS485 device connected to the gateway. Data send over LTE is forwarded transparently to the RS485 interface and vice versa.
Page 8: Technical Specifications
= 9600 baud Line setting: 8N1, 8E1, 7E1 default value = 8E1 3.3 IR Interface Optical interface to configure the settings or update the FW of the DINgate TM device via DLMS protocol. Protocol: DLMS Baud rate: 9600 baud...
Page 9: User Interface - Leds
SIM Insert / extract: push / push 3.6 LTE antenna connection The DINgate TM is equipped with an LTE Cat-1 modem with GPRS fallback (DINgate TM 1.0) or an LTE Cat-M modem (DINgate TM 1.1) functionality. The supported frequency bands are: 3.6.1 DINgate TM 1.0...
Page 10 User Manual - DINgate TM Surges: EN 61000-4-5 RF common mode: EN 61000-4-6 Voltage dips: EN 61000-4-11 26 October 2021 XEMEX Confidential Page 10 of 20...
Page 11: Installation Instructions
Failing to obey the ”Guidelines for safety and installation”, the guarantee no longer applies. 4.2 Mounting Mount the device in a DIN rail cabinet. 4.3 Electrical wiring diagram WARNING The DINgate TM module power connection always needs to be protected with a circuit breaker. 26 October 2021 XEMEX Confidential Page 11 of 20...
Page 12: Data Connection Via Rs485
To extract: push the SIM a bit further in the housing until it clicks and then release it to let it spring back. 4.6 LTE Antenna The antenna used to connect to the DINgate TM needs to have an SMA male connector. The supported bands need to correspond with the bands provided by the SIM operator within the available LTE and GPRS bands.
Page 13: Mains Power
To avoid such accidents, make sure to disconnect the power supply before starting the installation. WARNING The DINgate TM module power connection always needs to be protected with a circuit breaker. 26 October 2021 XEMEX Confidential...
Page 14: Configuration
By default the DINgate TM modules are preconfigured in production. Some configuration settings can be changed via the DLMS protocol using specific tooling (remote or local via optical interface). The configuration is described in document “Xemex product configuration via Gurux.docx” and out of scope for this document.
Page 15 User Manual - DINgate TM Configure serial port • Press Advanced button • Fill in settings below Baudrate 9600 8 Data bits, no parity & 1 Stop bit • Click “OK” 26 October 2021 XEMEX Confidential Page 15 of 20...
Page 16 User Manual - DINgate TM Step 2: Read out settings • Expand the “Devices” list (click on + in front of “Devices”) • First, right click “Transparent Modem via Optical Interface” in the Devices list and select “Connect” • Next, right click “Transparent Modem via Optical Interface” in the Devices list and select “Read”...
Page 17: Gurux Gxdlmsdirector - (Remote) Configuration Via Modem Interface
User Manual - DINgate TM 5.3 Gurux GXDLMSDirector - (remote) Configuration via Modem Interface Step 1: Add Transparent Modem device • Open GXDLMSDirector • Right click “Devices” • Select “Add Device” from the popup menu • Fill out the Device Properties for the Transparent Modem Optical Interface and click ”OK”.
Page 18: Basic Configuration Parameters
User Manual - DINgate TM 5.4 Basic configuration parameters 26 October 2021 XEMEX Confidential Page 18 of 20...
Page 19: Operating Instructions
User Manual - DINgate TM 6 Operating instructions The DINgate TM module can setup a remote IP link to a connected RS485 device. The IR supports the industry-standard protocol DLMS-COSEM for configuration purposes. This protocol implements the SMR5 application layer.
Page 20 User Manual - DINgate TM 7 Cleaning Clean the unit with a slightly damp cloth and mild detergent. 8 Lifting and carrying Use care when lifting and carrying the product. 9 Maintenance and Service There are no serviceable parts inside.
