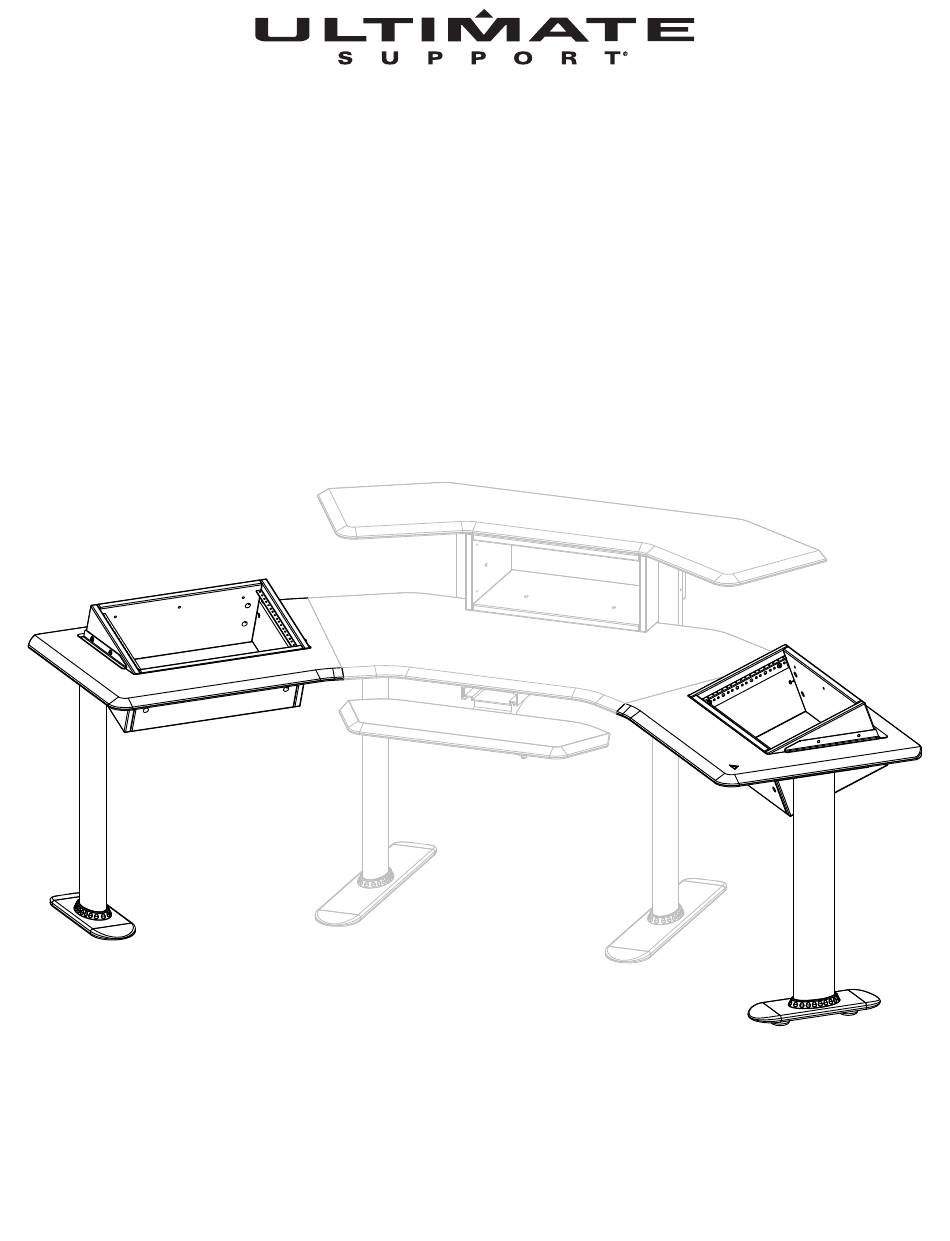

- Page 1 Instructions for Assembling the 24" Extensions Featuring Sunken 6 Space Racks...
- Page 2 Short Rack Mount Bracket - Right Short Rack Mount Bracket - Left Please check to see you have all parts before starting. 970.776.1920 . www.ultimatesupport.com Once all parts are confirmed begin assembly. Copyright 2017, Ultimate Support Systems . All Rights Reserved...
- Page 3 Instructions for Assembling the 24" Extensions Featuring Sunken 6 Space Racks Additional Parts Needed from other boxes - BOX 1, 2 & 8 Assembled core table with legs (Instructions for assembling core table and legs are included in box 1 & 2) 1/4 - 20 x 5/8"...
- Page 4 Lay 24" extension face down with holes facing up. Assembled Place assembled side leg on Side Leg 24" extension and line-up all eight holes. Attached table Pan Head Screws top and side leg together (1/4 - 20 x 5/8") with eight pan head screws (1/4 - 20 x 5/8”).
- Page 5 Cam Pins (4 Per Side Board) Dowel Rods Screw cam pins into top (4 Per Side Board) and bottom of side board. Cam pins screw into inside holes. Next push the dowel rods into top and bottom of side board using the outside holes.
- Page 6 Lay the left side board Right Side Cam Pins & down with the rack rail Board Dowel Rods facing up. Slide the top and bottom board onto dowel rods and cam pins. Cam Locks On top and Bottom boards make sure the cam locks are facing the bottom of Bottom the left side board.
- Page 7 6 Space Rack Cabinet Assembled Place 6 space cabinet through opening on 24” 24" Extension extension. Rack mount Table Top brackets will rest on top of 24" extension table top. Long Rack Mount Bracket Pan Head Screws Secure the 6 space (1/4 - 20 x 5/8") rack cabinet to the 24"...
