Summary of Contents for Chauvet Professional onAir Flex Drive 2

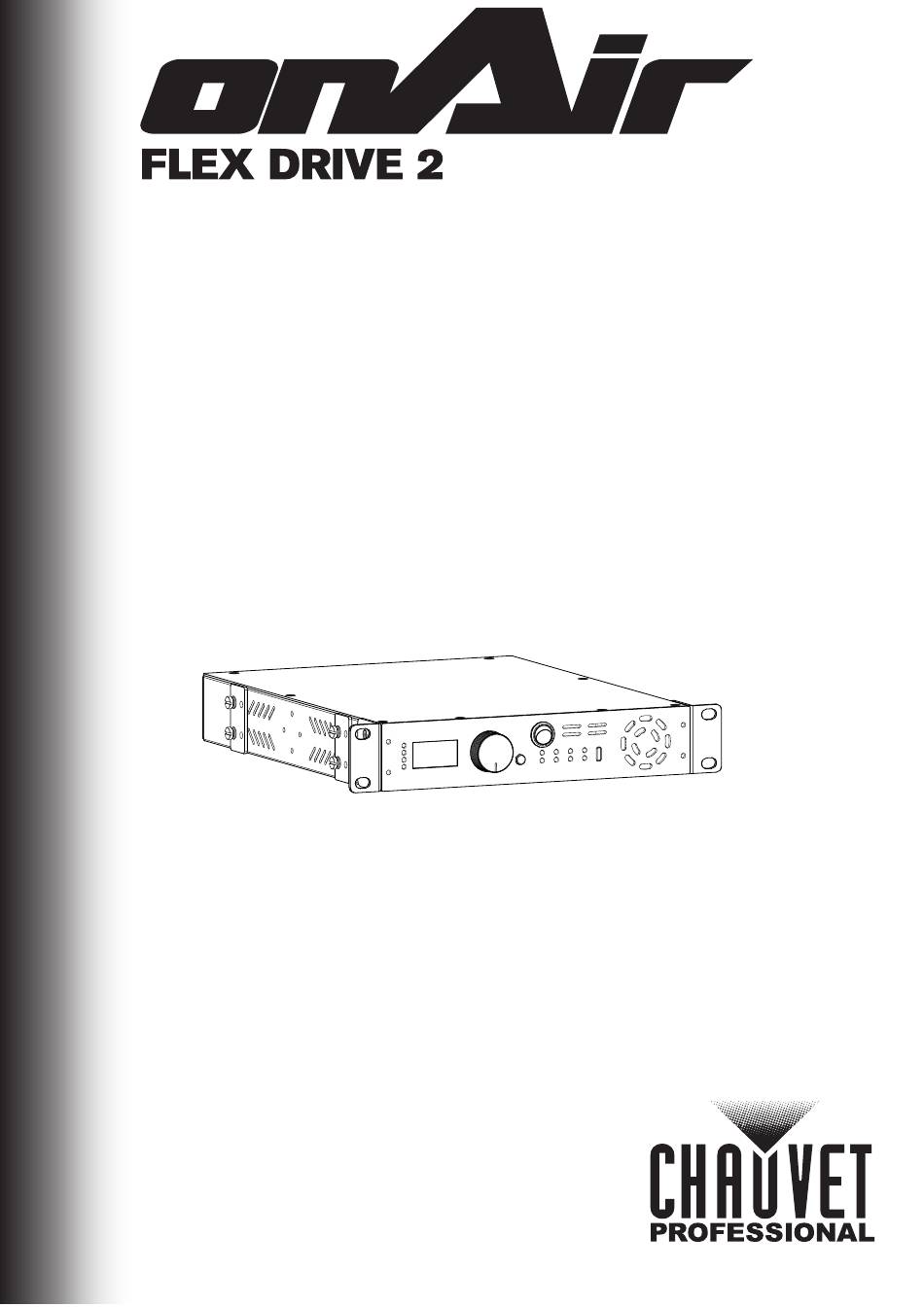

  • Page 1 Quick Reference Guide...

  • Page 2: Safety Notes

    QUICK REFERENCE GUIDE About This Guide The onAir Flex Drive 2 Quick Reference Guide (QRG) has basic product information such as connection and menu options. Download the User Manual from www.chauvetvideo.com for more details. Disclaimer The information and specifications contained in this QRG are subject to change without notice.

  • Page 3: Dmx Connection

    Power Linking You can link up to 7 onAir Flex Drive 2 products at 100 V, 8 products at 120 V, 13 products at 208 V, 14 products at 230 V, or 15 products at 240 V. Never exceed this number. Power linking cords can be purchased separately.

  • Page 4: Product Front Overview

    Blue signal White signal 24 V DC output Output 2 Product Capacity The onAir Flex Drive 2 can support up to 600 quad-color LEDs per output, or up to 1200 quad-color LEDs total. onAir Flex Drive 2 QRG Rev. 1...
  • Page 5 Mounting The onAir Flex Drive 2 comes with 1 long rack ear and 2 short rack ears for mounting 1 or 2 products in a standard 19” rack or for mounting on a wall or other surface. Make sure the mounting surface and hardware are capable of supporting the weight of the product.
  • Page 6 QUICK REFERENCE GUIDE Menu Map Refer to the onAir Flex Drive 2 product page on www.chauvetvideo.com for the latest menu map. Main Level Programming Levels Description Address All 001–512 Sets all addresses in sequence Address Sub1 001–512 Sets Output 1 addresses in sequence Address Sub2 001–512...
  • Page 7 Percent/Setting Red 1 or 2 000  255 0–100% Green 1 or 2 000  255 0–100% Blue 1 or 2 000  255 0–100% White 1 or 2 000  255 0–100% onAir Flex Drive 2 QRG Rev. 1...
  • Page 8 Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. UL 1573 CSA C22.2 No. 166 E113093 onAir Flex Drive 2 QRG Rev. 1...
