S
IMPORTANT
DreamLine
®
reserves the right to alter, modify or redesign products at any time without prior
notice. For the latest up-to-date technical drawings, manuals, warranty information or additional
details please refer to your model's web page on DreamLine.com

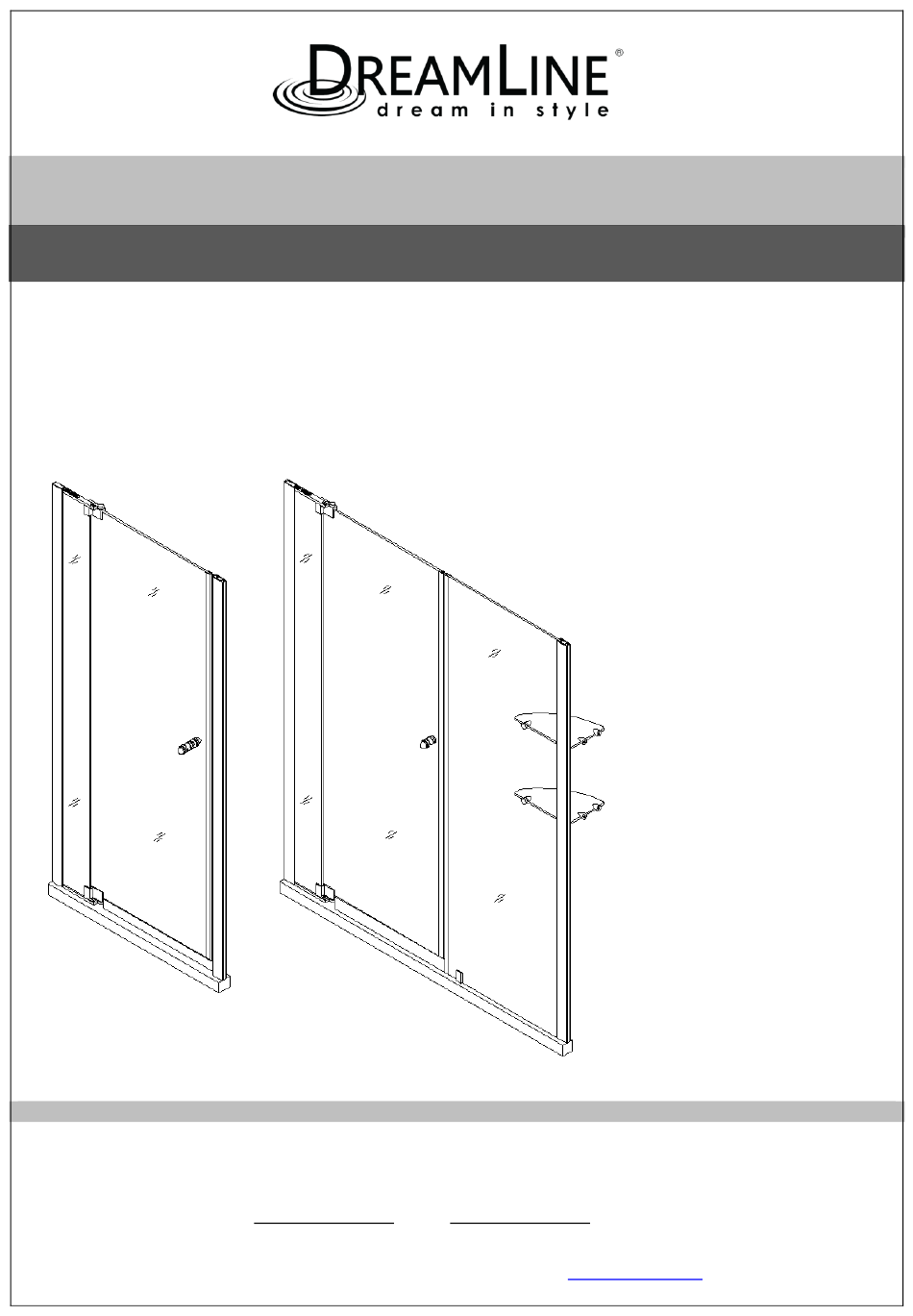

Left hand swing installation shown
Please read these instructions carefully before installing. If you have any questions regarding
installation, please contact our technical support specialists Monday through Friday 8:00 AM –
7:00 PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or e-mail our technical support
group at Support@DreamLine.com
For more information about DreamLine
D
HOWER
OOR
ALLURE
I
NSTALLATION
®
products please visit
I
NSTRUCTIONS
Model #s
SHDR-4230728-01
SHDR-4231728-01
SHDR-4232728-01
SHDR-4233728-01
SHDR-4234728-01
SHDR-4235728-01
SHDR-4236728-01
SHDR-4237728-01
SHDR-4238728-01
SHDR-4239728-01
SHDR-4240728-01
SHDR-4241728-01
SHDR-4242728-01
SHDR-4243728-01
SHDR-4244728-01
SHDR-4245728-01
SHDR-4246728-01
SHDR-4247728-01
SHDR-4248728-01
SHDR-4249728-01
SHDR-4250728-01
SHDR-4251728-01
SHDR-4252728-01
SHDR-4253728-01
SHDR-4254728-01
SHDR-4255728-01
SHDR-4256728-01
SHDR-4257728-01
SHDR-4258728-01
SHDR-4259728-01
SHDR-4260728-01
SHDR-4261728-01
SHDR-4262728-01
SHDR-4263728-01
SHDR-4264728-01
SHDR-4265728-01
SHDR-4266728-01
DreamLine.com
Advertisement
Related Manuals for Dream Line ALLURE SHDR-4230728-01
Summary of Contents for Dream Line ALLURE SHDR-4230728-01
- Page 1 ALLURE HOWER NSTALLATION NSTRUCTIONS IMPORTANT DreamLine ® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com Model #s SHDR-4230728-01 SHDR-4231728-01...
- Page 2 Preparation 1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”.
-
Page 3: Tools Required
NOTE: The installation of this model requires that you drill down into the threshold (see step# 8). Tools Required Drill bit Drill bit Waterproof Phillips Tape Flat Pencil (Ø=5/16") (Ø=1/8") Screwdriver Silicone Measure Screwdriver Caulking Electric Knife Level Hammer Mallet Drill “Allure”... - Page 4 Detailed Diagrams of Shower Door Components Diagram A Diagram B Packing List A Wall profile for small stationary glass Fixing nut with M4×12 screw 1set Glass profile for small stationary glass Socket head screw M6×6 2pcs Small stationary glass Wall anchor 12pcs Glass door Round head screw ST4.2×10...
- Page 5 Shower Door Top View Diagram Top view of left hand single swing door installation Requires 2-1/4” minimum threshold 15/16” NOTE: The strike side wall profile (or panel glass) is offset into the shower from the pivot side by 15/16” “Allure” manual Ver.2 04/2016...
- Page 6 Shower Door Installation 1. Place the Wall profile for small stationary glass (01) on the threshold vertically and align against the finished wall. Adjust the Wall profile for small stationary glass (01) position and level it. Mark the drilling holes on the wall through the predrilled holes in the Wall profile for small stationary glass (01).
- Page 7 3. Apply silicone along the Wall profile for small stationary glass (01) and around the holes. Fasten the Wall profile for small stationary glass (01) and Pivot retainer (08) to the wall with the Round head screws ST4.2×40 (18). See Fig. 3 for details Fig.
- Page 8 5. Attach the Pivot brackets (09) to the top and the bottom end of the assembled Small stationary glass (03) and the Glass profile for small stationary glass (02) with the Flat head screws ST4.2×25 (17). See Fig. 5 for details Fig.
- Page 9 7. Slide the Small stationary glass (03) assembly into the groove of the Wall profile for small stationary glass (01). See Fig. 7 for details. Fig. 7 8. Secure the upper Pivot bracket (09) to the upper Pivot retainer (08) with Socket head screw M6×6 (14). Use a level while adjusting the Small stationary glass (03) vertically and secure it in the place by tightening the Socket head screw M6×6 (14).
- Page 10 9. Attach the top and the bottom Pivot assemblies (12) to the Pivot brackets (09). Make sure the Washer (11) is in between Pivot assemblies (12) and Pivot brackets (09) and the rubber gaskets are between the glass and the metal.
- Page 11 10. Push the Glass profile (05) into the groove of the Wall profile (06) and push the Magnetic strip on jamb (24) into the groove of the Glass Inside profile (05). Close the Glass door (04). Adjust the position of the Glass door (04) and position of the Wall profile (06) on the wall to ensure the Magnetic strips are able to contact each other properly.
- Page 12 12. Mount the Handle (07) onto the Glass door (01). Cut the Bottom anti-water strip (21) to size using a utility knife and attach it onto the bottom of the door glass with the flange facing into the shower. See Fig. 12 for details Fig.
- Page 13 Stationary Glass Installation 14. Apply clear silicone along the inner channel of the Glass profile (05) and push the Stationary glass (25) inside the channel. Push the Magnetic strip (33) on the vertical edge of the Glass door (04). NOTE: If you have difficulty sliding the Glass profile over the Stationary glass (25), you can slightly tap on the Glass profile (05) with a rubber mallet and a piece of wood.
- Page 14 16. Slide the Stationary glass (04) with the Glass profile (05) back into the groove Inside of the Wall profile (06). Re-adjust the Glass door (04) and the Stationary glass (04) panel so that the Magnetic strips (33) are fully aligned. See Fig.
- Page 15 18. After all final adjustments of the Assembled unit are made, drill three holes from inside of Ø1/8” the shower through the first layer of the both the Wall profiles and the Glass profiles using an Ø1/8” drill bit. Inside Inside Secure the Wall profile and the Glass profile together...
- Page 16 Glass shelves installation 20. Mark the Glass shelf (34) position on the wall. 6” According to the measurements in Fig. 20.1, mark the 2” Ø5/16” drilling holes on the wall for the Shelf brackets (26). Drill the holes using a Ø5/16” drill bit and insert the Wall anchors (28).
- Page 17 21. Apply a good quality mildew resistant silicone sealant between the base or threshold and the pivot bracket. Also, apply silicone between the wall and the wall profiles. See Fig. 22 for details. Waterproof Silicone Left hand swing installation Fig. 22 Right hand swing installation Fig.
-
Page 18: Product Maintenance
Product Maintenance BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface. - Page 19 TEL: 866-731-2244 FAX: 866-857-3638 REAM INE.COM For more information on DreamLine ® Shower Doors Enclosures please visit DreamLine.com “Allure” manual Ver.2 04/2016...
