Fast Air
Kills 99.97% of Airborne
Pathogens and Viruses
Sterilisation

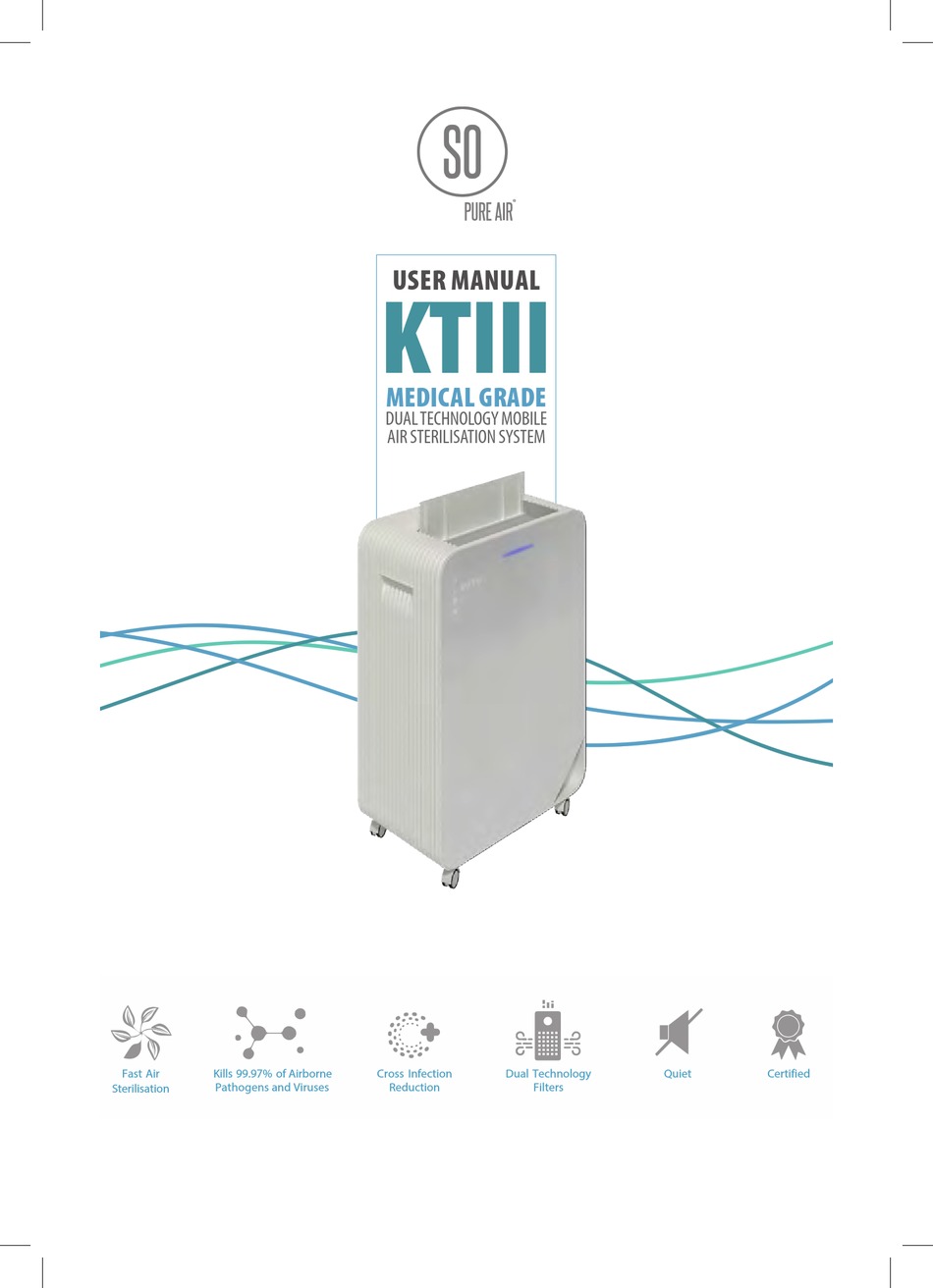

USER MANUAL
KTIII
MEDICAL GRADE
DUAL TECHNOLOGY MOBILE
AIR STERILISATION SYSTEM
I
... . .. .
.
.
�Ii
•••••••
.
.
.
.. ...
.
·.·. .
!?--=
• :
'"
:
Ci-
Cross Infection
Dual Technology
Reduction
Filters
" •
:.-':!
-o
Quiet
�
Certified
Advertisement
Table of Contents
Summary of Contents for so Pure Air KTIII
- Page 1 USER MANUAL KTIII MEDICAL GRADE DUAL TECHNOLOGY MOBILE AIR STERILISATION SYSTEM " • * r: ..�Ii ••••••• ..:.-':! ·.·. . !?--= • : '" � Fast Air Kills 99.97% of Airborne Cross Infection Dual Technology Quiet Certified Pathogens and Viruses...
- Page 2 UPGRADE YOUR WARRANTY Every So Pure KTlIl is supplied with a 2 year warranty against manufacturing defects. You can also obtain a free upgrade to a 5 year warranty by registering the product with So Pure. To obtain the 5 year warranty simply: •...
-
Page 3: Product Introduction
Product Introduction The KTlll Air Steriliser is capable of eliminating PM2.5, dust, dust mites, pollen, bacteria, viruses, methanal, unpleasant odours, smoke and other pollutants effectively. It is equipped with four layers of filters: preliminary air filter, HEPA high efficiency filter, activated carbon filter and photocatalytic filter. These are combined with ultraviolet UV-C lamps that eliminate viruses and bacteria, delivering a total of 5 levels of high efficiency air sterilisation. - Page 4 Filters Characteristics Preliminary air filter: Filters out larger particles such as hair, dirt etc. HEPA high efficiency filter: Filters out dust, pollen, allergens, viruses, bacteria, pollutants and fine particles larger than 0.3µm. III. Activated carbon filter: Filters out hazardous gases such as volatile organic compounds, smoke and unpleasant odours.
-
Page 5: Product Structure
Precautions WARNING Do not touch unit or plug/power Make sure the power is supply cable with wet hands disconnected before cleaning. Only use the power supply cable When operating, the unit must supplied and connect only to a 230V be placed a distance of at least AC mains supply. -
Page 6: Display Panel
Product Structure Tilt protection device Power Power connection connection point point Display Panel WiFi (Tuya App) symbol WiFi (Tuya App) symbol Standby/On Standby/On UV-C lamp symbol UV-C lamp symbol Auto Mode Auto Mode Auto mode symbol Auto mode symbol Four level fan speed indicator Four level fan speed indicator Manual Mode Manual Mode... - Page 7 Explanation of Display Panel The display panel is divided into power button, function button, consumables status display and working status display. Power button and function button display: STANDBY Power button FUNCTION BUTTON Auto Mode No display Manual Mode No display Fast Sterilise Mode No display Standby...
- Page 8 Manual mode status LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 Fast sterilise mode status FAST STERILISE MODE PANEL DISPLAY BUTTON Air Quality Status Indication PM2.5 Air Quality PM2.5 Air Quality Indicator Indicator (PM2.5 = particulate (PM2.5 = particulate matter of diameter matter of diameter <2.5µm) <2.5µm)
- Page 9 Product Placement Requirements When deciding where to place the unit in a room, ensure that at least 20cm clearance is provided at the back of the unit and 30cm clearance at either side, away from walls or other objects. Usage Connecting to the power supply: When using the unit for the first time, remove the power supply cable provided from the packaging.
- Page 10 Touch lightly, the unit will turn on and you will hear a confirmatory ringtone. The power button will turn green and the air outlet cover will open 90 degrees. The unit will default into auto mode. The front panel will display the following symbols: (Auto), (Manual),...
- Page 11 Fast Sterilise: In fast sterilise mode, the unit circulates and sterilises the largest air volume. If the unit is left in Fast Sterilise mode for 80 minutes, it will automatically exit this mode and return to Auto mode. Tip: Under normal circumstances the unit only needs to be operated in Fast Sterilise mode for up to 10 minutes at a time, to work effectively.
-
Page 12: Safety Precautions
Child Lock: Press the child lock button on the remote and the child lock symbol on the panel will illuminate. All other buttons on the remote and all those on the unit will be disabled. Button operation is restored when the child lock button is pressed again to remove the lock. - Page 13 Tuya App Set Up and Operating Instructions MEDICAL GRADE DUAL TECHNOLOGY MOBILE AIR STERILISATION SYSTEM USER MANUAL KTIII...
- Page 14 This device can also be controlled remotely using the TUYA APP. Follow the set up instructions below. Scan the QR code to download or search Launch Tuya Smart and click Log In (click TuyaSmart to download and install the APP. Sign Up first if you don’t have a TUYA account) or Try now (some APP features may not be available without login).
- Page 15 Click Next when the APP has located Input the account and password of the the available devices. WLAN for the device (Ensure the device uses the same network as your phone with the same correct password. ) and click Confirm. Note: This APP only works on 2.4GHz networks.
- Page 16 Sharing APP control of the device with other users. Click the “ ” by the side of the device Click Share Device for device sharing. name in the Settings interface. Click Add Sharing to input the other With Add Successfully the other user user’s account name.
-
Page 17: Repair And Maintenance
Repair and Maintenance Preliminary filter: The cleaning frequency of this filter is determined by the operating speeds of the fan, the level of air pollution and total unit operational time. Under normal circumstances it should be cleaned every 12 months minimum, but where operational hours are high or in dirty atmospheres, it may need to be cleaned every 3-6 months. - Page 18 To prevent raising any accumulated dust from the filter, grasp the two pullers on the preliminary filter and pull out lightly. Gently loosen the tabs from the sockets on the assembly frame on both sides and bottom first, then rotate the filter upwards to remove top tabs from the frame.
- Page 19 Install the filter assembly back into the unit. Rotate the retaining sliders back into the vertical position. Insert the location tags at the bottom of the cover into the corresponding slots on the unit, push down and push top of cover back into position until magnetic catches are fully engaged.
- Page 20 Cleaning of air sensor face plate and laser head of particulate sensor Gently clean the air sensor Lightly clean the sensor face plate using a brush or lens with a cotton bud, after vacuum cleaner head removing face plate Replacement of UV-C lamps: When the UV-C lamps need replacing, the UV-C lamp change indicator on the front panel of the unit flashes.
- Page 21 Cleaning the exterior of the unit: Remove dust, marks or stains with a soft, dry cloth. Do not use any water, cleaning or alcohol based products. Remote control battery replacement: Remove battery cover on the back of the remote by sliding the cover downwards.
-
Page 22: Packing List
Packing List QUANTITY QUANTITY KTlIl air steriliser User manual Power Supply Cable Remote control Products Specifications & Work Environment PRODUCT NAME KTIII Air Volume Working mode 720m Smart sterilisation Plasma 5x10 ions/cm Noise <65dB Input voltage /Rated power 220-240V~ 50/60Hz 100W + 2x 17W(UVC lamp power) Product dimensions (length, Net weight 490x244x729mm... - Page 23 To ensure optimum performance and continued safe operation of this air sterilisation system, the unit must be serviced every 12 months as a minimum. For high use, long operation hours units, we recommend that servicing is carried out more regularly. Servicing includes replacement of all main consumable filters and the UV-C lamps, plus cleaning of the permanent filters and air quality sensor.
- Page 24 Email:sales@sopureair.co.uk sopureair.co.uk REF: KTIII/V5/RA0080...
